Pantum M9106 Series - Page 81

164 pages

To Next Page

To Previous Page

• ADF glass mat in door B1

5. Close the cover.

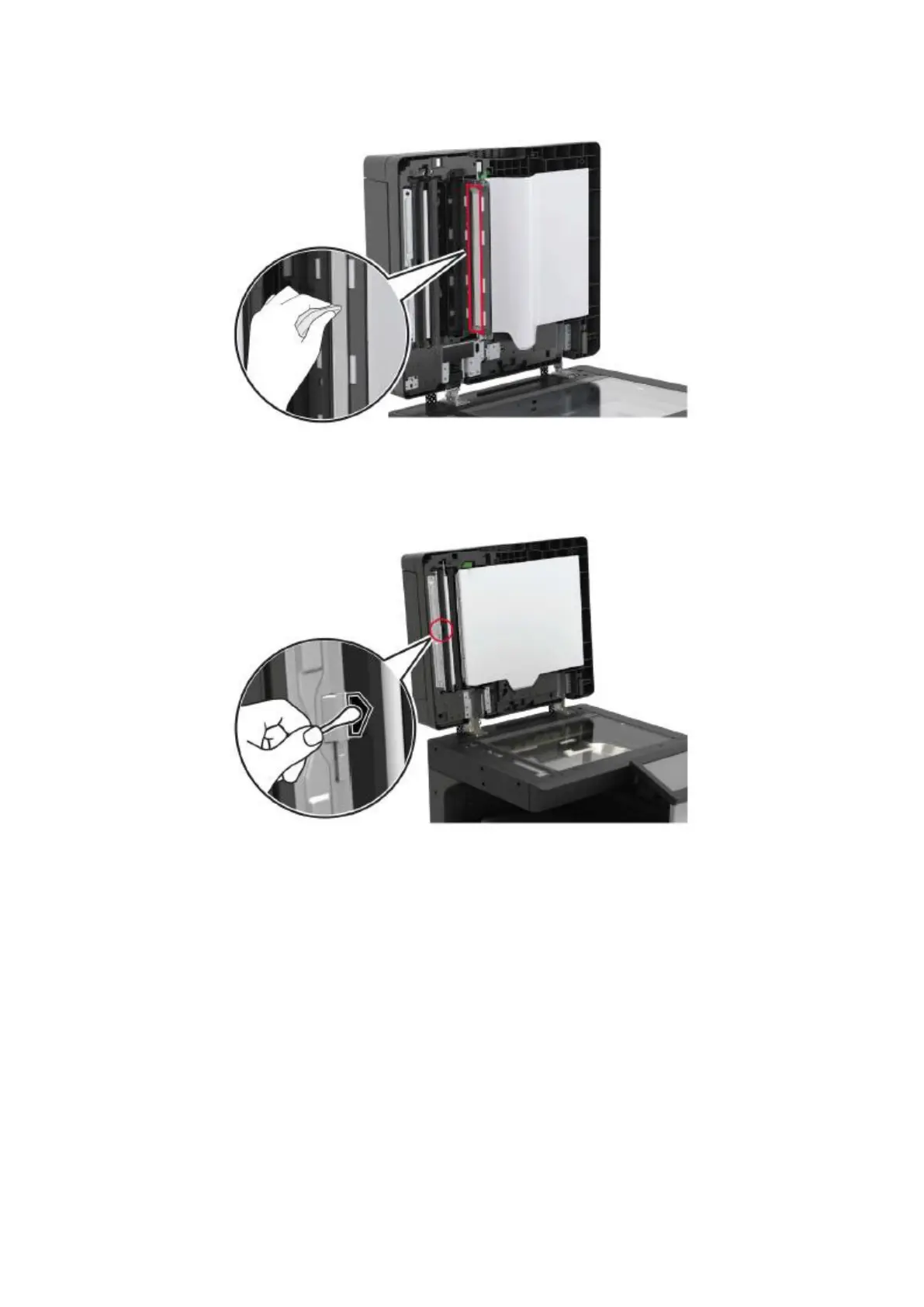

6. Wipe the sensor area with a clean and wet cotton swab.

7. Close the scanner lid.
