Pantum P2500 Series Maintenance Manual

3–4

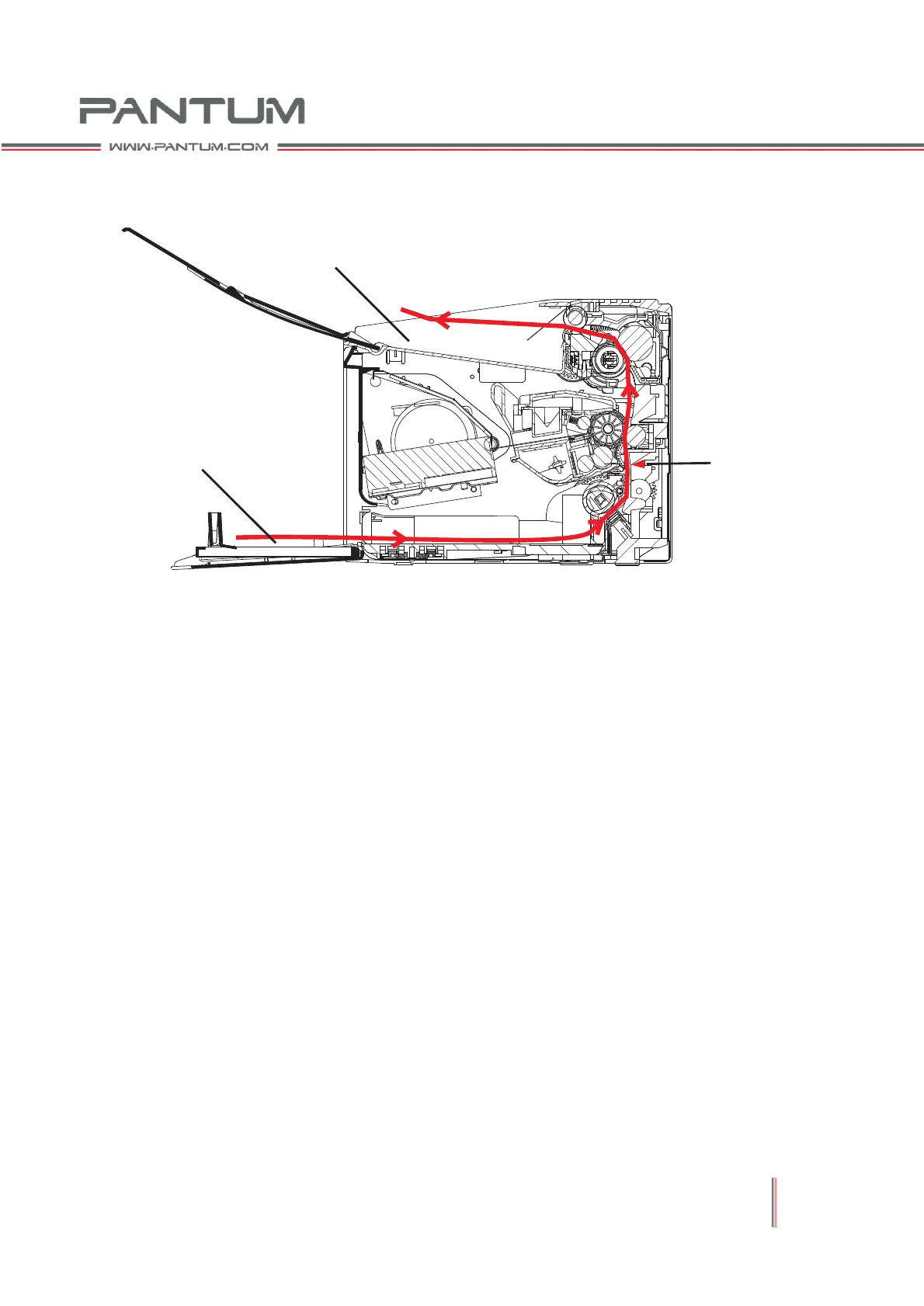

3.3 Feeder Circuit Diagram
This printer uses the "C" type of feeder circuit.
The feeder system consists of the following components:
1. Pickup Roller:
Feeds the paper to the print area through friction.
2. Electromagnet:
Works with the clutch gear to control the movement of the pickup roller.
3. Clutch Gear:
Works with the electromagnet to control the movement of the pickup roller.
4. Separator Component:
Feeds individual sheets through friction.
5. Top of the Page Sensor
Detects whether the paper arrives at the print area within the specified time
range.
6. Damper
Supports the paper before it arrives at the pickup roller and separator.
Output Tray
Feeder tray
Feed Sensor

Pantum P2500 Series Specifications

General

Print Technology	Monochrome Laser
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	15, 000 pages
Input Capacity	150 sheets
Output Capacity	100 sheets
Connectivity	USB 2.0
Dimensions	337 x 220 x 178 mm
Processor Speed	600 MHz
Memory	128 MB
Print Speed	22 ppm (A4)
First Print Out Time	Less than 7.8s
Operating System Support	Windows, Mac, Linux
Media Sizes	A4, A5, A6, Letter, Legal, Executive
Media Types	Plain, Thick, Cardstock, Label, Envelope, Thin
Media Weight	60 - 163 g/m²
