Pantum P2500 Series Maintenance Manual

4–14

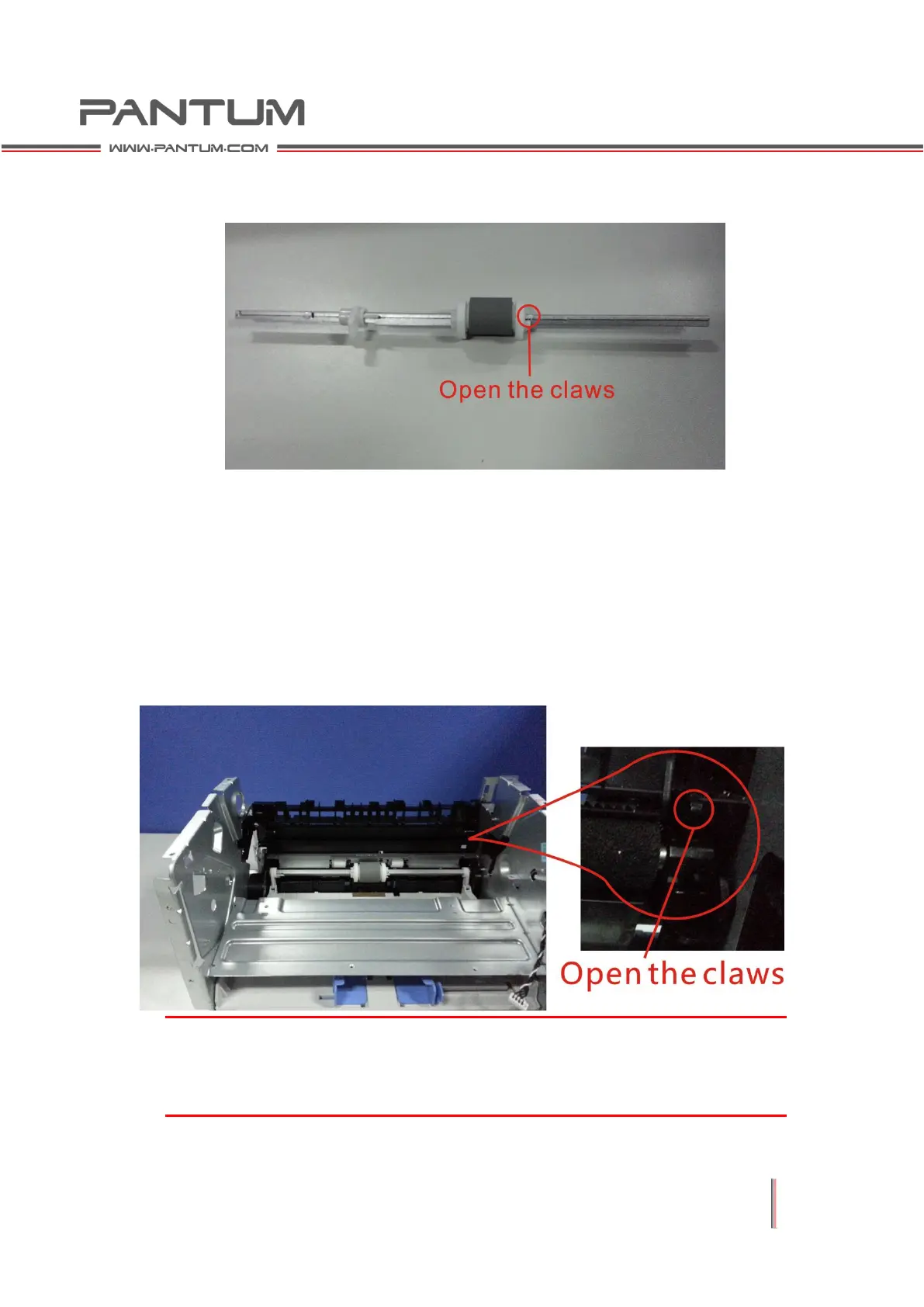

2. Open the jaw on the pickup roller, and remove it by pulling it in the direction
opposite to the cam.
4.3.12 Separator Component
When you have removed the pickup roller, remove the separator component.
Take caution to protect the spring from falling.
4.3.13 Transfer Roller
Open the claw as shown below, remove the bearing of the transfer roller and
remove the transfer roller.
Note:
When you remove the transfer roller, do not touch the transfer roller sponge to
avoid causing printing abnormalities.

Pantum P2500 Series Specifications

General

Print Technology	Monochrome Laser
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	15, 000 pages
Input Capacity	150 sheets
Output Capacity	100 sheets
Connectivity	USB 2.0
Dimensions	337 x 220 x 178 mm
Processor Speed	600 MHz
Memory	128 MB
Print Speed	22 ppm (A4)
First Print Out Time	Less than 7.8s
Operating System Support	Windows, Mac, Linux
Media Sizes	A4, A5, A6, Letter, Legal, Executive
Media Types	Plain, Thick, Cardstock, Label, Envelope, Thin
Media Weight	60 - 163 g/m²
