Pantum P2500 Series Maintenance Manual

3–6

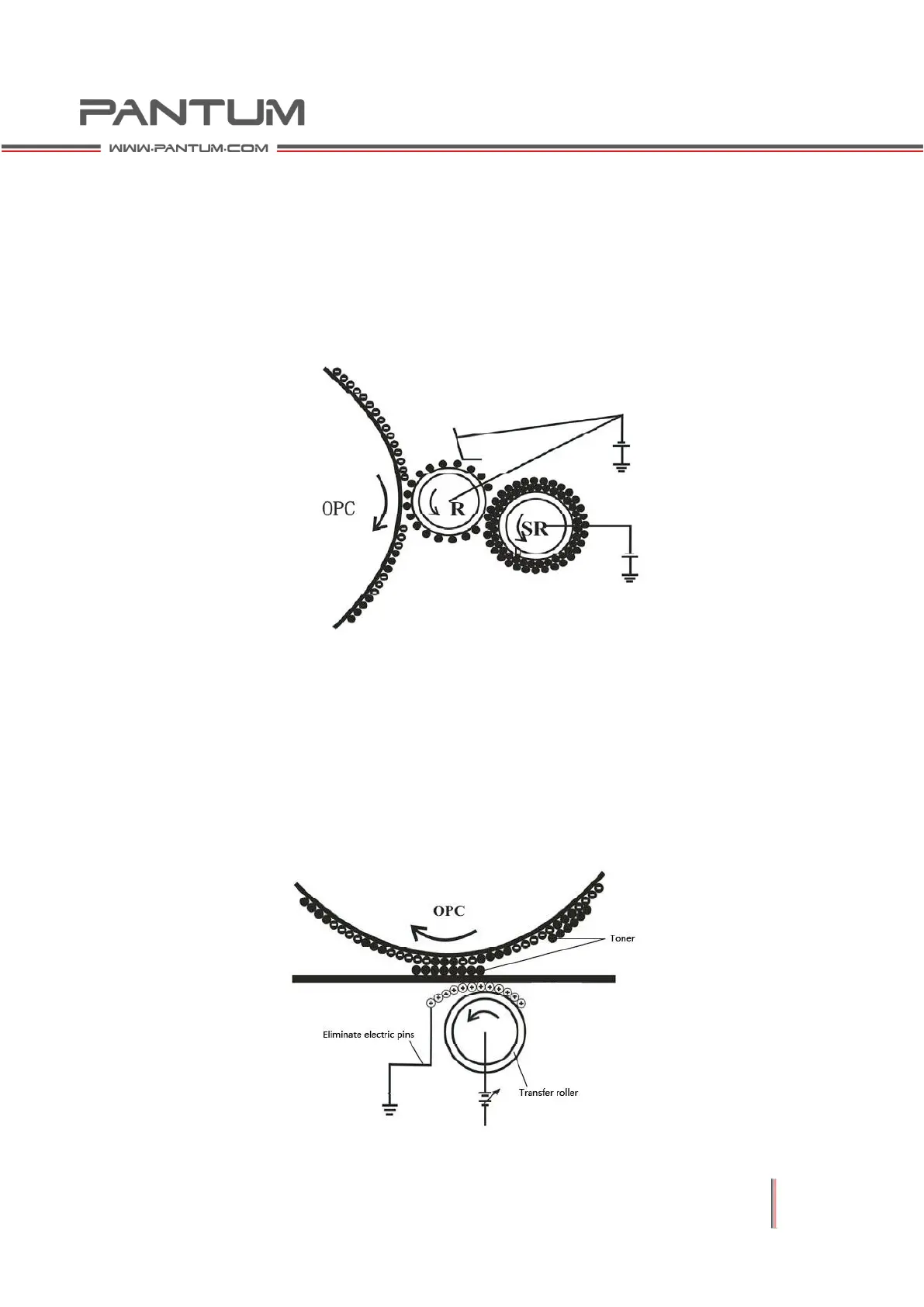

3.4.3 Development
When the toner has been moved through under friction between the Developing
Roller (DR) and Supply Roller (SR), the surface of the Developing Roller will be
covered with a layer of charged toner. After exposure, as the OPC goes through
the DR, it will transmit the developing voltage to the DR. This voltage is greater
than that of the exposed portion of the OPC and less than that of the unexposed
portion. Toner will be attracted to the exposed area of the OPC due to the
electrostatic field between the OPC and DR, and a visible image will form.
3.4.4 Print Transfer
When the paper moves through the interlayer between the Transfer Roller (TR) and
the photosensitive drum (OPC), the TR will gain high pressure opposite to the toner
charge polarity. The toner will therefore be affected by the TR's electrical field,
transferring toner to the surface of the paper. After moving through the TR, the
back of the paper is positively charged. This causes the toner, separated by the OPC,
to be attracted to the paper until the next stage. There is also an anti-static needle
to discharge extra charge that may be produced throughout the process by the
electric field and the friction of the paper and the toner.

Pantum P2500 Series Specifications

General

Print Technology	Monochrome Laser
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	15, 000 pages
Input Capacity	150 sheets
Output Capacity	100 sheets
Connectivity	USB 2.0
Dimensions	337 x 220 x 178 mm
Processor Speed	600 MHz
Memory	128 MB
Print Speed	22 ppm (A4)
First Print Out Time	Less than 7.8s
Operating System Support	Windows, Mac, Linux
Media Sizes	A4, A5, A6, Letter, Legal, Executive
Media Types	Plain, Thick, Cardstock, Label, Envelope, Thin
Media Weight	60 - 163 g/m²
