4.3.3 Master Board

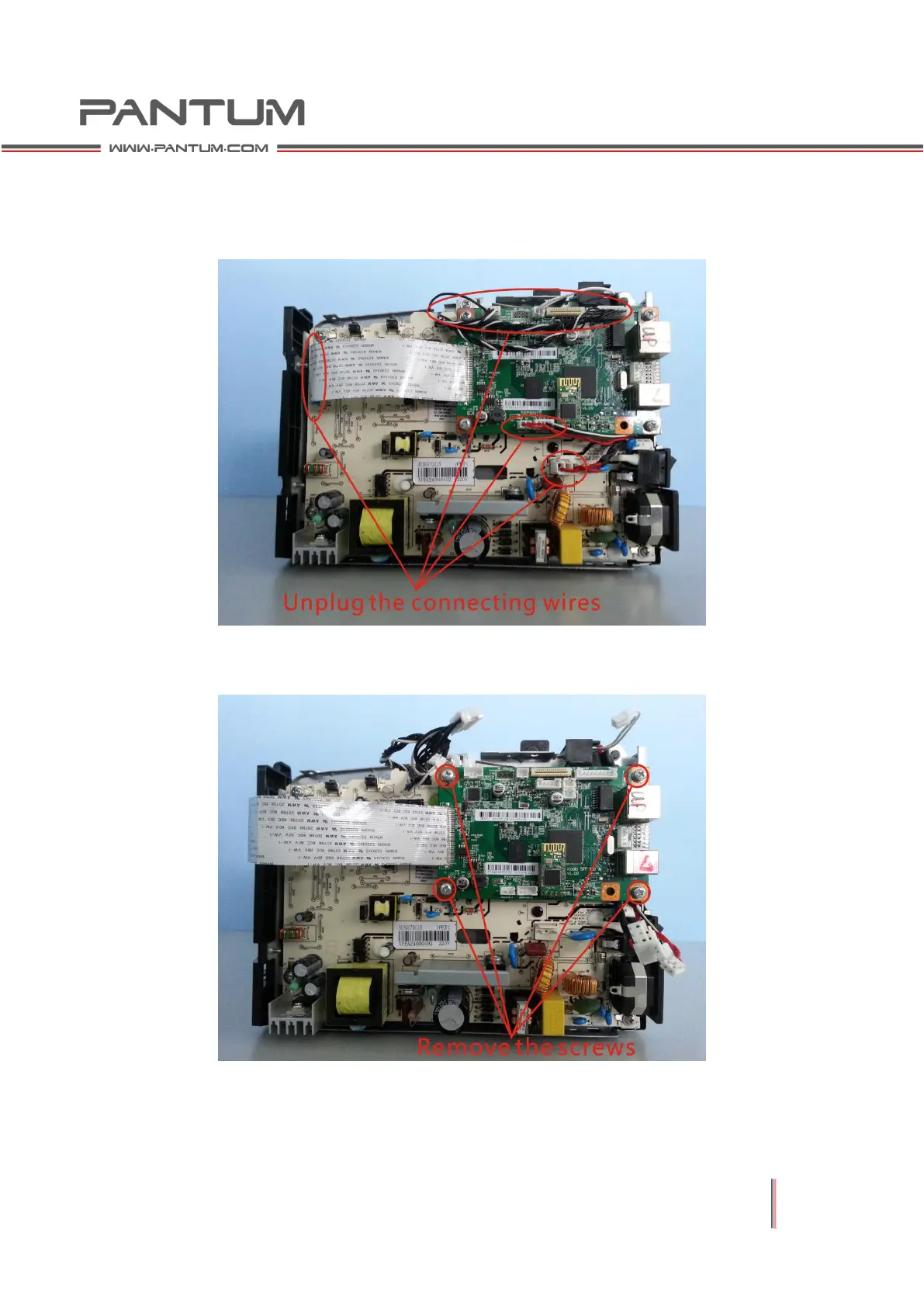

1. Remove the exterior components and unplug the baseplate cable.

2. Remove the screws as shown below, and remove the master board.
