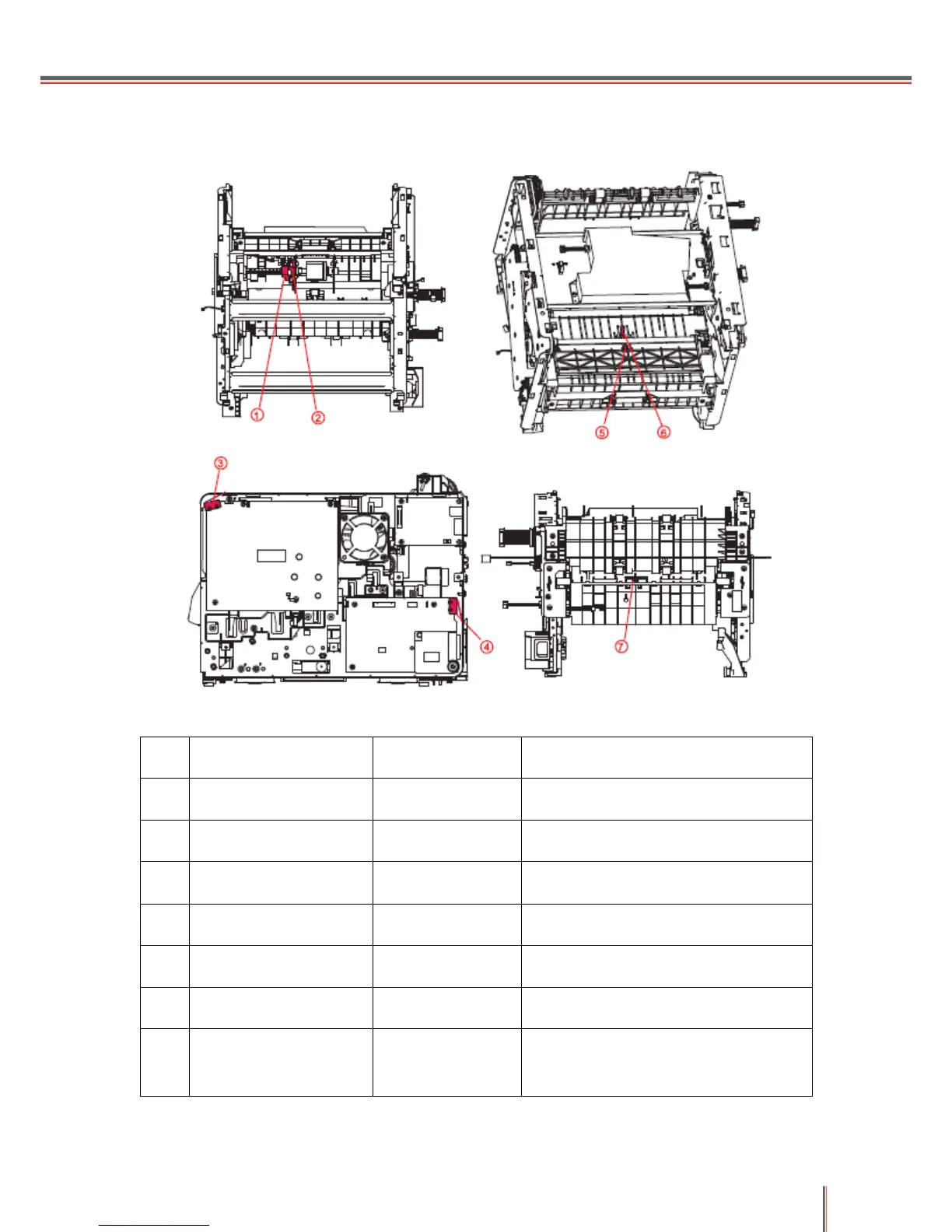

3.6 Sensor
No.
Name
Type
Location
1
Paper Presence Sensor
optical sensor
On the left of pickup roller
2
Paper-end Sensor
optical sensor
On the left of pickup roller
3
Front Cover Switch
mechanical switch
Over engine board left side
4
Rear Cover Switch
mechanical switch
Over power board right side
5
Correction Sensor
optical sensor
In front of correction Axis
6
Paper Feed Sensor
optical sensor
In back of correction Axis
7
Paper Exit Sensor
optical sensor
Fixing paper guide (In the back of fuser
component)
