Pantum P3000 Series - Image Defects

4-18

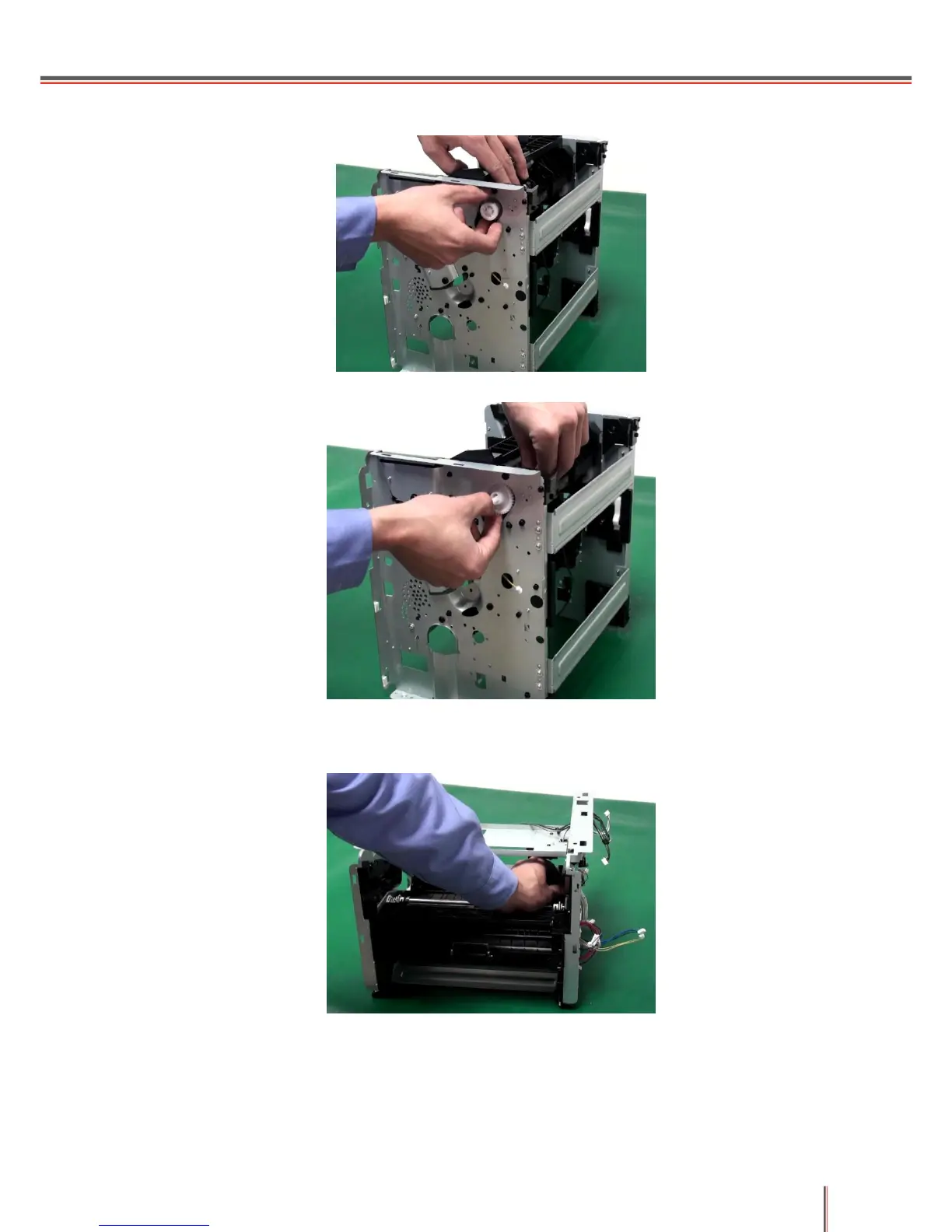

3. Remove the clutch gear bushing and spring.
4. Move the feed clutch axis and remove the clutch gear.
4.3.20 Transfer Roller
Loosen the bearing claws on both sides of the transfer roller and remove the transfer roller.
