4-15

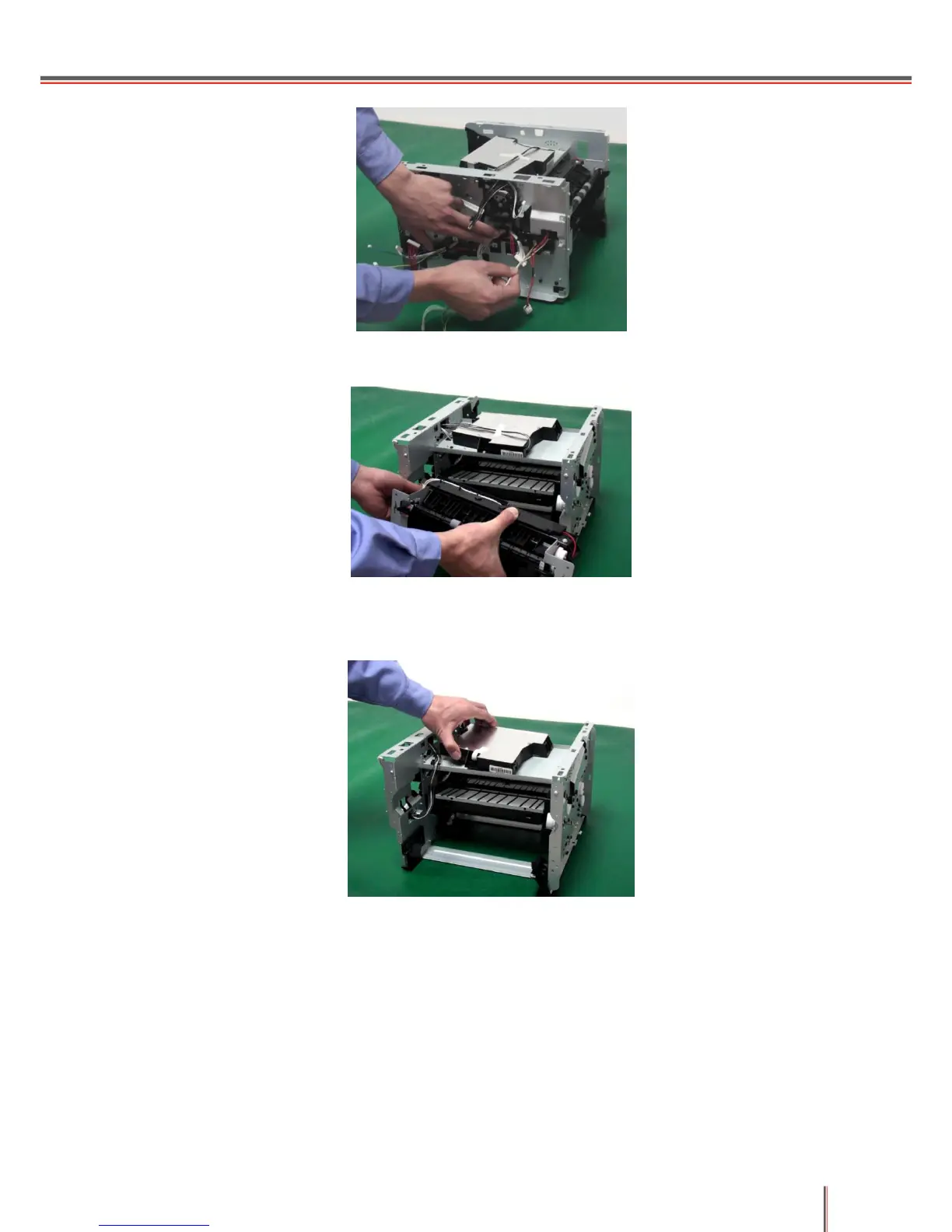

2. Unscrew the retaining screws (one on each side, 4 on the back, totaling 6) and remove the
fuser component.
4.3.15 Laser Scanning Unit (LSU)
Unplug the connecting wires from the LSU, unscrew the retaining screws, and remove the LSU.
4.3.16 Motor
1. Push the fixed claw fittings on the motor’s protective cover and remove the protective cover.
