4-13
4.3.11 Gear Assembly

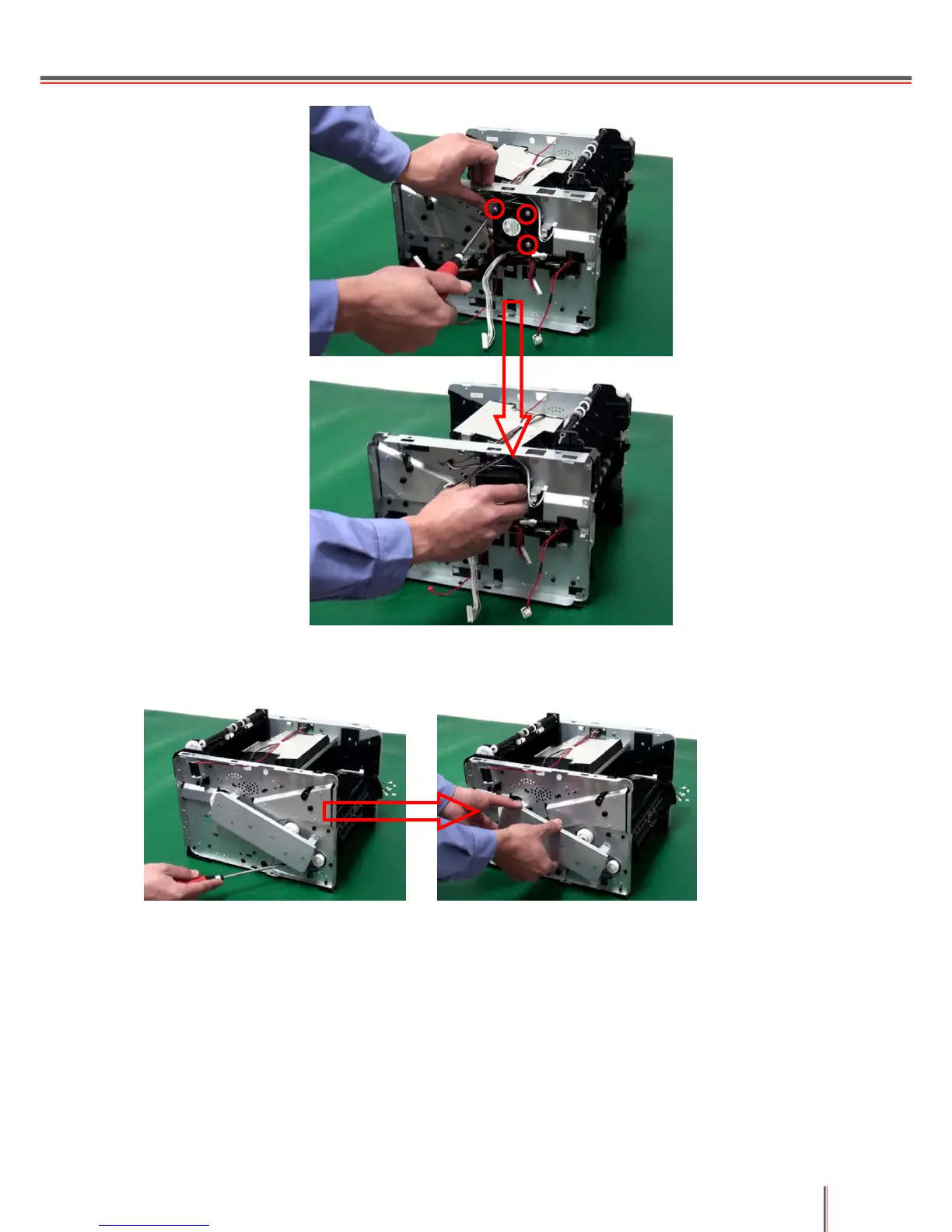

Unscrew the five retaining screws and remove the drive system.
4.3.12 Electromagnet
4.3.12.1 Electromagnet 1 (Feed)
Unplug the connecting wires from the electromagnet, unscrew the retaining screws, and remove
the electromagnet.
