Paradox Digiplex V2.14 User Manual

6
PROGRAMMING GUIDE

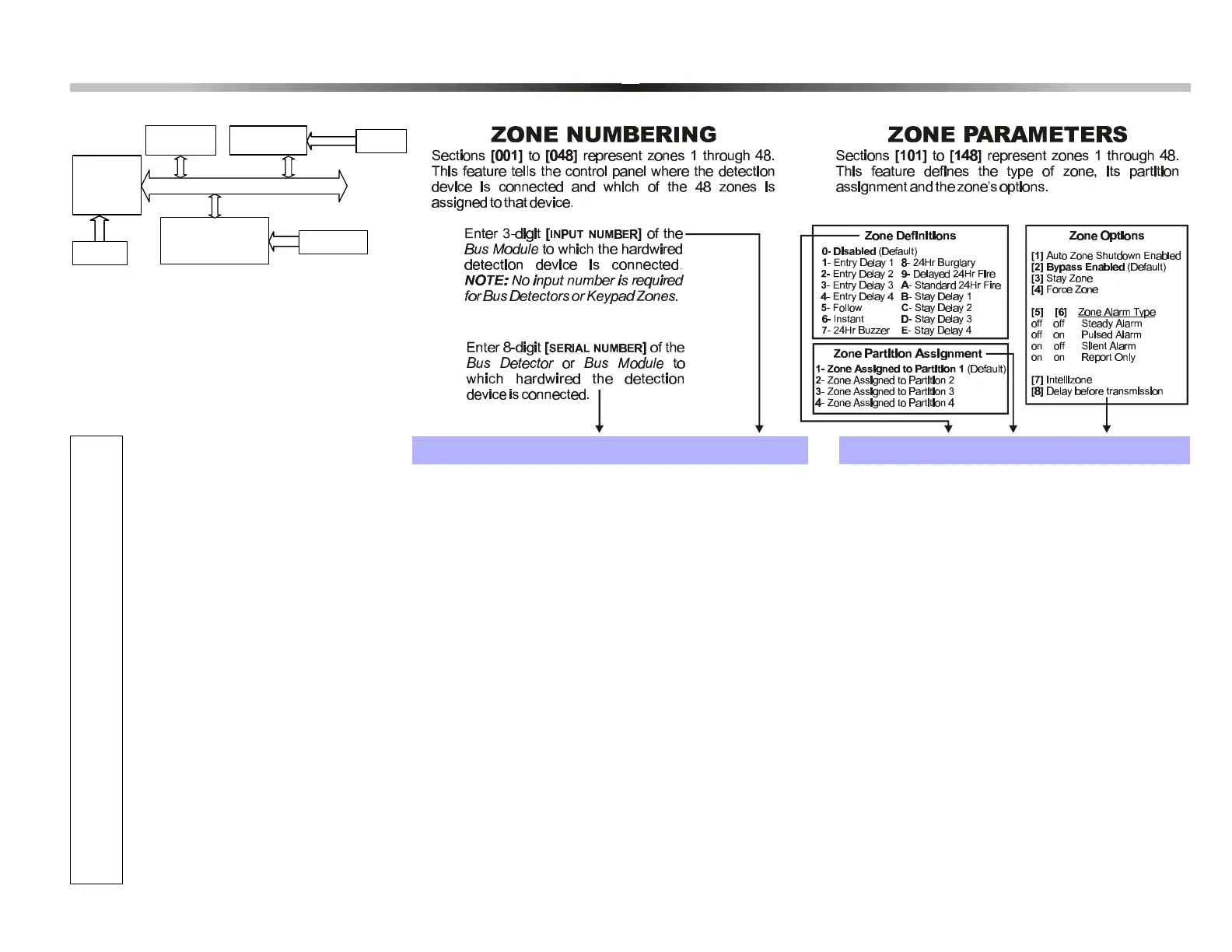

Zone Programming
\Zone Description Module Section 8-digit Serial Number Input# Section Def. Ass. Zone Options
1 ________________ __________ [001] __/__/__/__/__/__/__/__ __/__/__ [101] ___ ___ 1 2 3 4 5 6 7 8
2 ________________ __________ [002] __/__/__/__/__/__/__/__ __/__/__ [102] ___ ___ 1 2 3 4 5 6 7 8
3 ________________ __________ [003] __/__/__/__/__/__/__/__ __/__/__ [103] ___ ___ 1 2 3 4 5 6 7 8
4 ________________ __________ [004] __/__/__/__/__/__/__/__ __/__/__ [104] ___ ___ 1 2 3 4 5 6 7 8
5 ________________ __________ [005] __/__/__/__/__/__/__/__ __/__/__ [105] ___ ___ 1 2 3 4 5 6 7 8
6 ________________ __________ [006] __/__/__/__/__/__/__/__ __/__/__ [106] ___ ___ 1 2 3 4 5 6 7 8
7 ________________ __________ [007] __/__/__/__/__/__/__/__ __/__/__ [107] ___ ___ 1 2 3 4 5 6 7 8
8 ________________ __________ [008] __/__/__/__/__/__/__/__ __/__/__ [108] ___ ___ 1 2 3 4 5 6 7 8
9 ________________ __________ [009] __/__/__/__/__/__/__/__ __/__/__ [109] ___ ___ 1 2 3 4 5 6 7 8
10 ________________ __________ [010] __/__/__/__/__/__/__/__ __/__/__ [110] ___ ___ 1 2 3 4 5 6 7 8
Input 2
Hardwired
Device B
Digiplex
Control Panel
SN#:
000000A2
ZX8 Module
SN#: 30000041
Input 5
Bus Detector A
SN#: 21000033
B US
Input Terminals
1 2 3 4
Input Terminals
1 2 3 4 5 6 7 8
Bus Detector A:
Hardwired Device A:
Hardwired Device B:
Hardwired Device C:
Zone#
1 =
2 =
3 =
4 =
Section#
[001]
[002]
[003]
[004]
Serial#
21000033
11000252
000000A2
30000041
Input#
N/A
N/A
002
005
Digiplex Keypad
SN#: 110000252
Keypad Zone
Hardwired
Device C
Hardwired
Device A
