Esprit Keypads 3
keypad is connected to a 738ULT, during an alarm,
the [
STAY] and/or [AWAY] keys will stop flashing

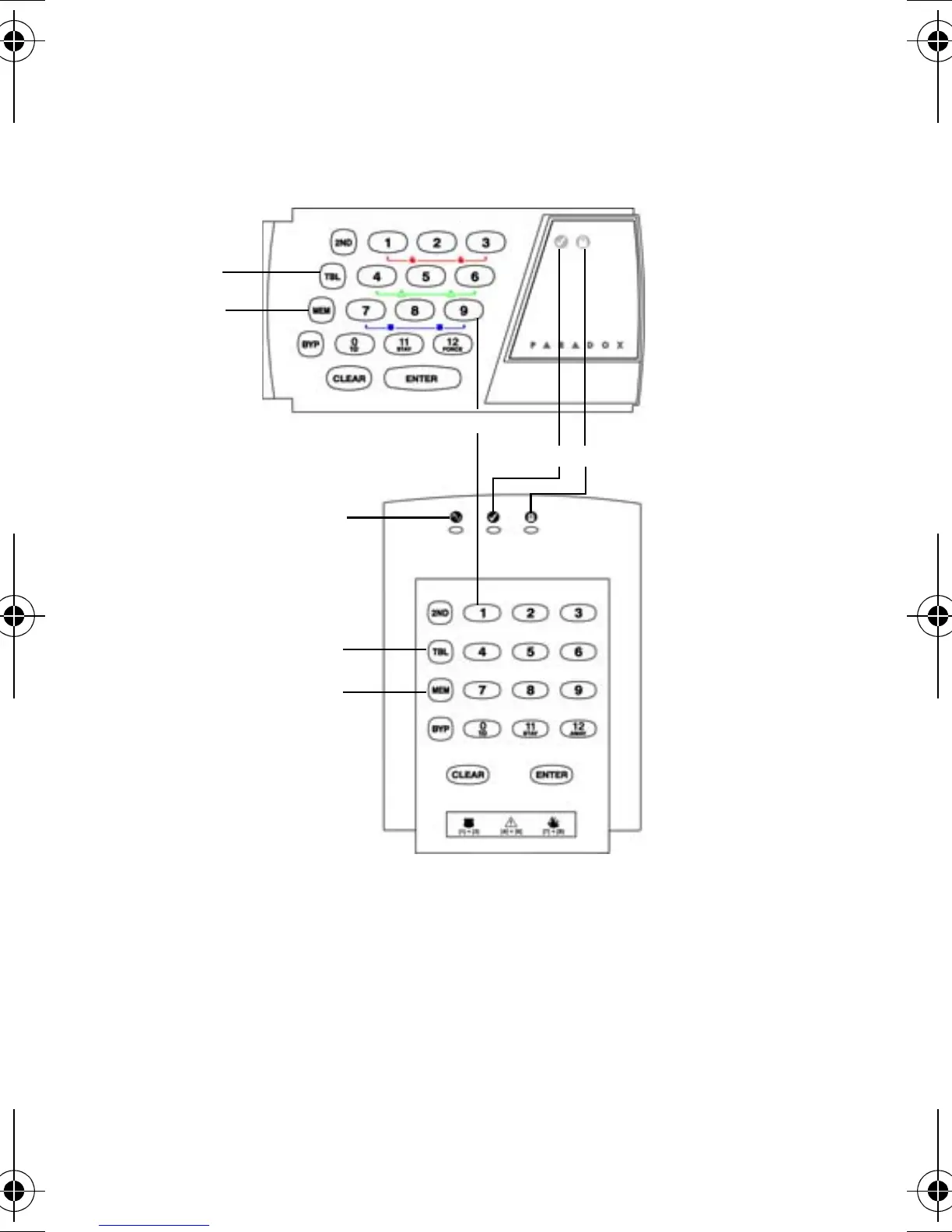

Figure 1: Overview of the 636 & 646 Keypads
Green READY Light:
ON = All zones closed
OFF = Zone(s) open
Red ARMED Light:
ON = System Armed
Trouble Display
ON = Trouble(s) occurring
Alarm Memory Display
ON = Alarm(s) occurred
A
B
C
D
E
F
24-zone Display
Zone Keys (Keys 1 to 12):
ON = Zone open or breached
Flashing = System went into
alarm and breached zone will
flash
Orange AC Light (646 only):
ON = AC power is present
OFF = Power failure
AB
F
D
C
636
646
E
C
D
