DigiplexNE Grafica Keypad Module 3n
1.1 SPECIFICATIONS
Power input: Typically 12 to 16 Vdc, 130mA maximum.
Power indication: Blue LED on.
Locate indication: Blue LED flashes.
Bus fault indication: Fault indication message will appear on
screen.
Anti-tamper switch: Yes.
Display: Film Super Twisted Nematic.
(Black and white contrast). 128 X 128 pixels.
Under ESD conditions the screen may go
blank. To reset the screen press any key.
Compatibility: DigiplexNE version 1.3 or higher.
Winload version 2.2 or higher.
NEware Version 2.0.
1.2 NAVIGATION
Grafica’s three action keys represent selections that appear directly
above the key on the screen. They enable you to move forward/back,
toggle the status of options and save choices. The scroll keys enable
you to highlight and select options throughout the various menus.

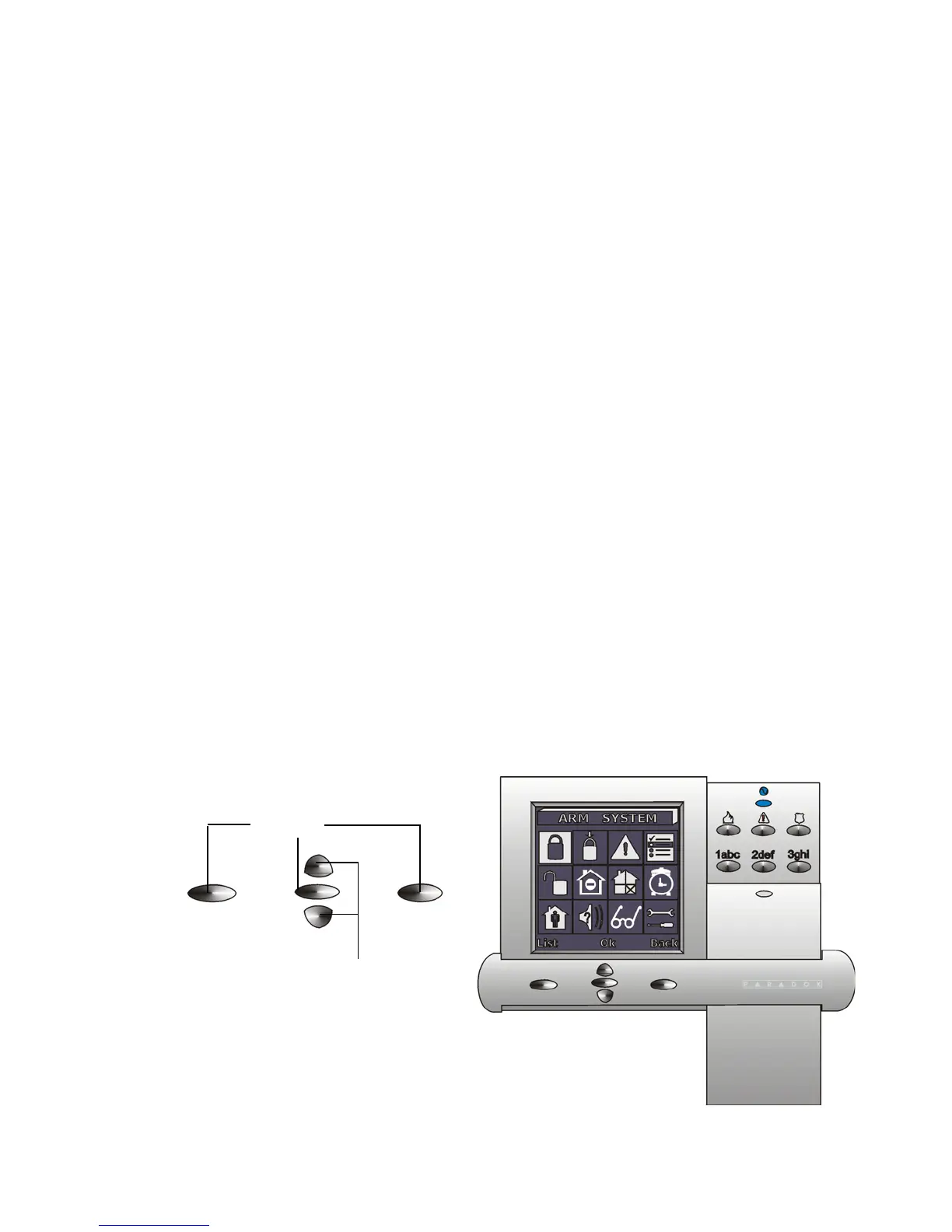

Figure 1: Key Overview
Action
Keys
Scroll
Keys
