6 Reference & Installation Manual

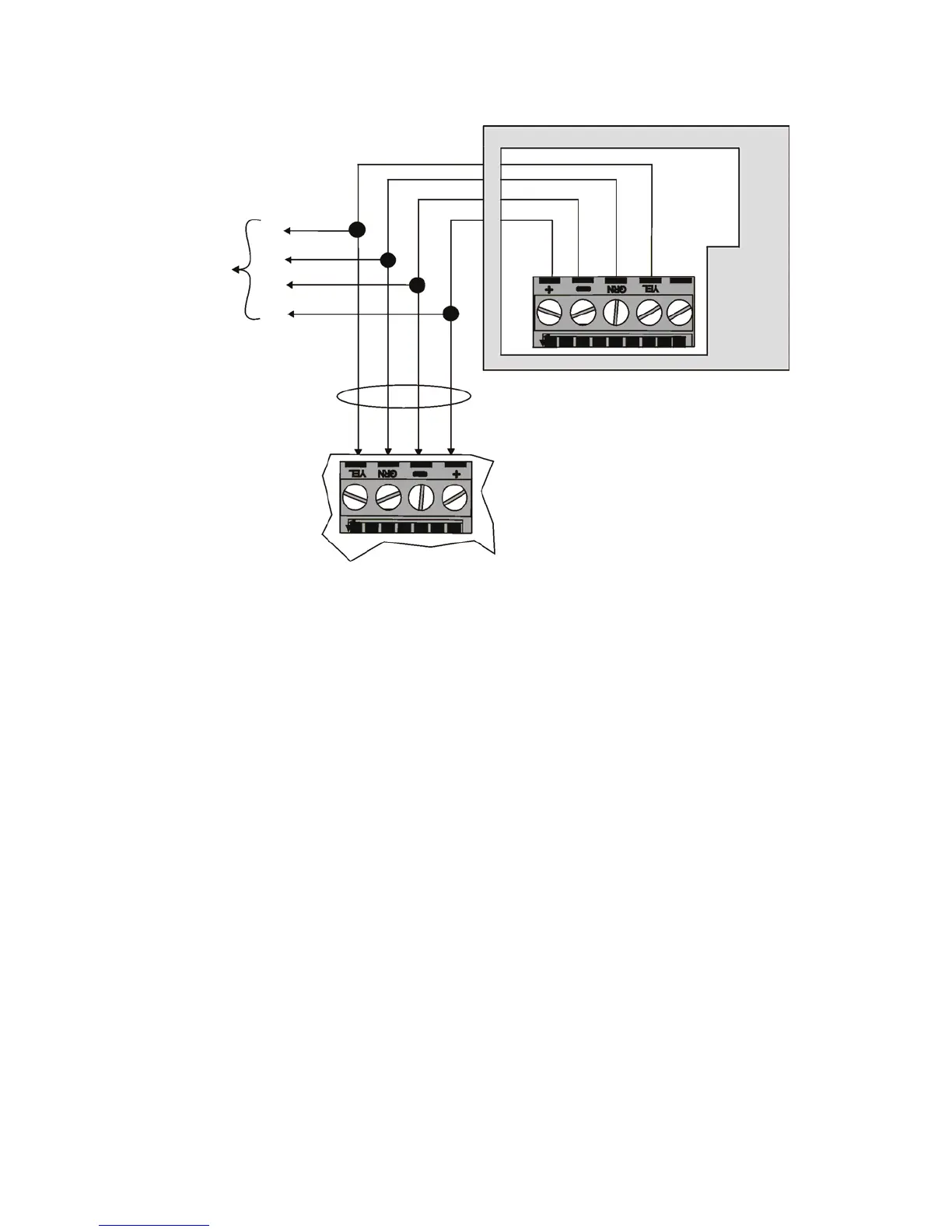

Figure 4: Connection Overview
2.5 MOUNTING GRAFICA
1) Place Grafica’s back plate flush against the mounted metal wall
plate.
2) Slide the Grafica’s open slots labeled “D” (Figure 5 on page 7)
onto the metal wall plate’s tabs labeled “B” (Figure 6 on page 7).
3) Gently apply downward pressure to snap the Grafica onto the
metal wall plate.
4) You may insert an optional screw under Grafica keypad through
the space in the metal wall plate’s left tab (Figure 6 on page 7).
To DigiplexNE
control panel
Grafica (partial view)
To other
modules
Communication---
bus
YEL
GRN
BLK
RED
To Next Page
