DigiplexNE Grafica Keypad Module 5n
2.3 MOUNTING THE METAL WALL PLATE
1) Place metal wall plate to desired position.
2) Drill and insert screws into holes labeled “A” as shown in Figure 3.

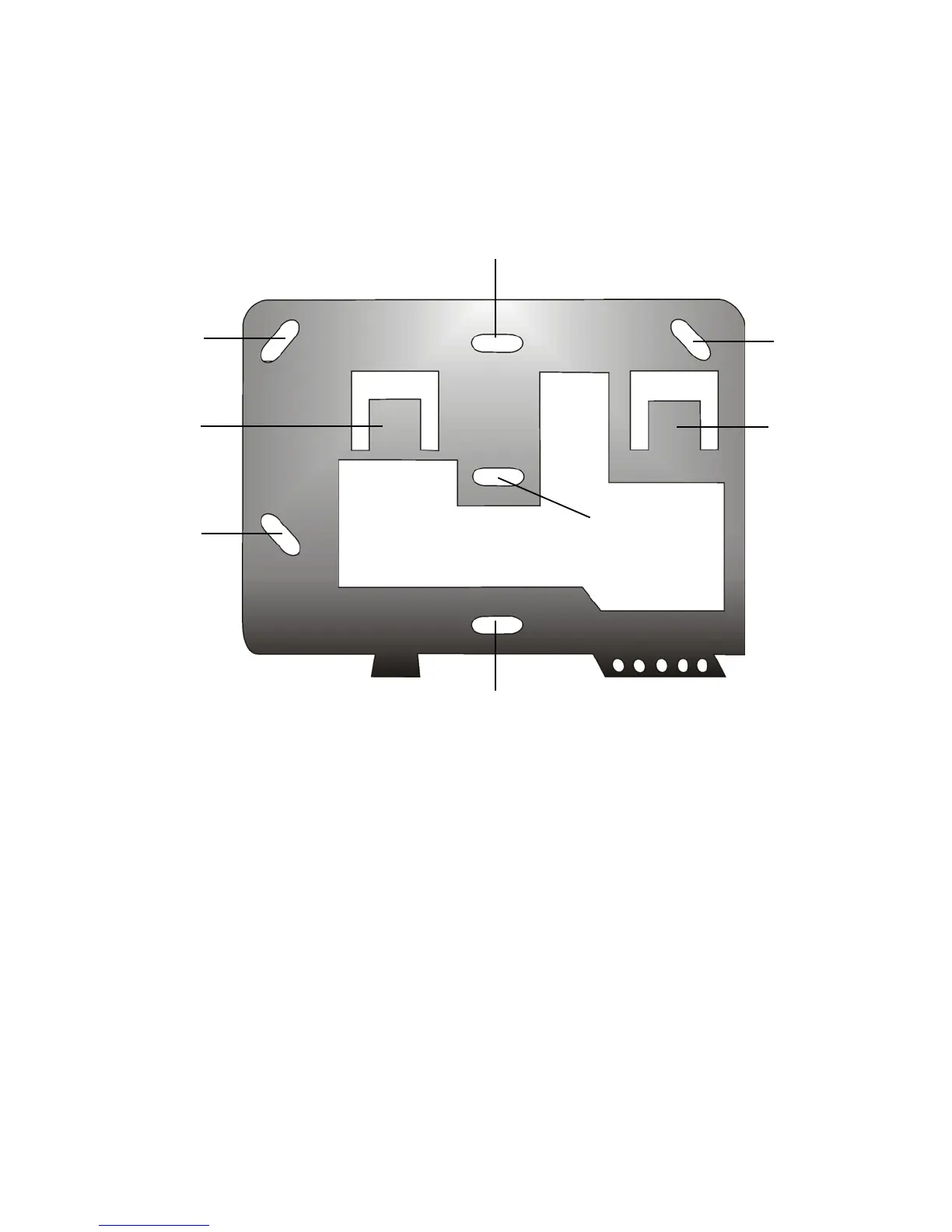

Figure 3: Metal Wall Plate
2.4 CONNECTING GRAFICA
You can connect Grafica to the DigiplexNE control panel’s
communication bus in a star and/or daisy chain configuration. The
communication bus consists of four wires that provide power and
two-way communication between the control panel and all modules
connected to it. Connect the four terminals labelled
RED, BLK, GRN
and YEL of the module to the corresponding terminals on the control
panel as shown in Figure 4 on page 6. Please refer to the DigiplexNE
Installation & Reference Manual for maximum allowable installation
distance from the control panel.
A
A A
B
B
C (for clip)
(Used also for electrical box)
A
A
(Used also for electrical box)
To Next Page
