To provide maximum
lightning protection we
strongly recommend having
separate earth connections
for the dialer and zone
ground terminals.
Max. number of keypads: 15 keypads
Max. aux. current: 700 mA
Max. distance of bus module from panel: 76 m (250 ft.)
Max. total run of wire: 230 m (750 ft.)
This equipment must be installed and maintained by qualified service personnel only.
For UL and C-UL warnings, refer to the UL and C-UL Warnings section at the back of the MGSP Reference & Installation Manual.
Disconnect telephone line
before servicing.

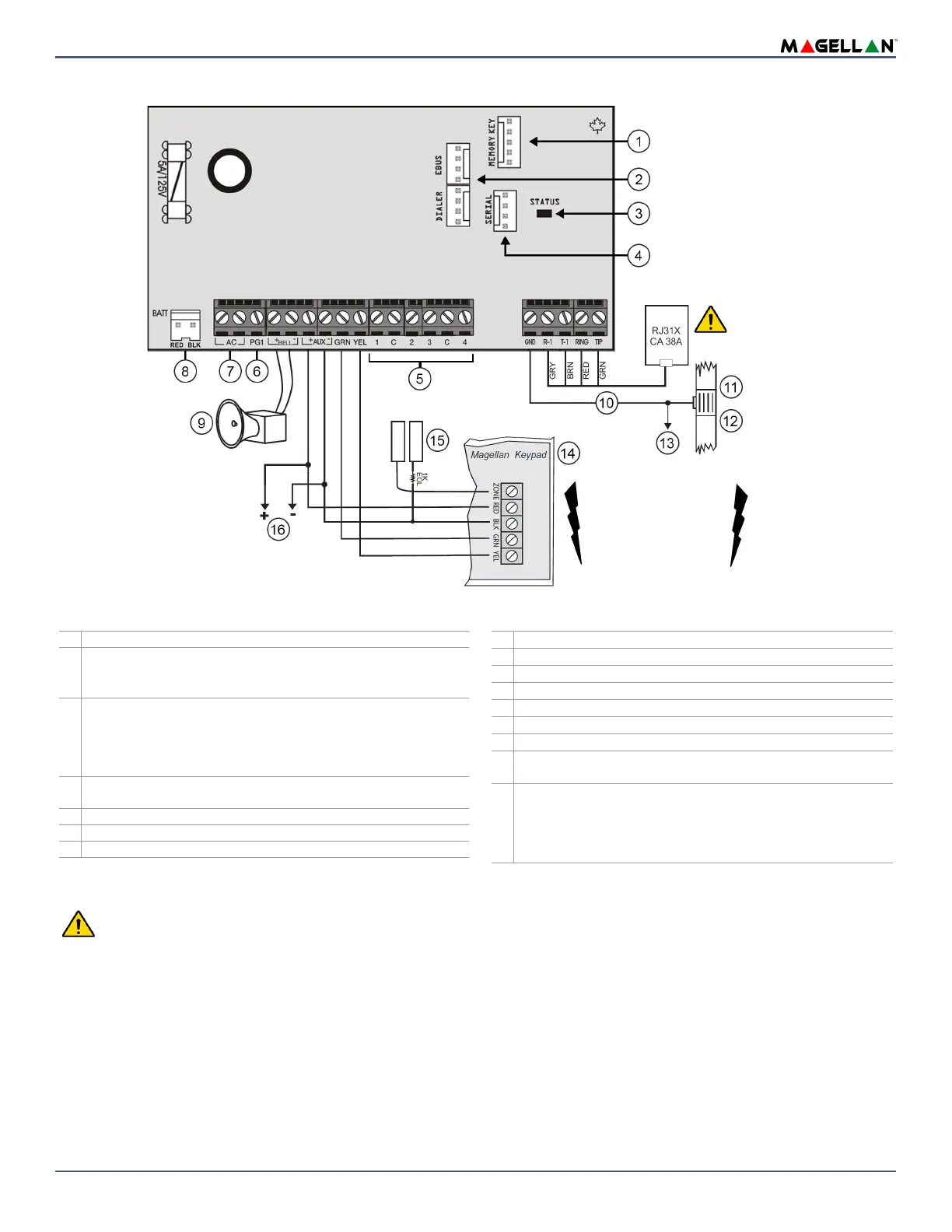

1 Paradox Memory Key (PMC5)
2 EBUS (J3) and Dialer (J4) used with:
• VDMP3 Plug-in Voice Module for voice reporting
• PCS Series Communicator Module
3Status LED:
• Flash once every second: Normal
• Flashes ON 1 sec. and OFF 1 sec.: Any trouble
• Always ON: Panel is using phone line
• Fast flash 6 seconds after power-up: Installer lock enabled
4 Serial: Used for connecting the IP Internet Module/PCS (Data); also used
for In-Field Firmware upgrade through a 307USB Direct Connect Interface
5 Refer to Single Zone Inputs on page 13
6 PGM Output: Refer to Alarm Relay and PGM Connections on page 60
7 16.5 Vac (50 or 60 Hz), minimum 20 VA (40 VA recommended)
8 Refer to AC Power & Backup Battery Connections section
9The
BELL output will shutdown if the current exceeds 3A
10 AWG #14 single conductor solid copper wire
11 Cold water pipe grounding
12 Ground clamp
13 To metallic enclosure
14 For the keypad’s zone configurations
15 If EOL is enabled, see section [706] option 2,
on page page 34. Also refer to Keypad Zone Connections on page 13.
16 To connect additional wiring to auxiliary power, use the red (+) and black
(-) keypad connectors; auxiliary power will shut down if current exceeds
1.1A; if the auxiliary output is overloaded and shuts down, you must
disconnect all loads from the output for at least 10 sec. before
reconnecting any load back to the auxiliary output
