Paradox SP6000 Installation Guide

18
Magellan & Spectra SP • Installation Guide
Single Zone Inputs
Detection devices such as motion detectors and door contacts are connected to the control panel's zone input terminals. Figure 3 demonstrates single zone input
terminal connections recognized by the panel. Once connected, the associated zone's parameters must be defined.

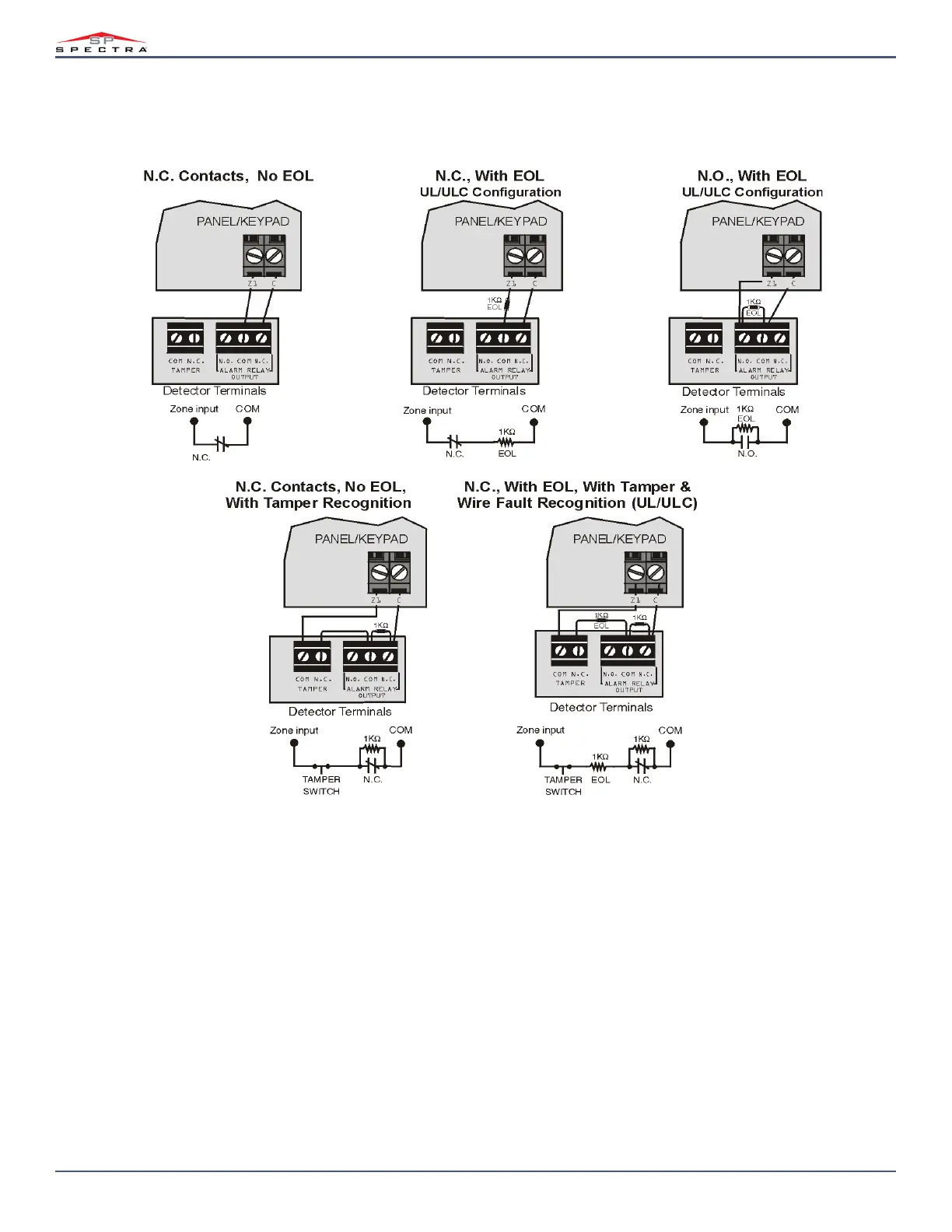

Figure 3: Single Zone Input Connections

Paradox SP6000 Specifications

General

Partitions	2
User Codes	32
Event Buffer	256 events
PGM Outputs	2 (expandable to 16)
Compatibility	Compatible with wireless expansion modules and keypads
Communication	Phone line, GSM, IP
Users	32
Zones	Up to 32 (5 on-board)
Keypads	Supports multiple keypad types
