4 User’s Manual
2.0 BASIC OPERATION
The Spectra 1689 LED and 1641 LCD Keypads function in
the same way, but display the visual feedback differently.
This section will provide an overview of the keypads.
Many of the features in your system must be enabled
by the installer. If the feature is not programmed, the
keypad will emit a rejection beep and the action will be
cancelled. Refer to “System Checklist” in section 8.0
for details.
2.1 KEYPAD INDICATOR LIGHTS
The state of each light on the Spectra Keypads represents a
specific condition in your system as shown in Figure 2.1.

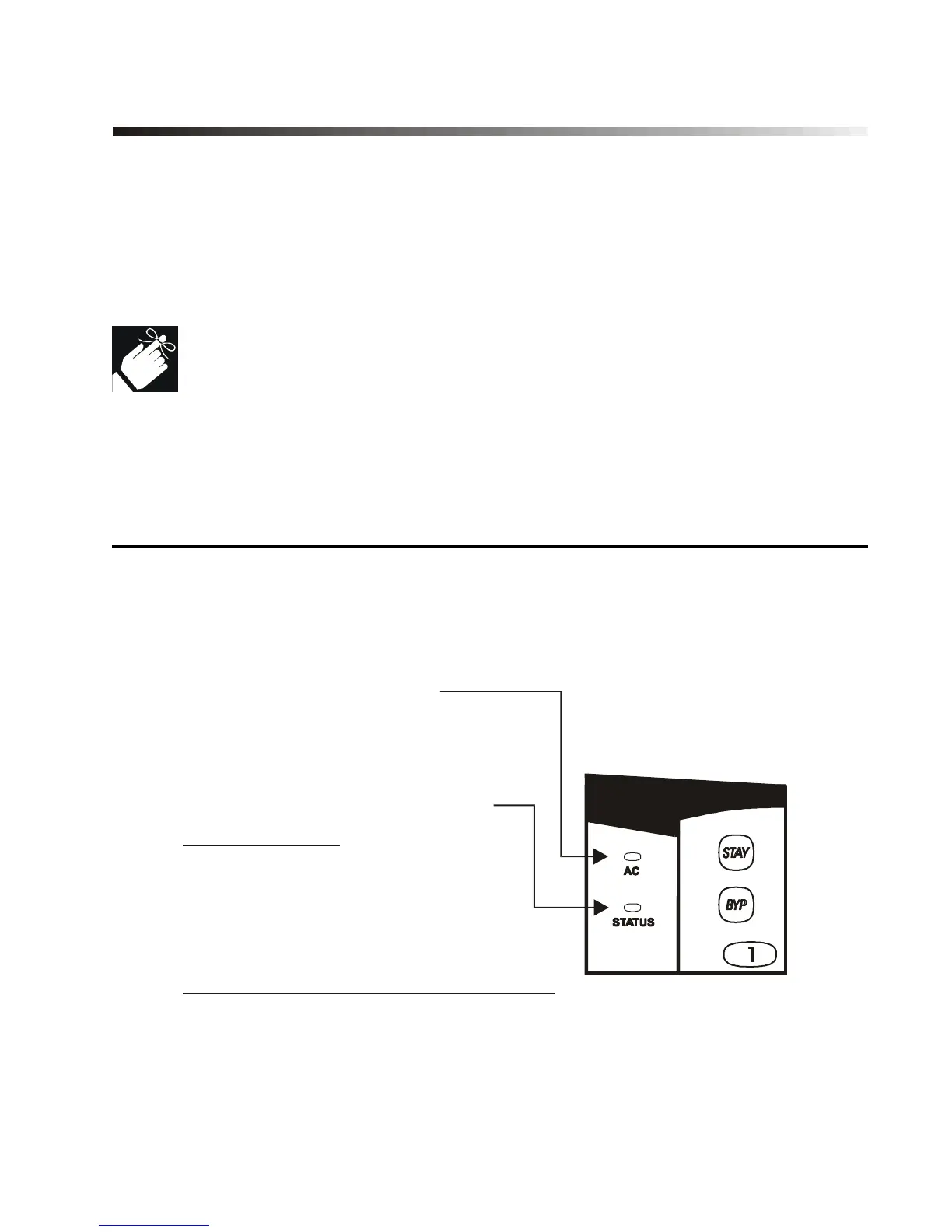

Figure 2.1: Overview of Indicator Lights
“AC” LIGHT:
AC power is present
= Power failure
=
ON
OFF
“STATUS” LIGHT:
= All zones closed
= Zone(s) open
= During
When Green:
ON
OFF
FLASH Exit Delay
When Red (LCD keypads only):
=
=
= A
ON
SLOW FLASH
FAST FLASH
System Armed
Stay Armed
larm
To Next Page
