How to Replace the Printer Head
8. Push the black connector back into place.

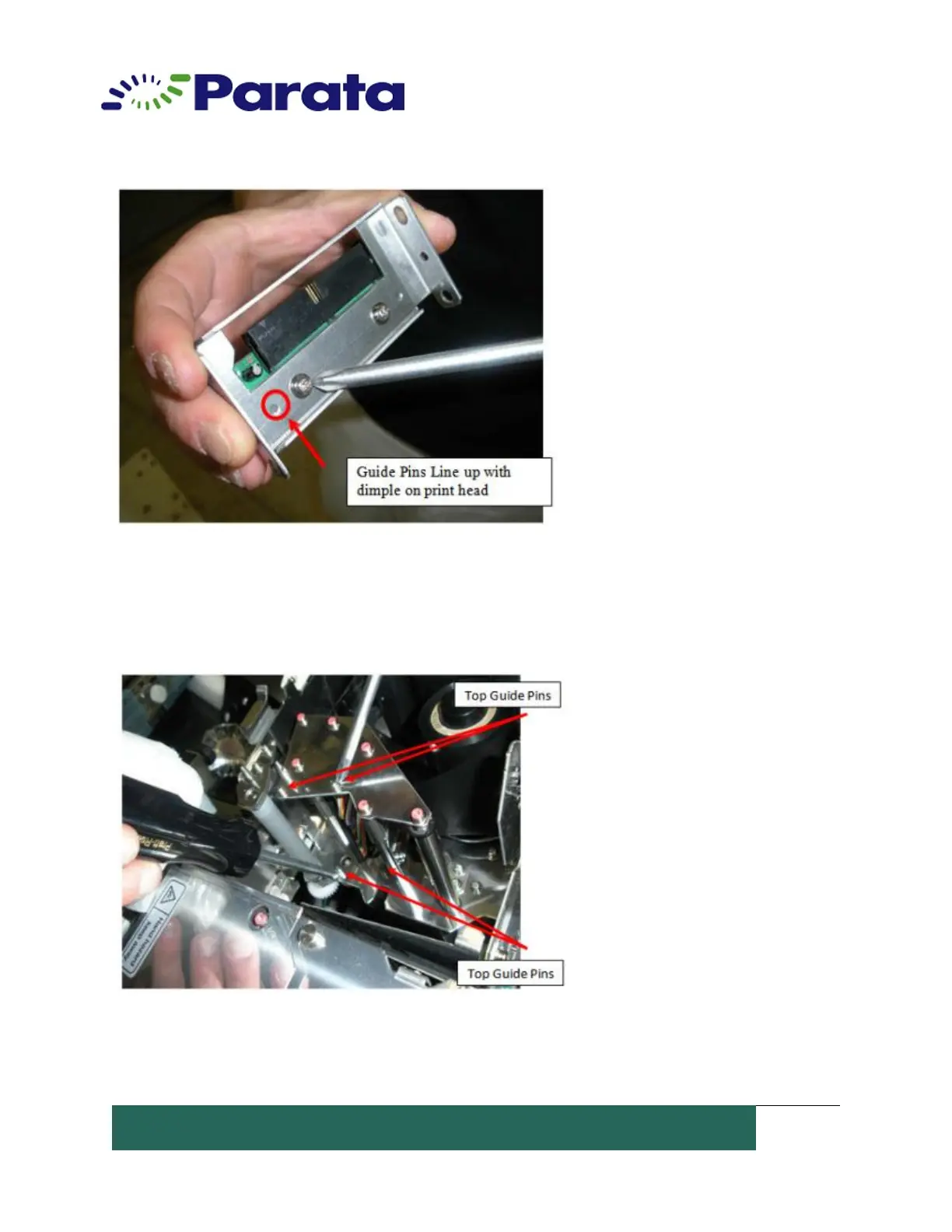

9. There are four guide pins for the print head bracket. The bracket should slide on all pins
at the same time.
10. Replace the mounting screw removed in step 3.
