2. Install new closure
b.
Replace closure if it is not secured

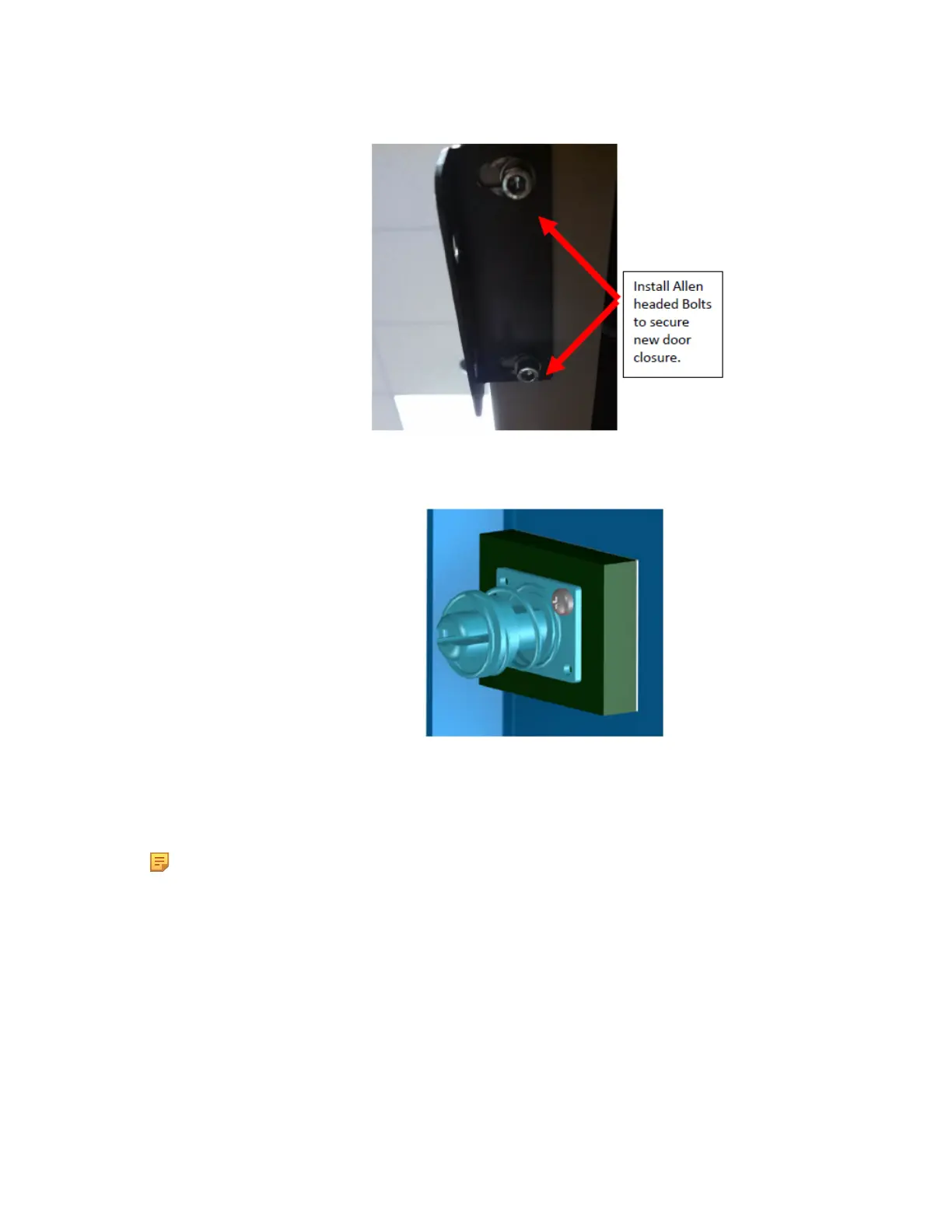

i. To replace door closure
1. Remove the 2 securing screws
ii.
If double sided Black base is disconnected the base to the door
1. Clean tape off backside of black mounting plate, and the backside of the door.
2. Apply new double sided tape to the back of the black mounting plate
3. Insert the closure into the accepter on the cabinet.
Note: DO NOT INSTALL CLOSURE ONTO DOOR FIRST!!! SNAP CLOSURE INTO
THE LOCKING MECHANISM TO ALIGN!!!
12. Cross off SB2
13.
Upper Dome latch
a. a)Check the upper dome for a dome latch
i. i)If missing:
1. (1)Install new dome latch through front mounting bolts of top Dome.
