Appendix B VM25 Breakout Module 113
Overview
The VM25 module provides screw-terminal connections for the General
Purpose I/O connectors on the ACR9000 and ACR9030 Stand-Alone
Controllers. The VM25 comes with a 2-foot cable (609.6 mm) that provides
easy connection between the VM25 and the controller’s 25-pin I/O
connectors. The VM25 expansion I/O module is ordered separately (part
number “VM25”).
Notes
•
The VM25 module ships with DIN-rail mounting clips installed.
• The overall cabinet depth with cable-bend radius is 5 inches (127
mm).

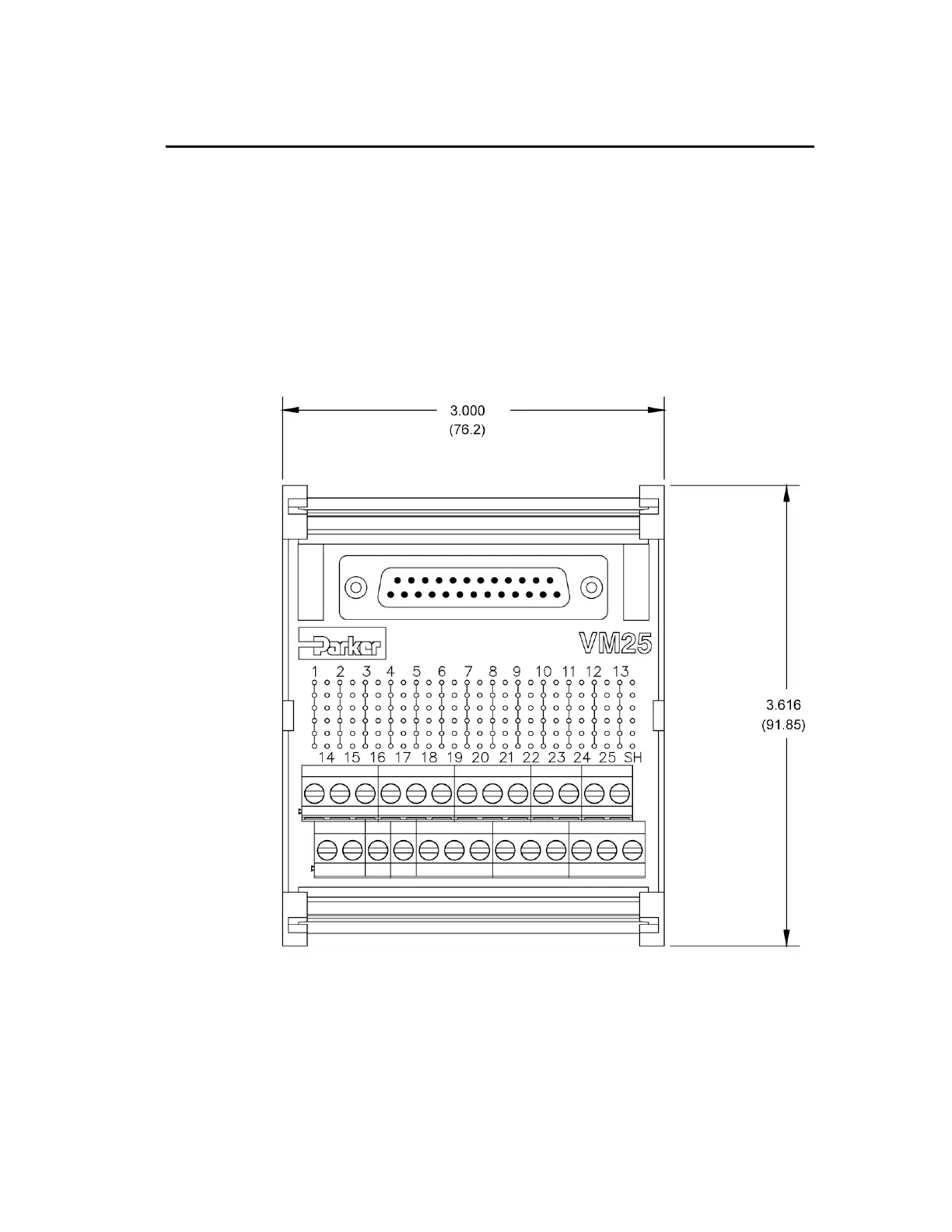

Figure 34 VM25 Breakout Module
