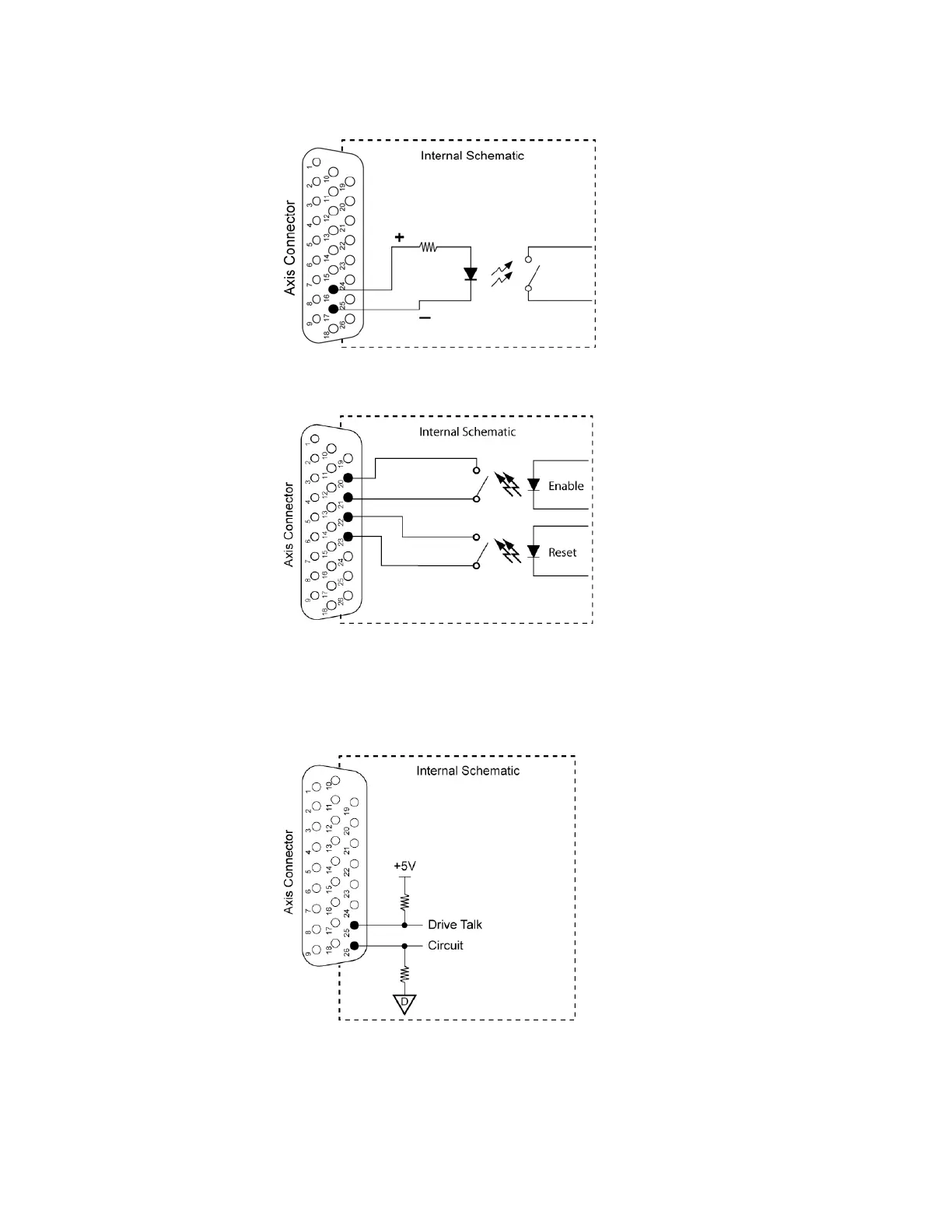

Drive Fault Inputs
Figure 11 Equivalent Circui
t for Drive Fault Inputs
Drive Enable and Drive Reset Outp
uts
Figure 12 Equivalent Circuit for Dr
ive Enable and Drive Reset Outputs
Drive Talk
Drive Talk signals are reserved for com
patibility with Parker Hannifin drives
and are not available for general use.
Figure 13
illustrates the Drive Talk
signal path.
Figure 13 Equivalent Circui
t for Drive Talk Signals
Chapter 2 Specifications 43
