Installation Overview

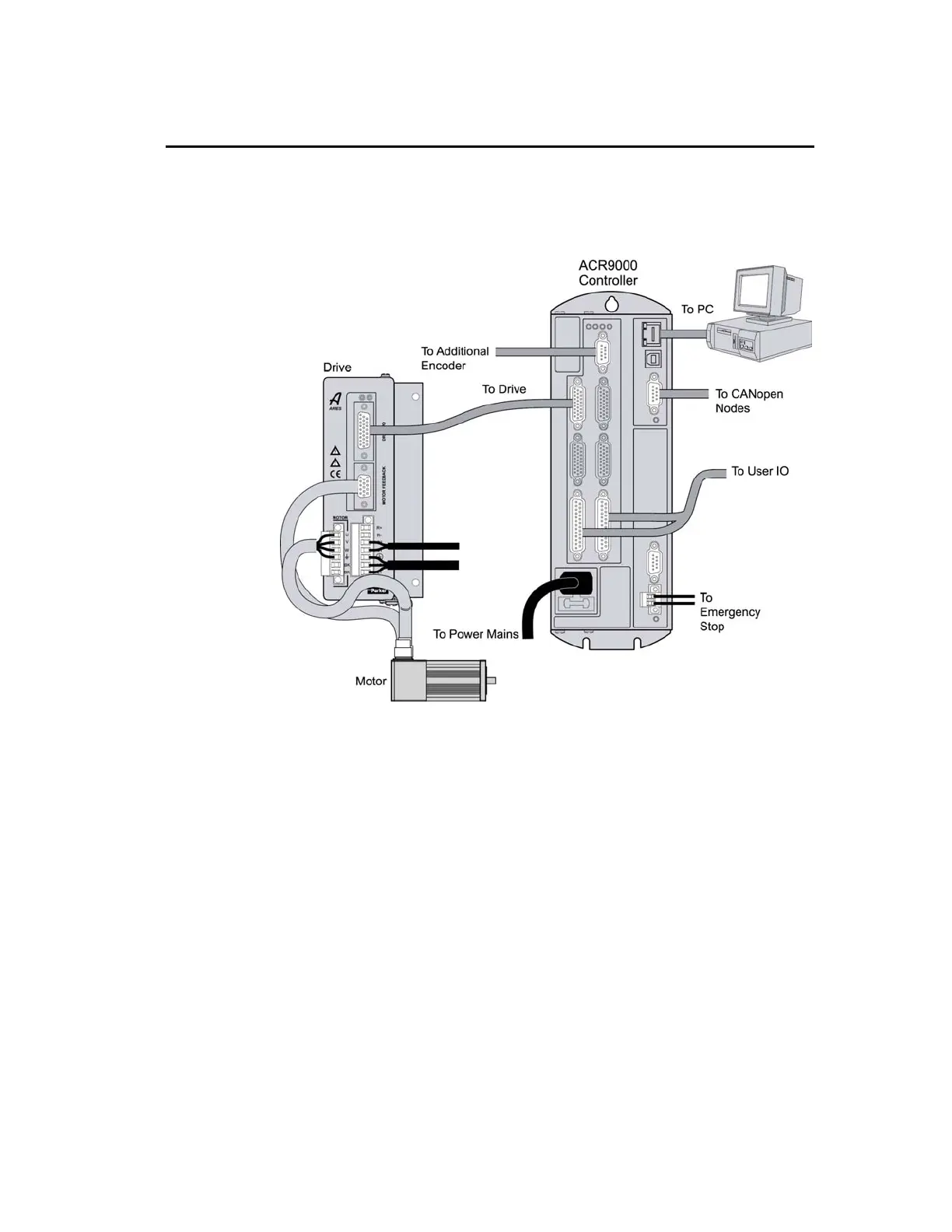

Figure 21 illustrates the components necessary for installation of the
ACR9000 Stand-Alone Controller. It shows the ACR9000 connected to an
Aries drive and a personal computer (PC), and it is also applicable to the
ACR9030 installation. The recommended installation process, mounting
guidelines, and cable installation procedures follow.
Figure 21 Overview of System Installation
Recommended Installation Process
1. Check the ship kit to make sure you have all items. (For the ship kit
contents, see Table 1 Ship Kit for ACR90x0 Stand-Alone Controller on
page 16).
2. Review the specifications tables in Chapter 2.
3. If you require RS-485 operation, configure the COM1 port connecting
cable as specified in “COM1 Connection” on page 72.
4. Mount the ACR90x0 controller following the guidelines on page 65.
5. Connect all cables and electrical components,
except the AC power
cord.
6. If you desire VM25 expansion I/O connectivity, install the module
following the guidelines in Appendix B VM25 .
7. Install the power cord.
8. Apply power to the controller and confirm that all LED status indicators
are illuminated green. Use the procedures in Chapter 4 Troubleshooting
to solve any installation problems.
