Service/Spare Parts Manual
The pages we may need to use are the “split view” and the parts list for the par-
ticular motor size. In our example F10-080-AS-SV-T-000-0000-P0, “F10-080”
is the size of the motor, and we need to turn to that particular page.
How to Select F10 Spare Parts
The columns are defined as:
Pos. – The number from the split view that identifies the part
Part Number – The number needed to purchase that part
Description – The description of the part and the matching model
code character
Quantity – The number of that particular part you need to order for one unit
Remarks – These can give you extra information to define the part
For motor F10-080-AS-SV-T-000-0000-P0 we need the barrel housing, shaft
and shaft seal
For the barrel housing we can find the part a couple of ways. If there is visual re-
cognition of the part, then the item number can be found by looking at the “split
view” of the motor and locating the item number. In this case it is number 110.
Bulletin MSG30-5513-M1/UK
Spare Parts Series F12
2
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden

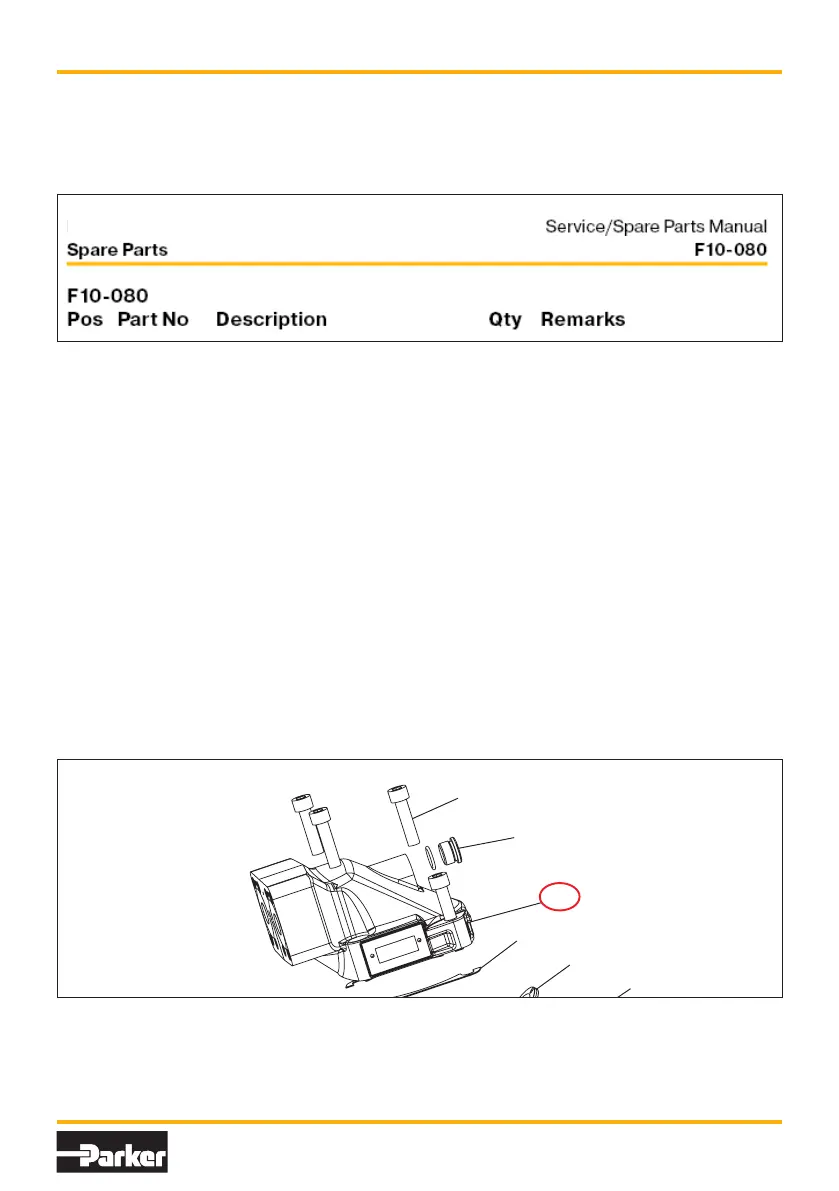

Spare Parts
Split view
With two tappered
roller bearings
491
130
110
488
121
411
442
440
430
310
460
321
452
221
211
61
470
476
478
233
231
237
229
Cartridge
version
238
225
F12-30 though F12-125
MSG30-5524-M1/UK
