Parker F10 Series User Manual

17
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service/Spare Parts Manual
Series F10
MSG30-5524-M1/UK
Test Procedure

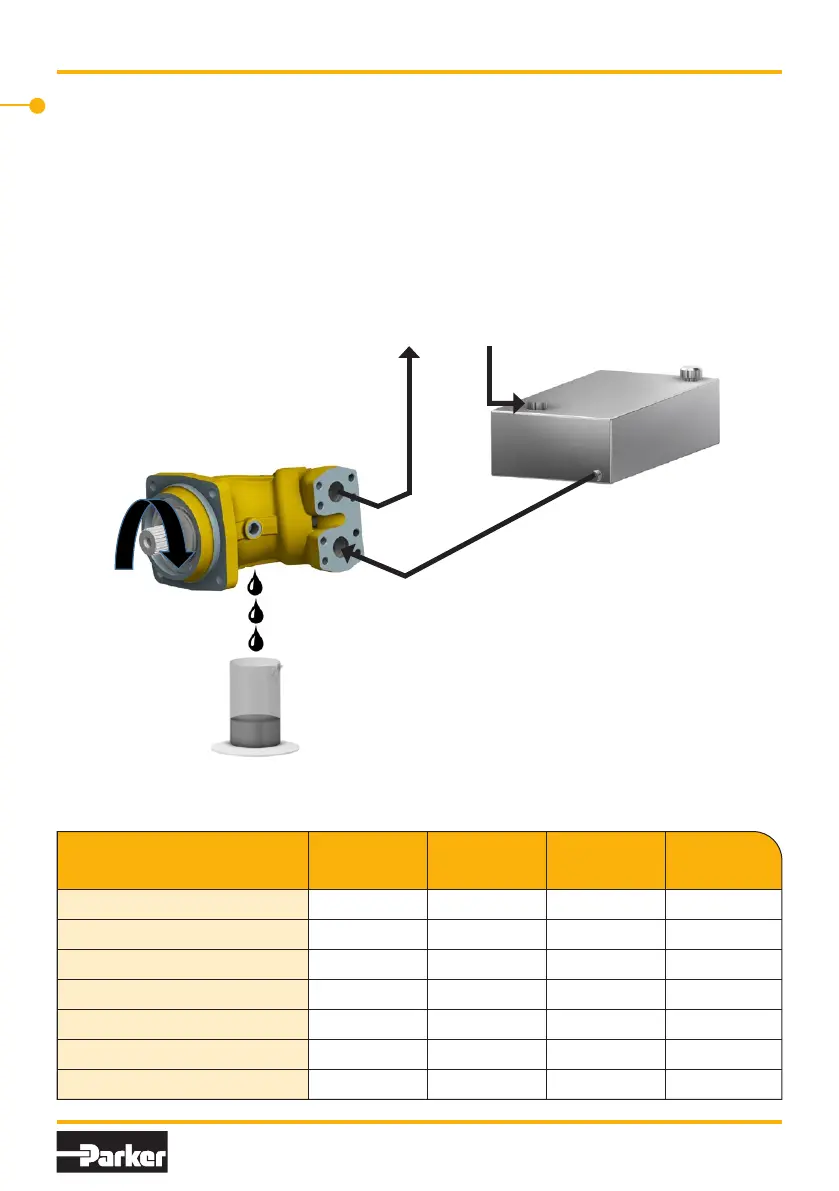

The general condition of the unit can be
established by checking the drain flow.
Remove the drain line and keep the
drain port above a suitable container.
Run the unit at 500 rpm and pressurise
the system to 200 bar (3000 psi)
Measure the drain flow for one minu-
te; if it exceeds the maximum figures
shown below, the unit is worn or dama-
ged internally and should be replaced
or repaired. Also, check for leakage at
the shaft seal and between the bearing
and barrel housings.
Test Procedure
17
Parker Hannin
PumpandMotorDivision
Trollhättan,Sweden
ServiceManual
Series F12
MSG30-5520-M1/UK
Thegeneralconditionoftheunitcanbeestablishedbycheckingthedrainow.Removethe
drainlineandkeepthedrainportaboveasuitablecontainer.Runtheunitat500rpmand
pressurisethesystemto200bar(3000psi)
Measurethedrainowforoneminute;ifitexceedsthemaximumguresshownbelow,theunit
iswornordamagedinternallyandshouldbereplacedorrepaired.Also,checkforleakageat
theshaftsealandbetweenthebearingandbarrelhousings.
Series Normal
(gpm,US)
Normal
(l/min)
Max
(gpm,US)
Max
(l/min)
F12-152 0.4 1.5 0.99 3.7
F12-162 0.43 1.6 1.08 4.1
F12-182 0.47 1.8 1.19 4.5
Test Procedure
Series Normal
(gpm, US)
Normal
(l/min)
Max
(gpm, US)
Max
(l/min)
F10-030 0.12 0.5 0.24 0.9
F10-037 0.16 0.6 0.32 1.2
F10-056 0.24 0.9 0.47 1.8
F10-080 0.32 1.2 0.64 2.4
F10-090 0.37 1.4 0.74 2.8
F10-107 0.44 1.7 0.87 3.3
F10-125 0.50 1.9 0.99 3.8
