Service/Spare Parts Manual
Series F10
Assembly

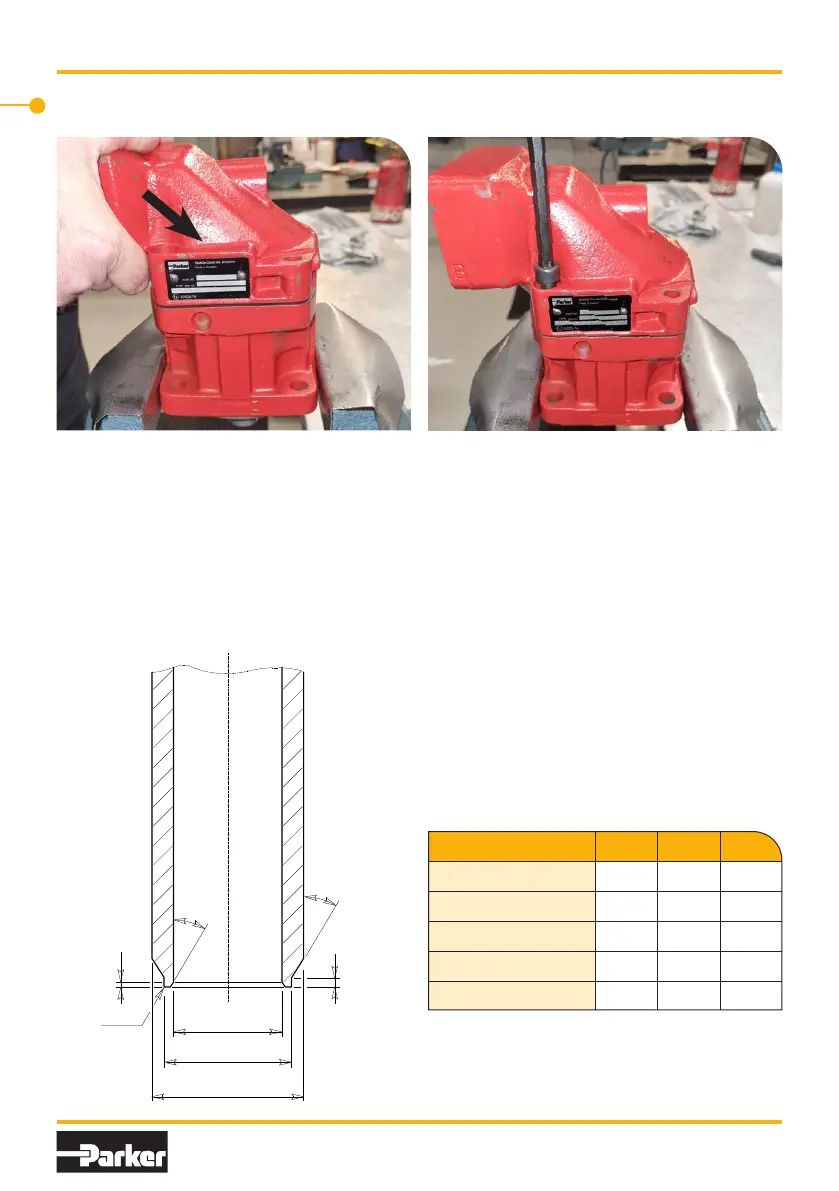

36. Install the barrel housing (item 110) by
mount the center pin of barrel housing
in the cylinder barrel, move the barrel
housing in correct angle.
Install the screws (item 491) and shims
(item 488)
Tips! Tap carefully with plastic hammer
on Barrel housing.
37. Fasten the 4 bolts (item 491) to
specified torque.
F10-030 65 ± 10 Nm
F10-037 65 ± 10 Nm
F10-056 65 ± 10 Nm
F10-080 65 ± 10 Nm
F10-090 115 ± 10 Nm
F10-107 115 ± 10 Nm
F10-125 115 ± 10 Nm
16
Parker Hannin
PumpandMotorDivision
Trollhättan,Sweden
ServiceManual
Series F12
HY30-5504-M1/UK
Fastenthe4boults(item491)tospecied
torque.
F12-030 65±10Nm
F12-040 65±10Nm
F12-060 65±10Nm
F12-080 115±10Nm
F12-090 115±10Nm
F12-110 115±10Nm
F12-125 115±10Nm
F12-150 220±35Nm
F12-250 220±35Nm
491
Type   ØA  ØB  ØC
F12-030  60  49  42
F12-040  65  58  52
F12-060  73  64  57
F12-080/090 74  70  62
F12-110/125 82  75  67
F12-150/250 97  -  82
Tools to be used to facilitate the
installation of the tappered roller
bearings.
0.5x45
f C/
+0.20
f A/ +0-1
f B
1.5
3
30
30
Pressdon.eps
LeifA./01-04-03
ØB
ØA-1
0
0.5×45°
ØC0
+0.2
1.5
3
30°
30°
Type �A �B �C
F10-030/037 60 49 42
F10-056 65 58 52
F10-080 73 64 57
F10-090/-107 74 70 62
F10-125 82 75 67
Assembling
