How to Select F10 Spare Parts
How to Properly Select a F10 Spare Part
Bulletin MSG30-5513-M1/UK
Spare Parts Series F12
2
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Spare Parts
Split view
With two tappered
roller bearings
491
130
110
488
121
411
442
440
430
310
460
321
452
221
211
61
470
476
478
233
231
237
229
Cartridge
version
238
225
F12-30 though F12-125
Split View

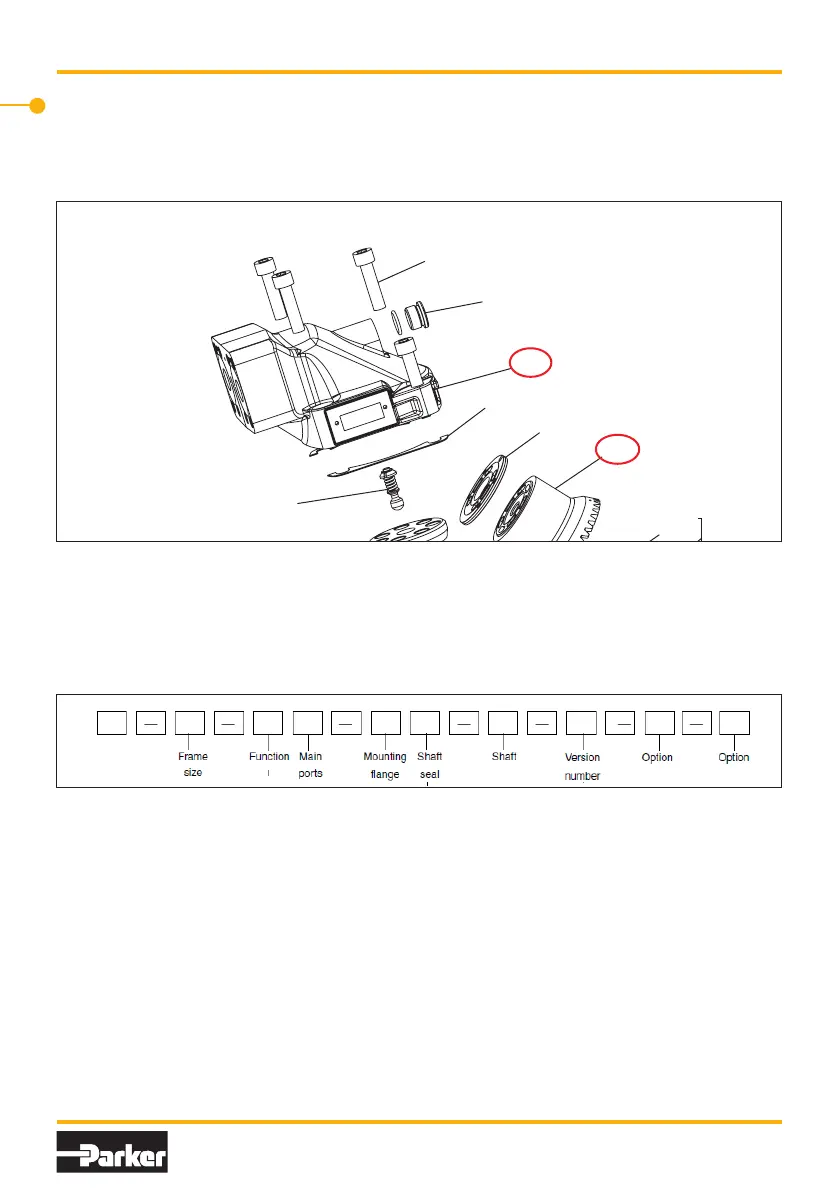

The first page of spare parts bulletin will display a “split view” drawing with the
parts identified with numbers shown in red below.
For our example we will be using the description F10-080-AS-SV-T-000-0000-P0
which has the part number 3724422 associated with it.
The part number is the number used to order the motor and takes precedence
over the description.
How to Properly Select an F12 Spare Part
e rst page of spare parts bulletin (HY30-55130M1/UK/SE - October 2018) wil display a “split view” drawing
with the parts identied with numbers shown in red below.
Split View
For our example we will be using the description F12-040-MS-SV-T-000-0000-P0 which has the part number
3786812 associated with it. e part number is the number used to order the motor and takes precedence over
the description.
e pages we may need to use are the “split view” and the parts list for the particular motor size.
In our example F12-040-MS-SV-T-000-0000-P0, “F12-040” is the size of the motor, and we need to turn to that
particular page.
e motor must be within the serial number range (red line)
e columns are dened as:
Item – e number from the split view that identies the part
Part Number – e number needed to purchase that part
Title – e description of the part and the matching model code character
Quantity – e number of that particular part you will receive when you purchase that part
Remarks – ese can give you extra information to dene the part, the previous part number, and/or refer
to a product change bulletin that further explains the part number change
