Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service/Spare Parts Manual
Series F10
MSG30-5524-M1/UK

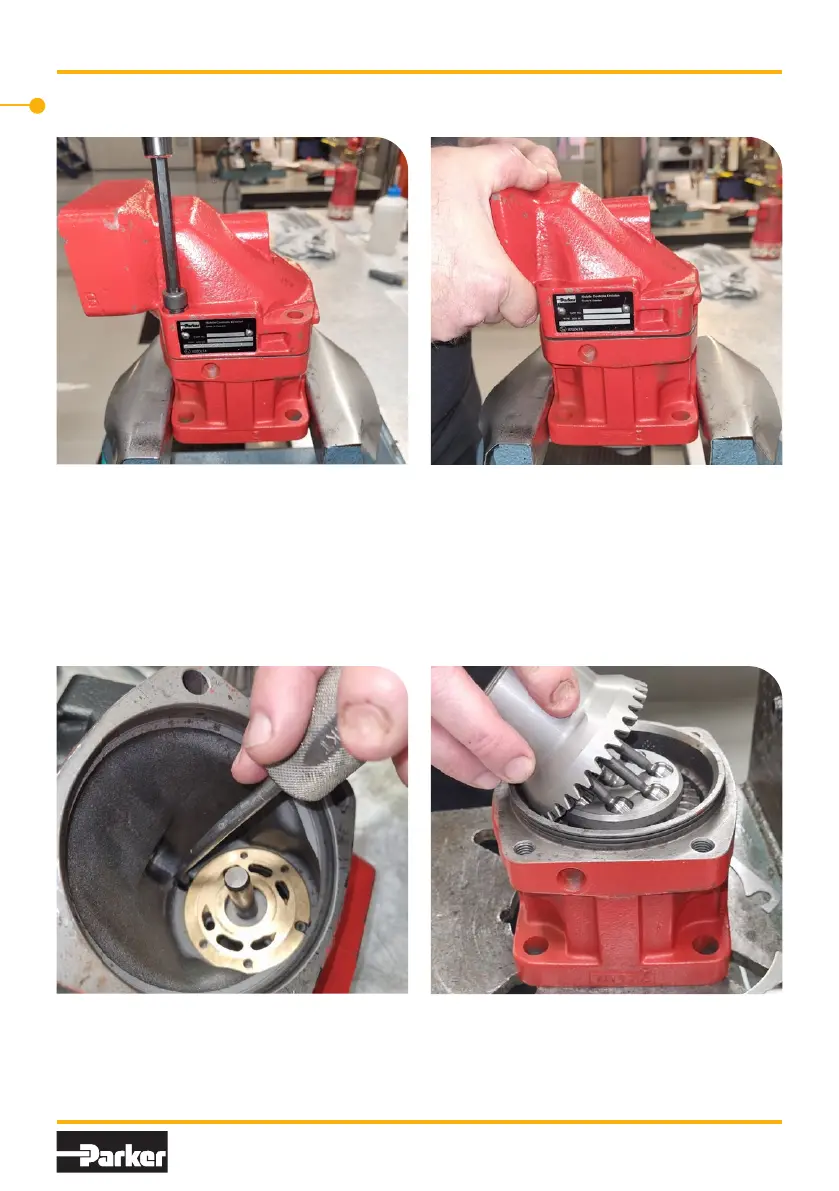

Disassembling
Disassemble
1. Fasten the unit in a vice.
Loosen the 4 bolts (item 491).
2. Disassemble the barrel housing (item
110). Make sure that the valve plate
doesn’t fall out when lifting the barrel
housing o.
Tips! If the parts are stucked, use a
plastic hammer and tap carefully
underneath.
3. When disassembling valve plate
(item 121), use a tool like a hook and
remove as shown.
4. Remove the cylinder barrel (item 411)
