MSG30-5524-M1/UK
8
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service/Spare Parts Manual
Series F10
Disassemble
Disassembling

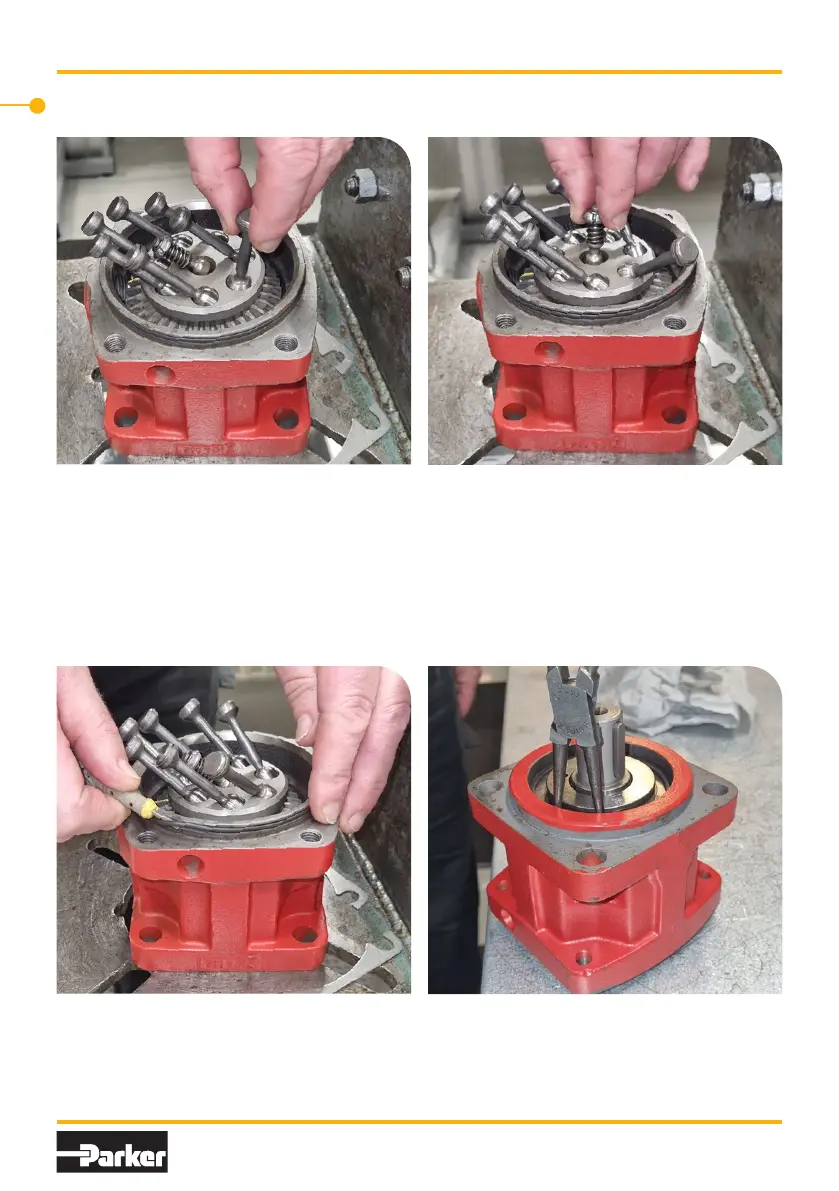

5. Remove the pistons (item 440) 6. Remove the barrel support (item 430)
7. Remove the O-ring (item 221)
Always change seal kit when
removing seals
8. Disassemble the retaining ring
(item 237)
