Parker HAS Series User Manual

Catalog HY08-4005-M3
12
Hydraulic and Electrohydraulic Actuators
HAS Series Analog Drives Manual
Parker Hannifin Corporation
Cylinder Division
Des Plaines, Illinois USA
13
www.parker.com/cylinderwww.parker.com/cylinder

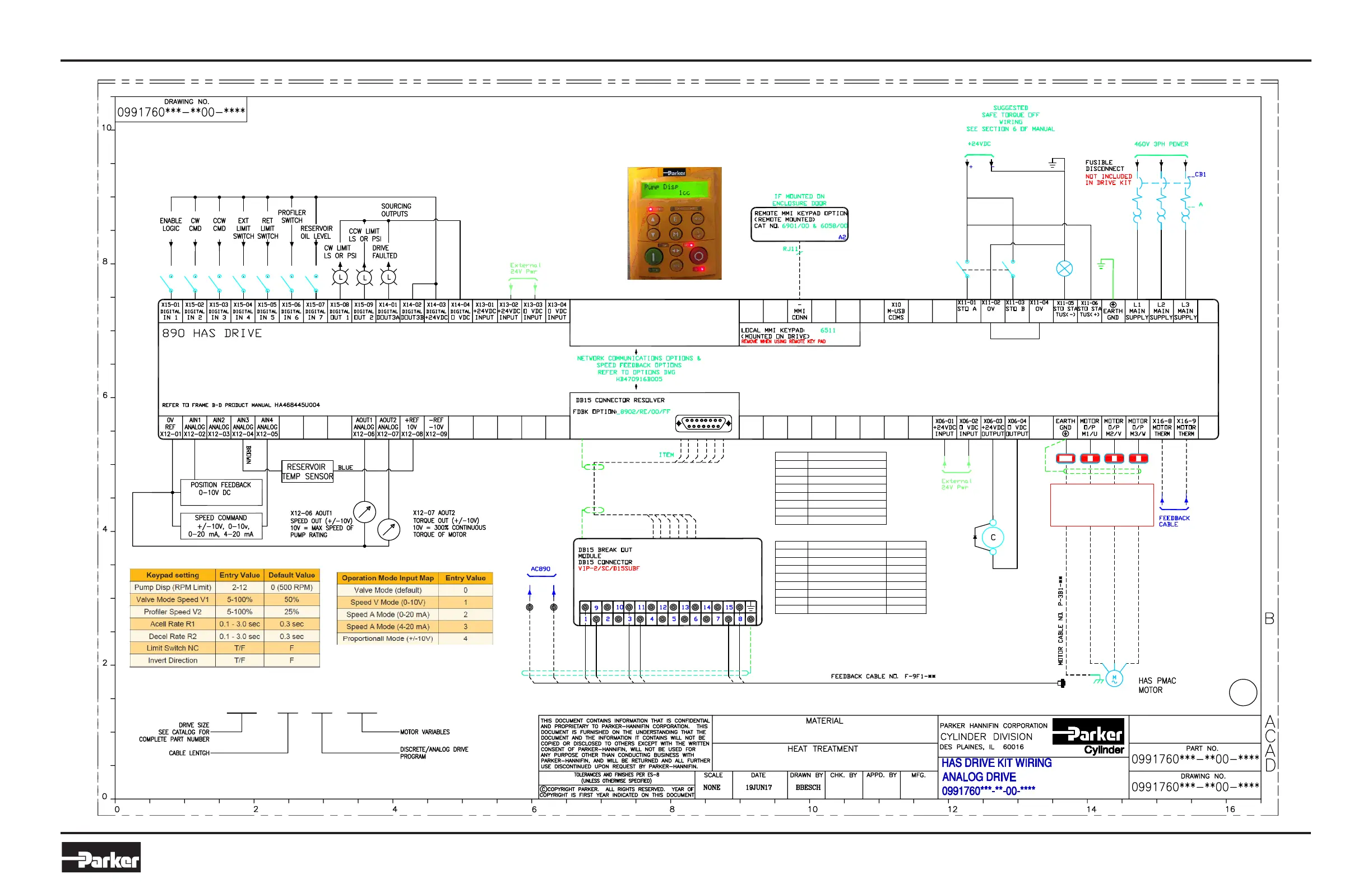

Installation
231
DB15 PIN Function Color Code 890 DB15
9 SIN- White/Yellow x30-9
1 SIN+ Yellow/Brown X30-1
3 COS+ Brown X30-3
11 COS- White X30_11
8 REF+ Red/Blue X30-8
15 REF- Gray/Pink X30-15
8 Thermal Gray X16-8
9 Thermal Pink X16-9
SIN+ Yellow/Brown
SIN- White/Yellow
COS+ Brown
COS- White
REF+ Red/Blue
REF- Gray/Pink
Thermal Gray
Thermal Pink
Thermal Gray
Thermal Pink
GRD
Cable Pin Function Color Code
1 SIN- White/Yellow
2 SIN+ Yellow/Brown
11 COS+ Brown
12 COS- White
14 REF+ Red/Blue
17 REF- Gray/Pink
9 Thermal Gray
13 Thermal Pink
KEYPAD ENTRY REQUIRED
MUST CONFIGURE DRIVE TO
MATCH HAS PUMP SIZE AND
DESIRED MEANS OF OPERATION
"E" Key= Exit, "M" Key = Menu/ Writable
Press "M" Display Operator Manual Lvl 1
Press "M" (speed setting displayed)
arrow Up or Down to scroll thru settings
Local Start / Stop Buttons disabled
DRIVES SHIPPED WITH
JUMPER INSTALLED X16-8
& X16-9
FOR MOTOR PROTECTION
REMOVE JUMPER AND
CONNECT THERMISTER
CONNECTION FROM
FEEDBACK CABLE AS
SHOWN
0991760*** - ** 00-****-A
USER 24V DC INPUTS
PLEASE NOTE:
MOTOR CONNECTIONS
WIRE NUMBERS
1, 3, 2, FOR U, V, W
HAS ORIENTATIONS:
"A" & "H", CLOCKWISE ROTATION EXTENDS CYLINDER
"B" & "C", COUNTER-CLOCKWISE EXTENDS CYLINDER
2 Amp @ 24VDC Rating
HAS UNITS ORDER WITH
HEAT EXCHANGER
OPTIONS, EQUIPPED
WITH SOLENOID
OR
RESERVOIR HEATERS

Parker HAS Series Specifications

General

Output Voltage	0-Input Voltage
Control Modes	Torque, Speed
Feedback	Encoder, Tachometer
Operating Temperature	0°C to 40°C
Communication Interface	RS485
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit, Overtemperature
Enclosure	IP20
