Diagnostics
WELCOME
SCREEN
MM
Res Temp (F)
OPERATOR menu at
level 1
MM
= XX
Hrs of Operation
= XX
CAL PSI
= XX
HAS Position =
XX .00
Display of HAS Reservoir Temperature
Note: Thermistor must be connected for operation
Display of HAS operating hours
Display in hours, recorded with minimum 3 secs of
operation time.
Display of Pump pressure calculated from amp draw, pump
displacement and Motor kT constant.
Display of HAS position, units defined by value entered in Position @
100% input field.

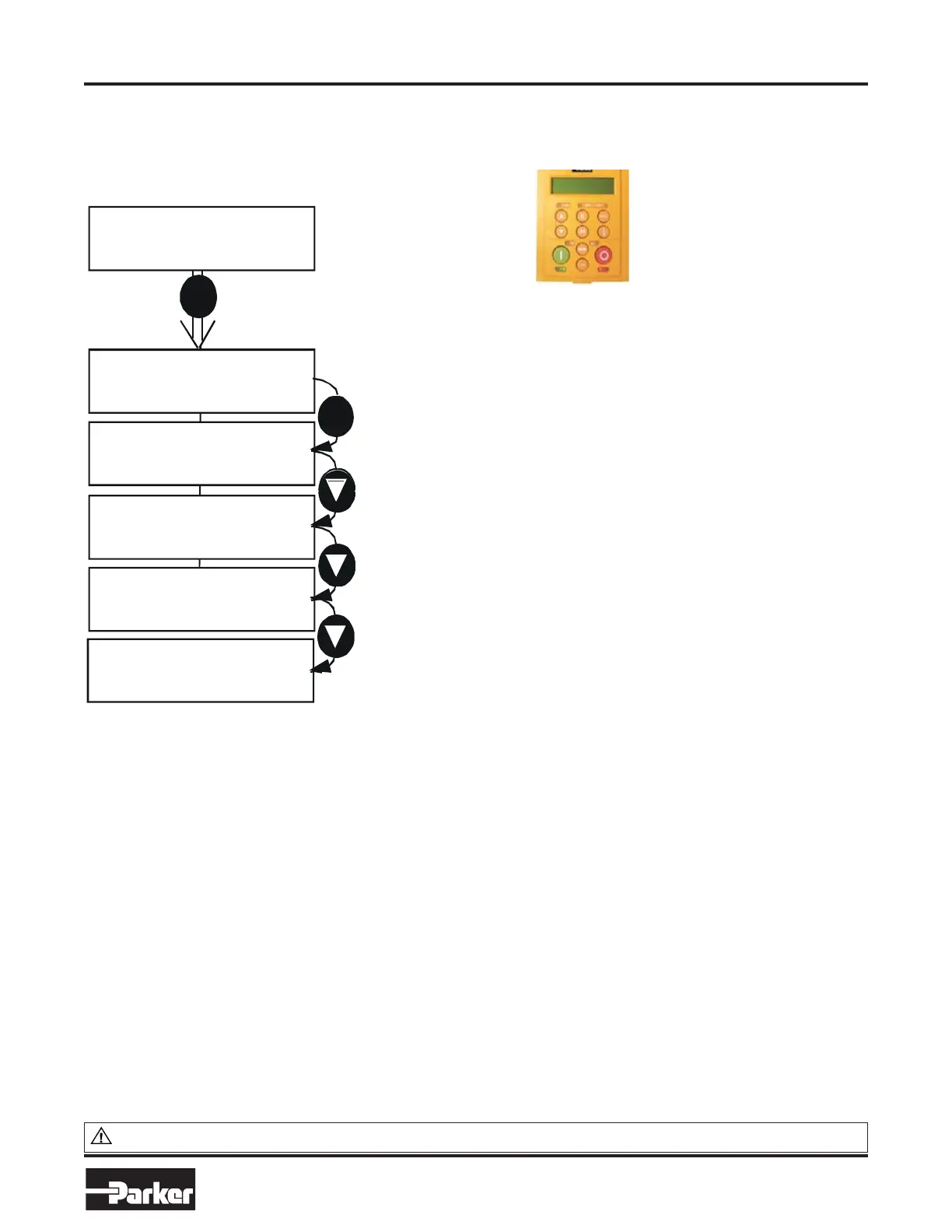

HAS specific keypad displayed fields located in the Operator menu. These fields are read only.
