FIGURE 2-9A
24Volt Transmitter Power Supply (XP Option)

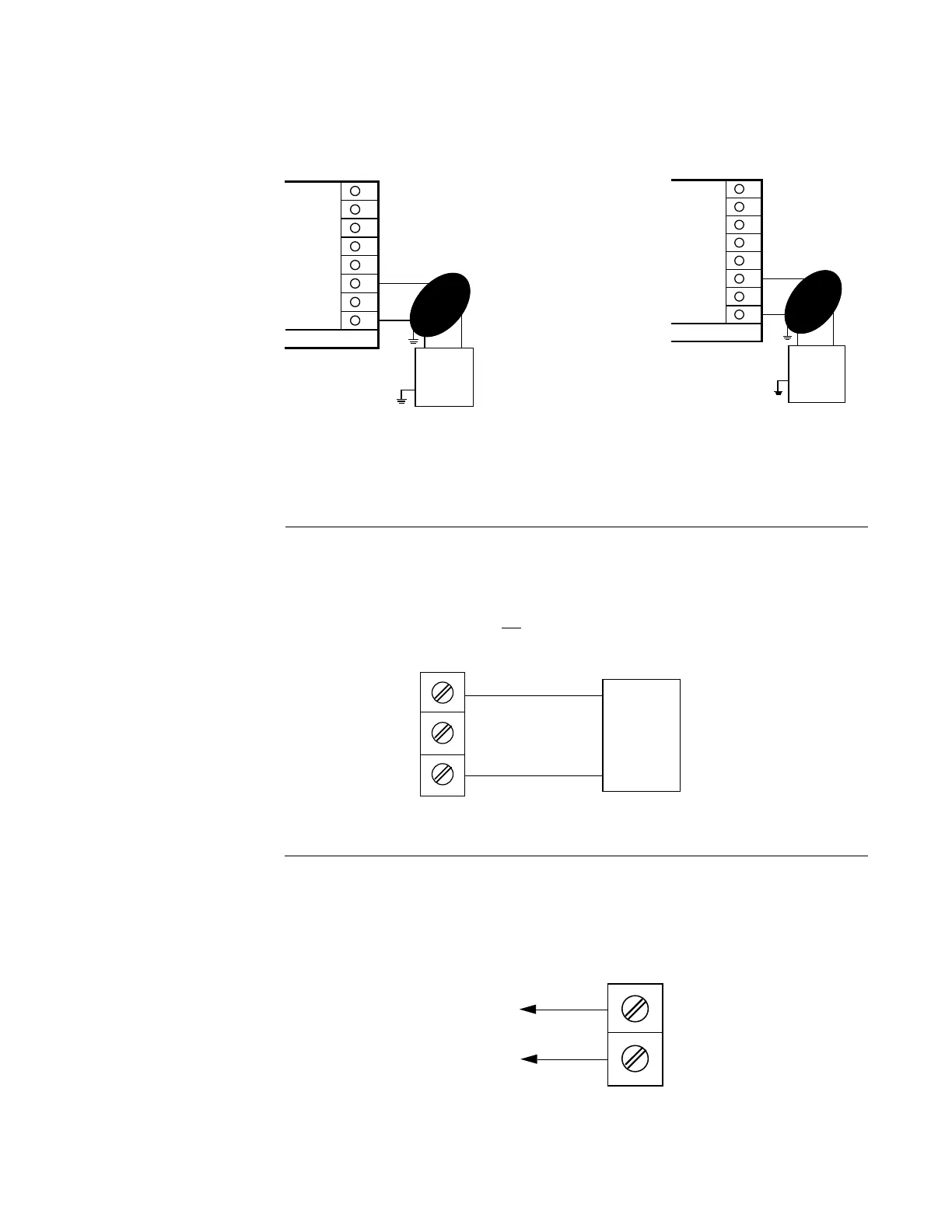

Make connections as shown below. Terminal 3 is positive (+) and terminal 1 is negative (-).
Be sure the input conditioning jumpers are properly positioned for the input type selected.
See Figure A-2 Processor Board, page 64 and Figure A-3 Option Board, page 65 or 66.
Note the 250 ohm shunt resistor is
not required.
FIGURE 2-9B
24 Volt Power Supply (XA Option)
Make connections as shown below. Terminal G is positive (+) and terminal H is negative (-).
Be sure the input conditioning jumpers are properly positioned. See Figure A-2 Processor
Board, page 64 and Figure A-3 Option Board, page 65 or 66.
8
7
6
5
4
3
2
1
MILLIVOLT DC INPUT
+
-
MILLIVOLT DC
SOURCE
50 MILLIVOLT DC
MAXIMUM
Rear View
Shielded Twisted
Pair
8
7
6
5
4
3
2
1
VOLT DC INPUT
+
-
VOLT DC
SOURCE
5 VOLT DC
MAXIMUM
Rear View
Shielded Twisted
Pair
+3
2
-1
+
-
Two Wire
Transmitter
H -
G +
24VDC
