Partlow MIC 6000 - Power Supply Board; Appendices

PAGE 63
Appendix A
Board Layout - Jumper Positioning

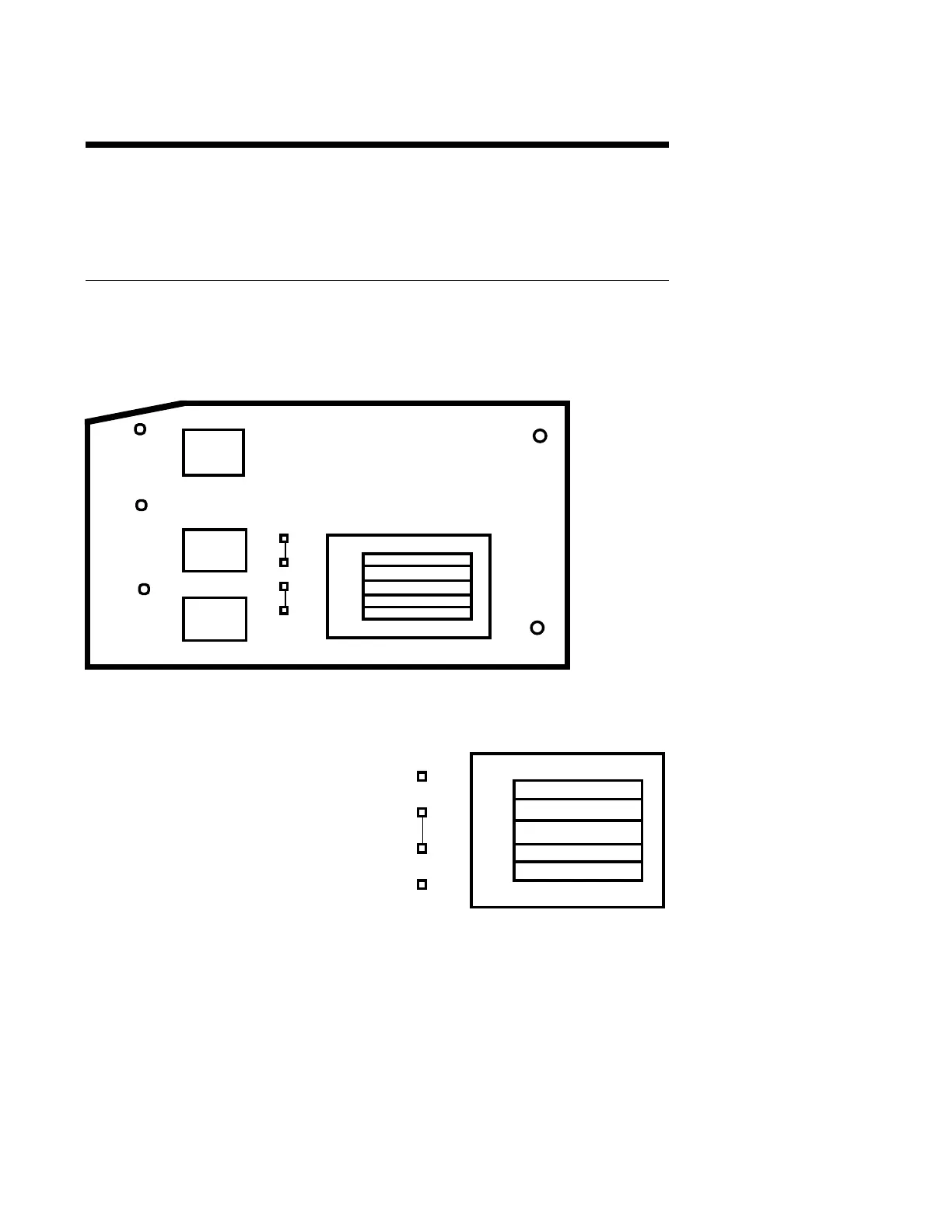

FIGURE A-1 - Power Supply Board
RELAY A
RELAY B
RELAY C
TOP
FRONT
OF UNIT
COMPONENT SIDE
JU6
JU5
JU4
230 VAC UNITS MAY BE
FIELD CONVERTED
TO 115 VAC BY MOVING
JUMPERS AS SHOWN
ABOVE .
(115 VAC UNITS CANNOT
BE FIELD CONVERTED TO
230 VAC!!)
230 VAC JUMPER POSITION
115 VAC JUMPER POSITION
JU6
JU5
JU4
R14
R13
R12
T1
T1
K1
K2
K3
