3 Program Mode EPro on or oFF on
4 Tune Mode Etun on or oFF on
5 Manual (Stby) Mode ESby on or oFF on
6 Profile Continue Mode EPC on or oFF oFF
7 Profile Entry Mode EPE on or oFF on
8 Setpoint Change ESPC on or oFF on

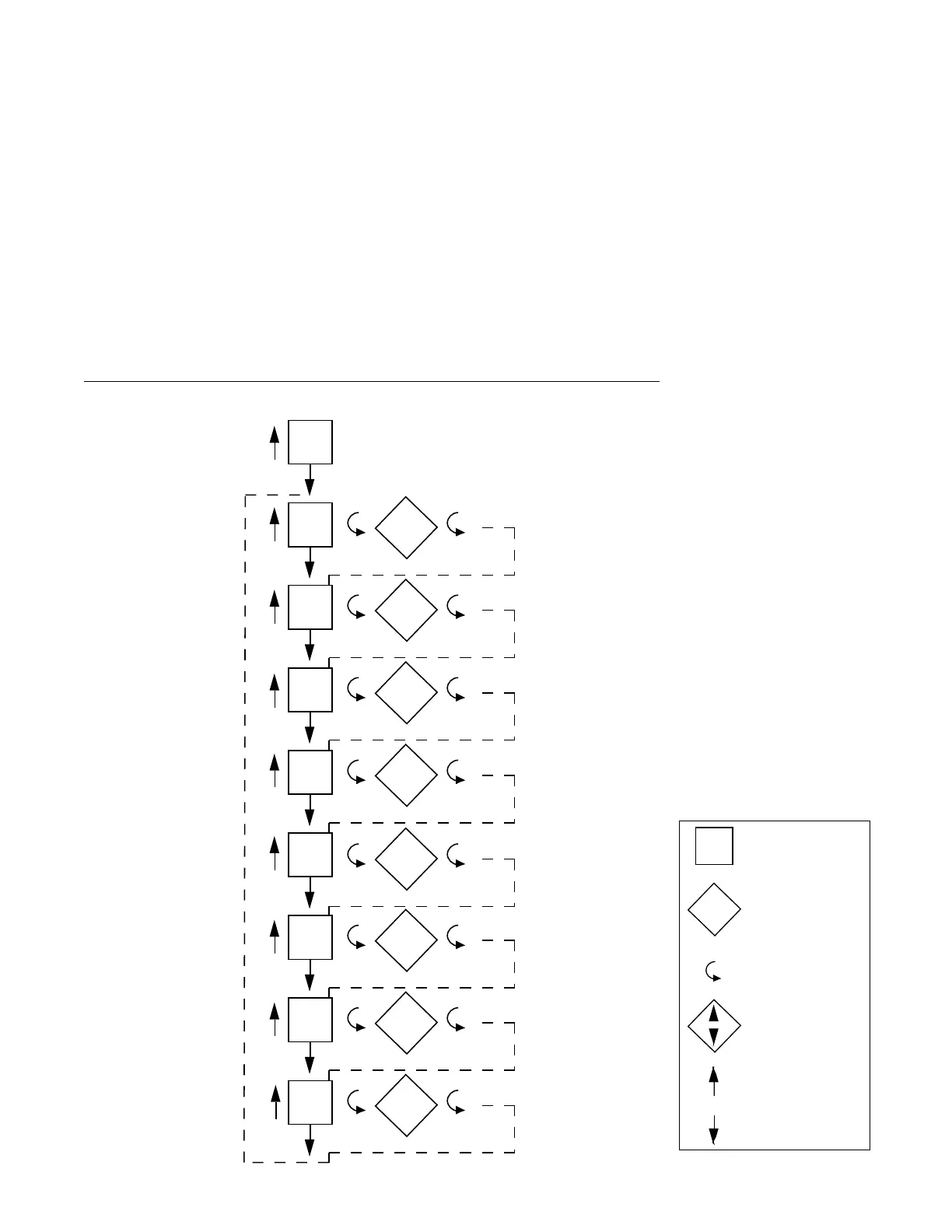

ENABLE MODE FLOW CHART
ECAL
EPro
Etun
ESbY
EtSt
EnAb
EPE
ESPC
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
EPC
ON
OFF
Actual Display
On/Off Display -
Use arrow keys
to turn on or off
Scroll Key
Numeric Display -
Use arrow keys
to change value
Up Arrow Key
Down Arrow
Key
DISPLAY AVAILABLE FACTORY YOUR
STEP DESCRIPTION CODE SETTINGS SETTING SETTING
