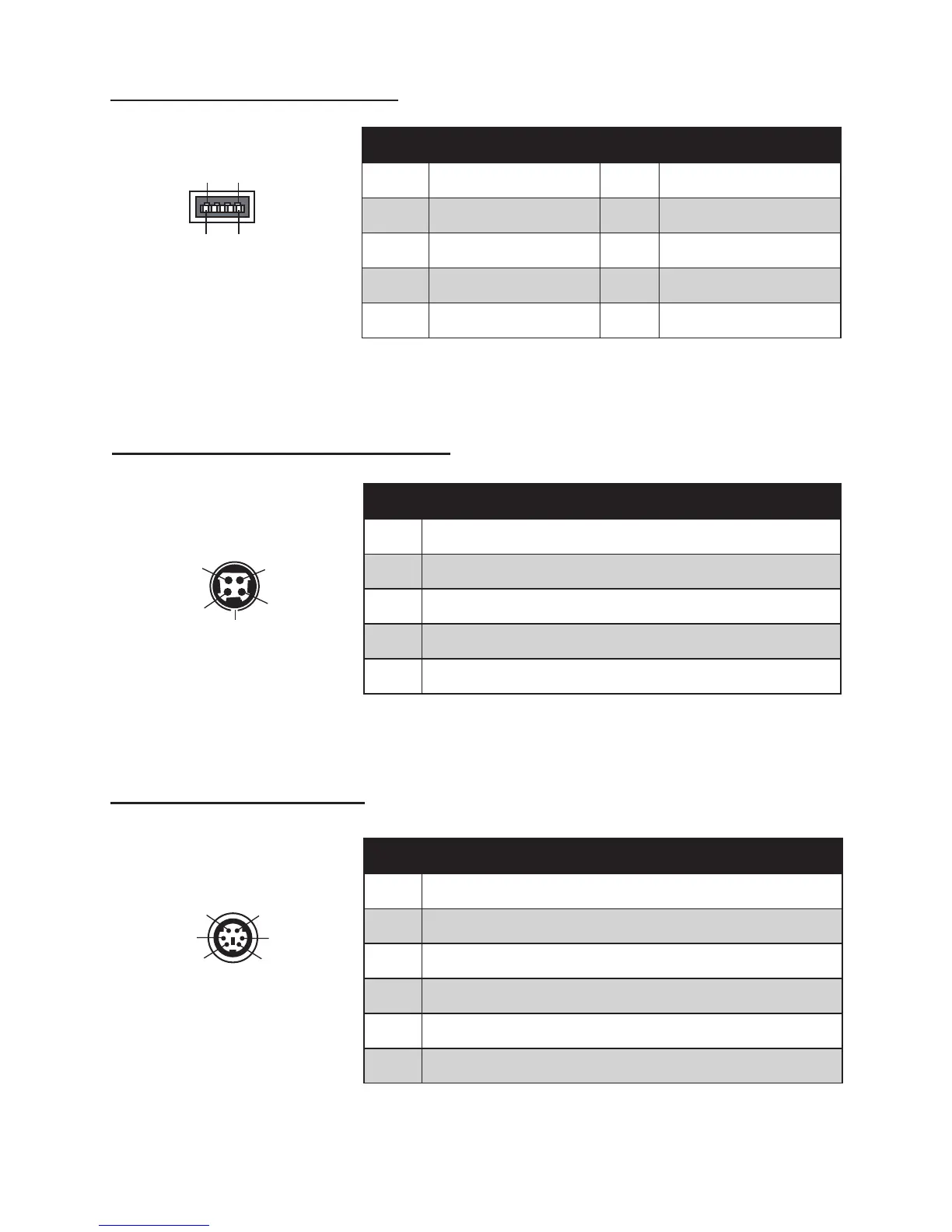

6 CHAPTER 1 GETTING STARTED
PS/2 connector pin dene
1
3 4
5 6
2
Pin Signal
1 Keyboard Data
2 NC
3 GND
4 VCC
5 Keyboard Clock
6 NC
DC 12V input connector pin dene
1
2
3
4
5
Pin Signal
1 V+
2 V+
3 GND
4 GND
5 GND
USB 3.0 connector pin dene
1
5
4
9
Pin Signal Pin Signal
1 USB Vcc 6 StdA_SSTX-
2 USB - 7 GND_DRAIN
3 USB + 8 StdA_SSRX+
4 USB GND 9 StdA_SSRX-
5 StdA_SSTX+
