Partner SP-850 - Mainboard Jumper; Figure 4.2 SP-850 Mainboard Jumper

49
Mainboard jumper
CMOS_CLEAR
INVERTER POWER
LVDS POWER
CASH DRAWER

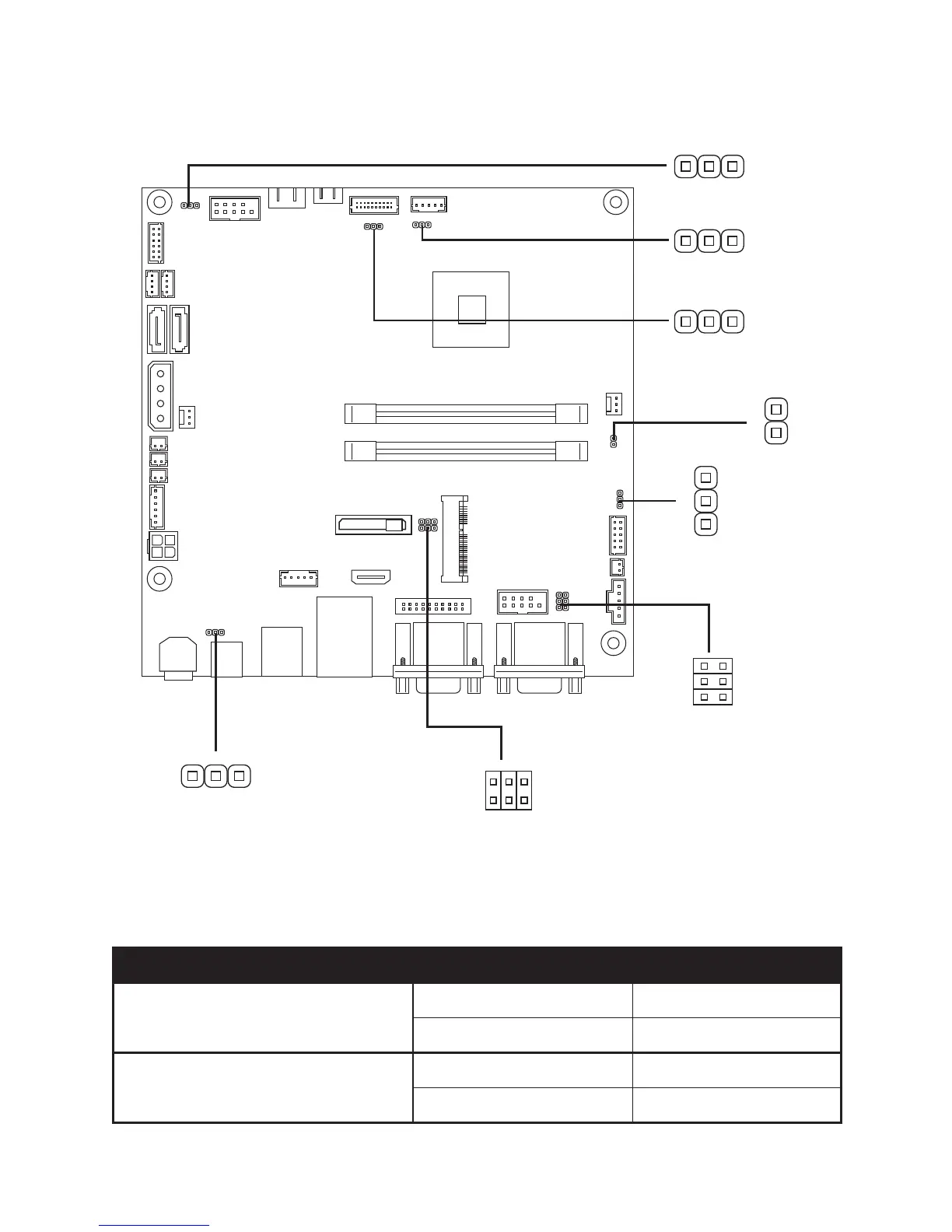

Figure 4.2 SP-850 mainboard jumper
1
1
1
1
1
1
5
5
2
2
6
6
Jumper Setting Description
CMOS_CLEAR
1-2 (default) Normal
2-3 Clear
INTRUDER POWER
Inverter voltage selection
1-2 +5V
2-3 (default) +12V
TOUCH
COM3 POWER
COM4 POWER
ME
1
1
