DATASHEET
α
2
ACIO8136 I/O expansion card
(35) Relay contact output.
(36) System input/output connectors.
(37) Audio input sensitivity control.
(38) Balanced audio input.
(39) Service power supply with protection.
(40) Common input negative contact.
(41) Optoinsulated inputs.
(42) Socket for supplying local power to the card.

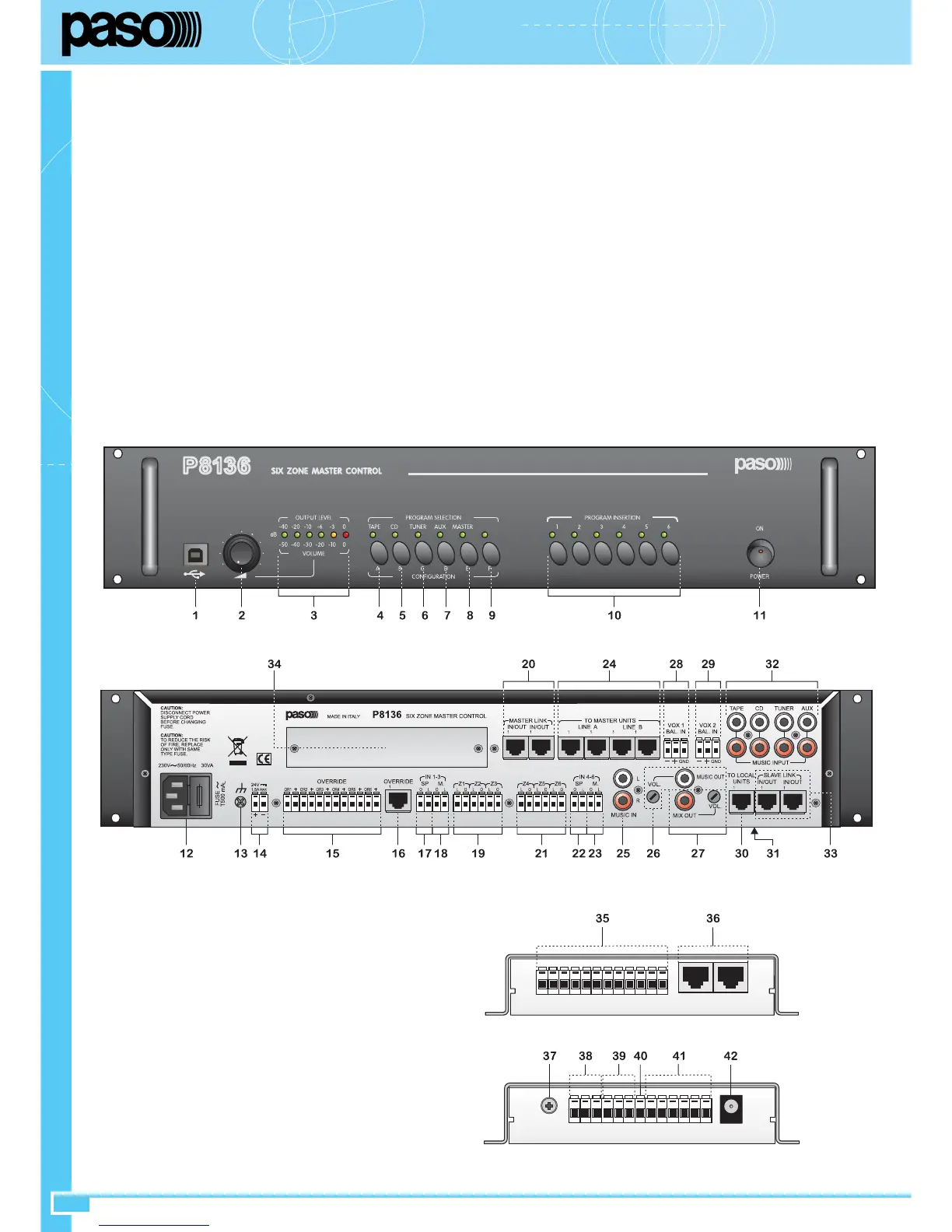

1. NUMBERED REFERENCES
P8136
Master
Control Panel
(1) USB connector.
(2) Volume control.
(3) VuMeter/Volume output level indicator.
(4) TAPE music input selection and associated volume control.
(5) CD music input selection and associated volume control.
(6) TUNER music input selection and associated volume control.
(7) AUX music input selection and associated volume control.
(8) Selection of music from master units and associated volume
control.
(9) Key for confirming chosen configuration.
(10) Activation of music/programming in the zones.
(11) Mains switch with ON/OFF lamp.
(12) Mains plug with built-in fuse.
(13) Frame connection.
(14) Terminals for external 24 VDC power supply.
(15) Terminal strip for override control output.
(16) RJ45 socket for override control output.
(17) Voice input terminal strip, zones 1 to 3.
(18) Music input terminal strip, zones 1 to 3.
(19) Output terminal strip, zones 1 to 3.
(20) Connection between master units.
(21) Output terminal strip, zones 4 to 6.
(22) Voice input terminal strip, zones 4 to 6.
(23) Music input terminal strip zones 4 to 6.
(24) Connectors (Lines A and B) for connection to the Master Units*.
(25) Local music source inputs.
(26) Music output (MUSIC OUT) and associated volume control.
(27) Voice /music output (MIX OUT) and associated volume control.
(28) Balanced VOX 1 input.
(29) Balanced VOX 2 input.
(30) Connector for connection to the Local Units*.
(31) Chime level control (accessible from the bottom of the apparatus).
(32) Music inputs (sources pre-amplified at line level).
(33) Connectors for connecting P8236 slave units.
(34) Compartment for optional ACMG8136 card.
*
Microphone stations and I/O cards.
