Technical description
Unit types
FOCUS 200 series
Ventilation unit with cross-counterflow heat exchanger made from plastic
FOCUS F 200 series
Ventilation unit with cross-counterflow enthalpy exchanger with polymer membrane
Air connection design versions

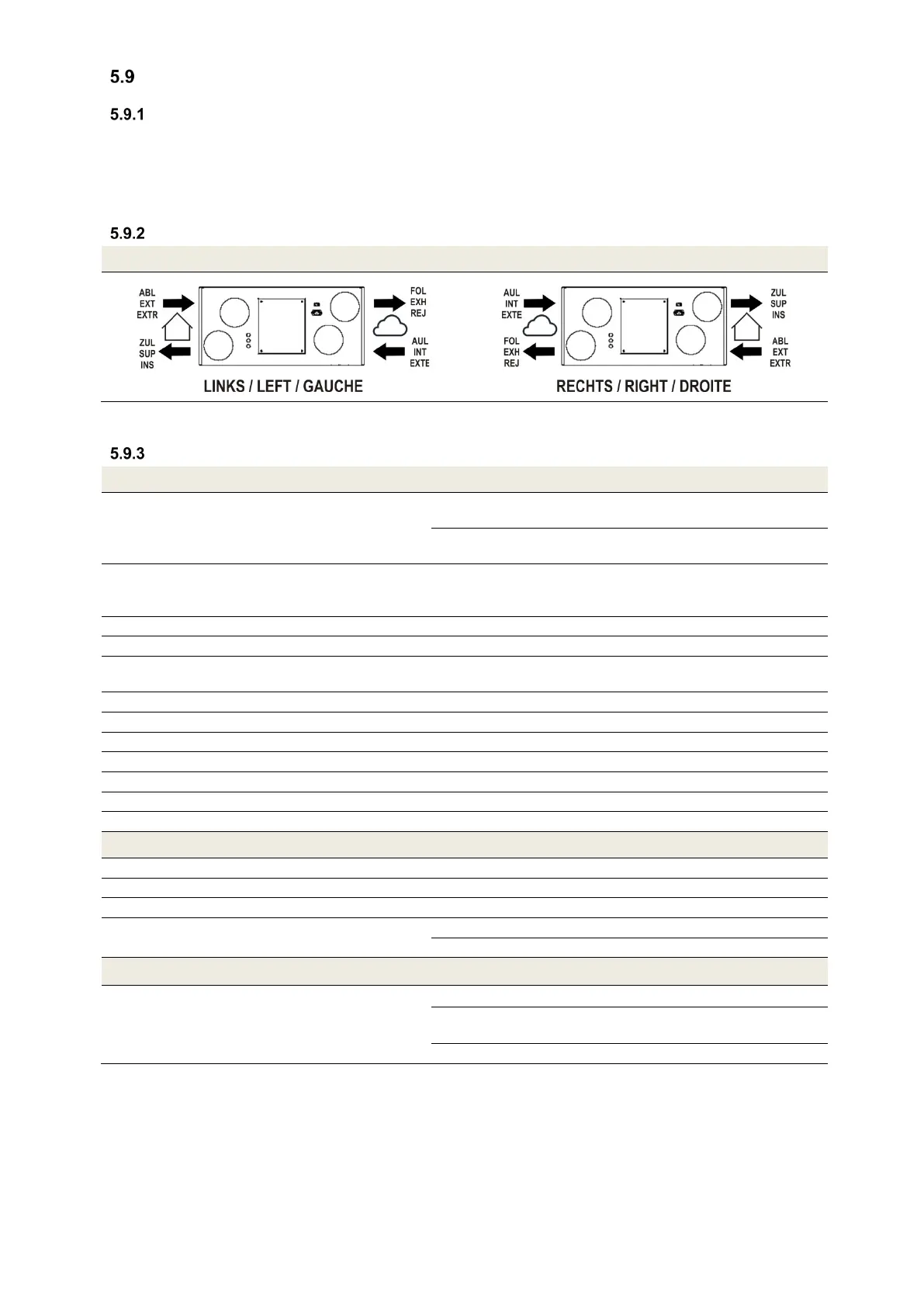

Version with air connections on LEFT Version with air connections on RIGHT
Table 40: Overview of air connection design versions
Technical specification
General specifications Description / Value
Heat exchanger type
Cross-counterflow heat exchanger made from plastic
(FOCUS 200 series)
Cross-counterflow enthalpy exchanger with polymer
membrane (FOCUS F 200 series)
Housing / Interior lining
Galvanised sheet steel, powder-coated, free of thermal
bridges; interior lining is made of expanded polypropylene
(EPP) to provide thermal and sound insulation
Pipe connections
DN 125 (sleeve size)
Weight
25 kg
Electrical connection
230 VAC, 50–60 Hz; 2 m mains cable with non-heating
device plug connection
Connection power
140 W
Protection class
I
Degree of protection
IP 30
Temperature range for transport and storage
-20 to 50 °C
Temperature range for moving air
-20 to 50 °C
Temperature range at the mounting location
Permanently frost-free
Mounting position
Horizontal wall mounting or on a floor stand (optional)
Operation data Value
Volume flow
45 to 200 m³/h
Efficiency criterion
0.31 Wh/m³ (at 135 m³/h / 100 Pa)
Waste heat recovery according to PHI
91% (at 135 m³/h / 100 Pa); FOCUS 200
Sound pressure level, distance of 3 m (unit
emission according to DIN EN ISO 3743-1)
30 dB(A) (at 155 m³/h / 100 Pa)
24 dB(A) (at 200 m³/h / 100 Pa)
Certificates, approvals FOCUS 200
Passivhaus certificate
Certificate according to NBN EN
308
DIB approval AbZ Z-51.3-272
Table 41: Technical specifications Focus (F) 200
