Checking the scope of delivery
If the delivered product is found to be damaged or incomplete, please contact the supplier immediately. Included in
the scope of delivery are:
• FOCUS ventilation unit, check the type label to make sure that the unit is the right one (type, version as per
type label)
• Fastening sheet with two self-adhesive spacers (rubber buffers)
• 230 V mains cable with non-heating device plug connection, 2 m long
• CAT5 network cable, 1.5 m long
• Adapter board
• Adapter board housing made of transparent plastic
• Control panel(s), type and number depending on the order
• Instruction manual
• Product labels showing energy efficiency
Mounting
The FOCUS unit must be installed horizontally. Before mounting the unit on a wall, check that the wall construction
has the necessary load-bearing capacity (net weight of the FOCUS unit is 25 kg) and that the fastening sheet can be
mounted securely. In case of unsuitable walls, we recommend using the floor stand for fitting to the floor (optionally
available). This prevents potential transfer of structure-borne noise as much as possible.

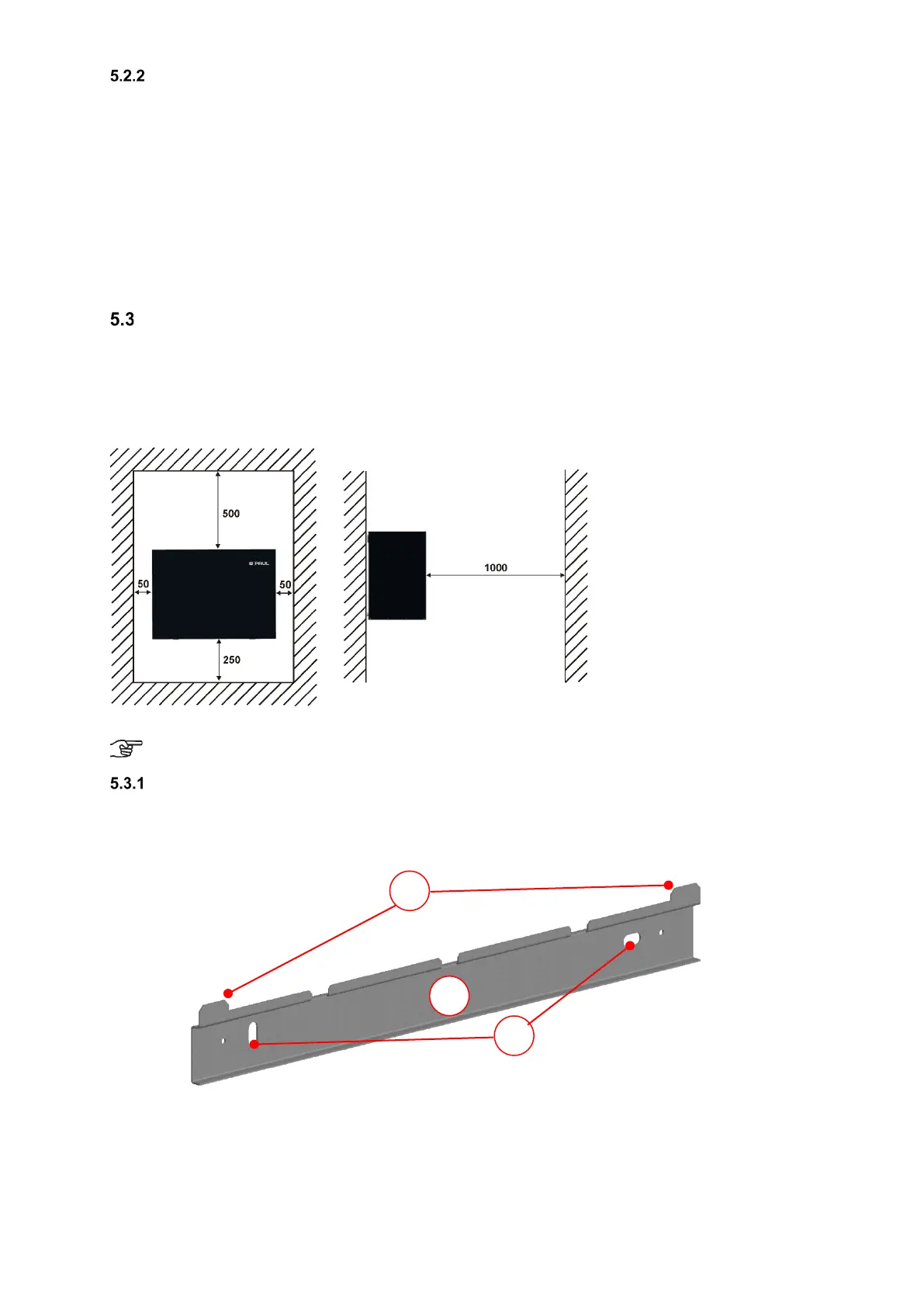

The distances from adjacent surfaces shown in Fig. 15 must be observed. Please note that these are not shown to
scale. The surfaces are allowed to be made from flammable materials.
Fig. 15: Distances from adjacent surfaces in mm
Make sure you leave at least 1 m clear in front of the FOCUS unit for subsequent maintenance work.
Wall mounting
Proceed as follows for wall mounting:
1. Mount the supplied fastening sheet A horizontally on the wall with the lugs B pointing upwards. Use the slotted
holes C to fix it in place with suitable fixing materials.
Fig. 16: Fastening sheet for wall mounting
