Control panels
With the TFT control panel or LED control panel you can configure and operate the system from a central point. Both
control panels are only suitable for use in indoor areas.
Main components

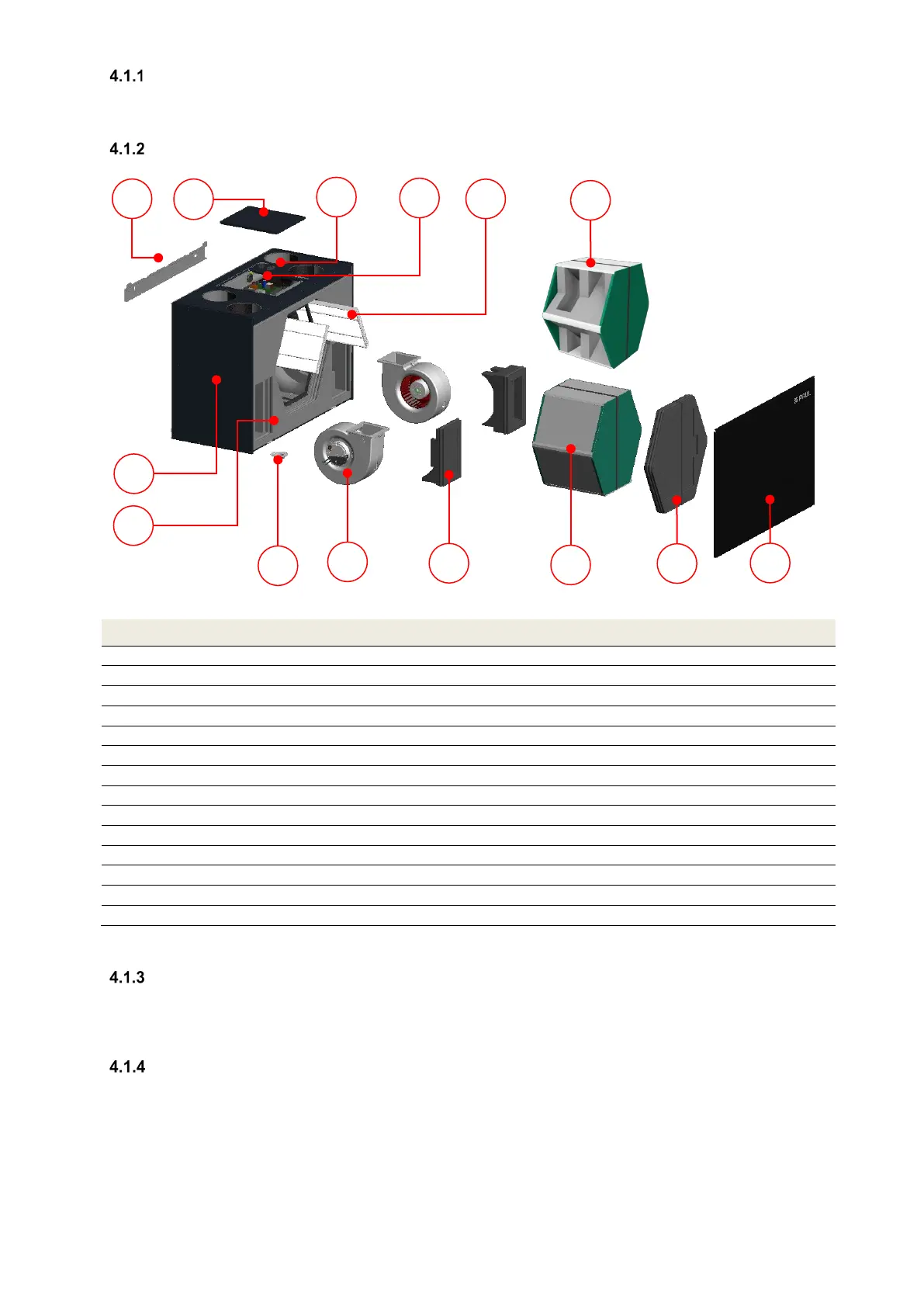

Fig. 1: Main components of the FOCUS unit
Item Description
A
Fastening sheet
B
Control cover plate
C
Interface sheet with JEC unit plug and RJ-45 fitted coupling
D
Control boards
E
Filter (2x)
F
Summer box – Module that keeps the airflows thermally separate
G
Housing made from coated sheet steel
H
EPP moulded parts
I
Condensate drain screw connection
J
Fans (2x)
K
EPP foam cover for fan (2x)
L
Heat exchanger with strap and condensate tray
M
EPP foam cover with strap for filter and heat exchanger
N
Front panel made from coated sheet steel
Table 1: FOCUS main components
Type label
The type label identifies the product unequivocally. You will need the details on the type label for the safe use of the
product and in case of questions for service. The type label is located on the same side of the unit as the air
connections and must remain permanently attached to the product.
Frost protection
The FOCUS unit is equipped with automatic frost protection, which prevents the heat exchanger from freezing should
the outdoor air temperature drop to a very low level. Depending on the set frost protection mode, if the outdoor air
temperature drops below a certain limit, the fans are temporarily shut off.
The automatic frost protection for screening the supply air temperature protects an optional downstream hydraulic
heat register from freezing and temporarily switches off the fans if the supply air of the fans drops below a certain
limit.
