Assembly Instructions

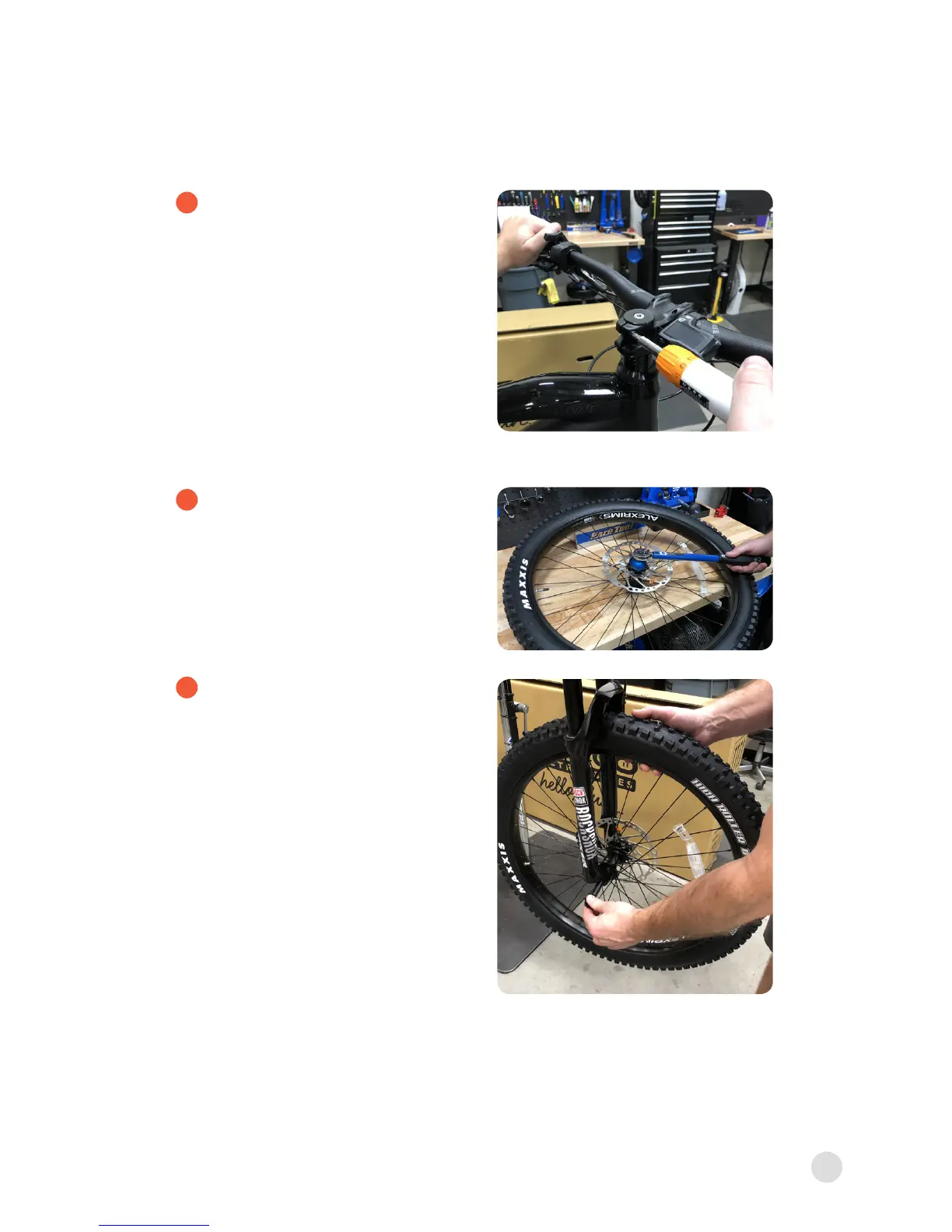

ASSEMBLY INSTRUCTIONS
Attach the stem and
handlebar onto the front
fork with the recommended
torque specication of
8Nm. The handlebar and
component angle should be
set at a fairly comfortable 45
degrees or so that the brake
levers are inline with your
hands when on the bike.
Install the disc brake rotor
onto the front hub and
torque the lockring to the
manufacturer specication
of 40Nm.
Install the front wheel by
inserting the hub between the
fork dropouts, slide the thru-
axle into the fork lowers and
through the hub, and thread
the thru-axle into the fork
clockwise until it is snug. Once
the thru-axle is snugly threaded
into the fork, close the quick
release lever. This should take a
medium amount of force; if the
lever is too tight or loose, adjust
the tension with a 2.5 mm Allen
key. Make sure that the thru-
axle lever is tight enough so the
lever does not open on its own.
