PEERLESS LC SERIES User Manual

. ]_[--_t'_]_ ['_k'i]_ -o_I_]_], _J;th'_l [:1_JIfll_[_
J
E
P
Option 1
(Right Hand Shown,
Left Hand WouEd Be Reversed)
F
C
I
E
P
Option 2
P
C
A
A
B
C
D
E
F
3/4" X 3/4" X 1/4" Reducing Tee, Malleable
3/4" Cross, Malleable
3/4" Plug, Malleable
3/4" x 1/4" Hex Bushing, Malleable
1/4" x 3" Nipple, Brass
3/4" x 3" Nipple, Black Iron
G 3/4" x4" Nipple, Black Iron
H 3/4" x 5" Nipple, Black Iron
J 3/4" x 6" Nipple, Black Iron
K Steam Gauge
P Steam Pressure Control
(NOTE: Some local codes may require larger piping)

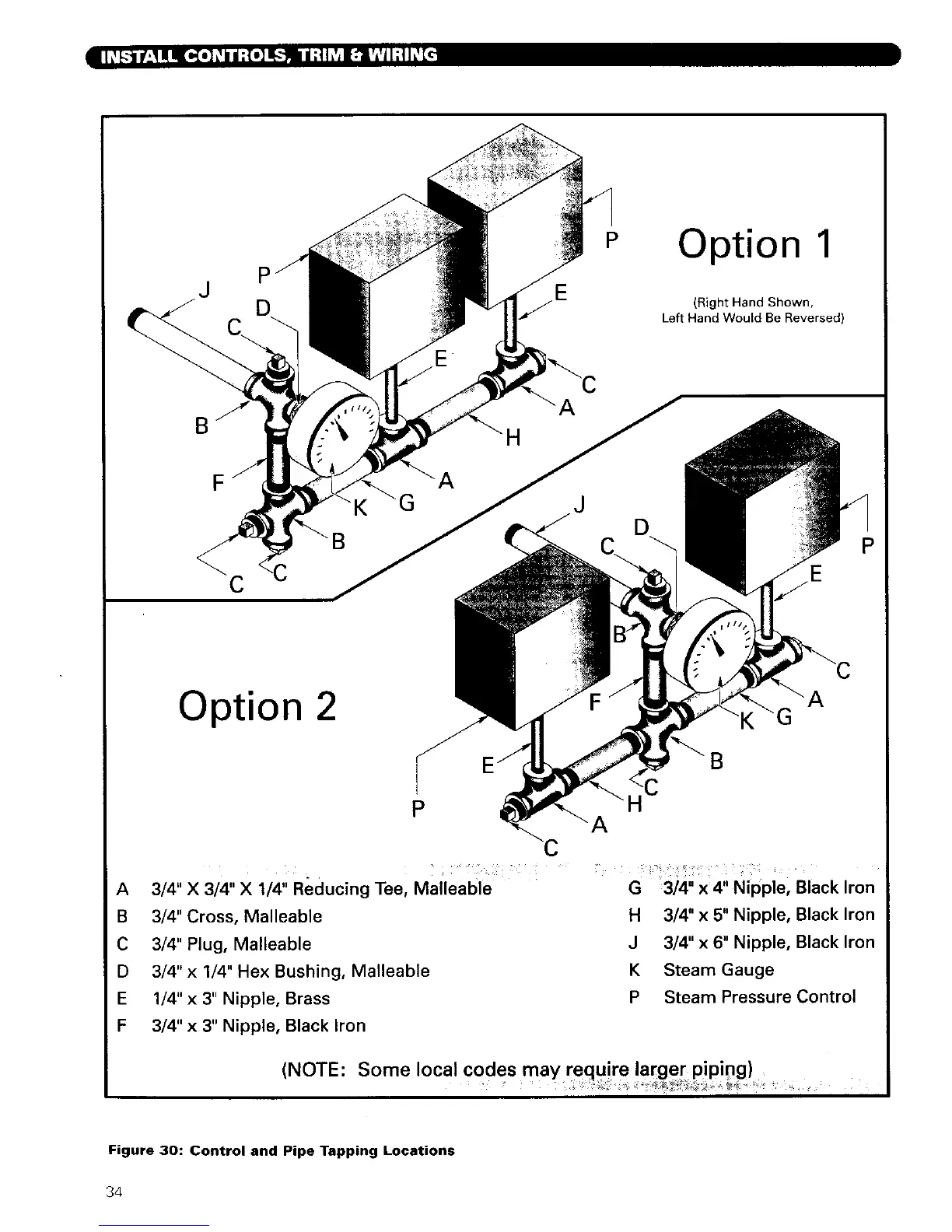

Figure 30: Control and Pipe Tapping Locations
34
