PEERLESS LC SERIES - Page 44

!
1/2" X 4" Brass Nipples (2 Req'd)
1/2" Brass Close
Nipples (2 Req'd)
/>
1/2" Brass
Union
-- Burner Cut-Off Level
/-- Conduit
Connection

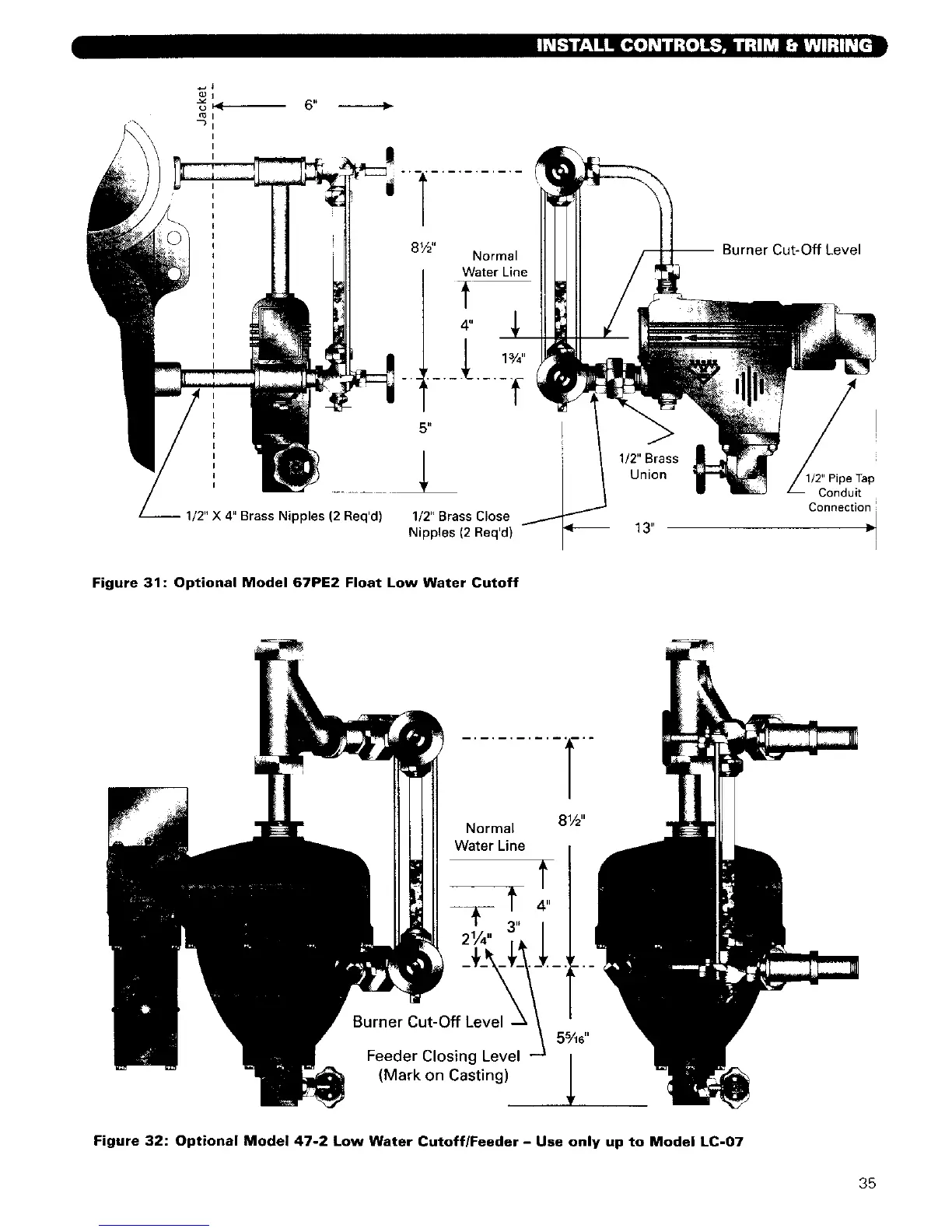

Figure 31: Optional Model 67PE2 Float Low Water Cutoff
Normal
Water Line
Burner Cut-Off Level
Feeder Closing Level
(Mark on Casting)
81/2 ''
t
Figure 32: Optional Model 47-2 Low Water Cutoff/Feeder - Use only up to Model LC-O7
