INSTALLING THE UNIT

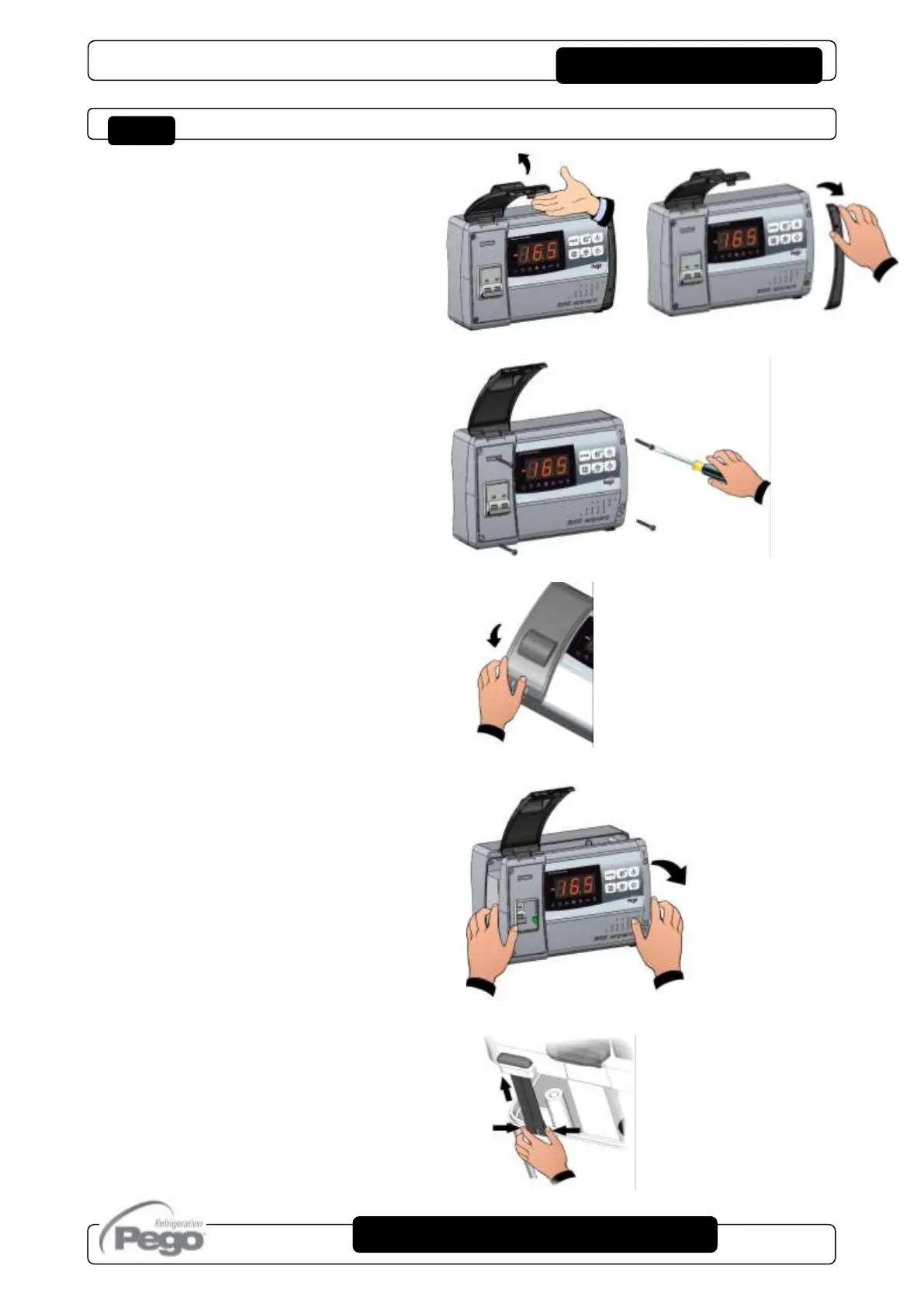

Fig. 1: Raise the transparent cover
that shields the magneto-thermal
cut-out switch and remove the
screw cover on the right-hand
side.
Fig. 2: Undo the 4 fixing screws at the front
of the box.
Fig. 3: Close the transparent cut-out switch
cover.
Fig. 4: Open the front of the box, lift it and
slide the two hinges out as far as
they will go.
Fig. 5: Press on the sides of the hinges to
remove them from their seats and
so remove the front panel
completely.
