Pellas X S.Control User Manual

26
150
1572,0
1573,1
1574,2
CT4-P (weather)
Temp.
°C
Min.
Ω
Nom.
Ω
Max.
Ω
-30
609
624
638
-20
669
684
698
-10
733
747
761
0
802
815
828
10
874
886
898
20
950
961
972
12.10 OPTICAL SENSOR CONNECTION
Connect the sensor accordingly to point
12.6. Readings of data from optical sensor is
possible in menu:
Information→ Flame
12.11 MIXERS ROOM TEMPERATURE
CONNECTION
Room thermostat after disconnecting wires
reduces preset temperature in mixer circuit.
Parameter is in menu:
Mixer settings 1-5 – Mixer room
temperature
Value of parameter should be chosen in such
a way that after activating room thermostat,
temperature in the room should decrease.
Other settings according to point 8.16.
In case of room panel Room Control/ Room
Control TOUCH make sure that this
parameter is correctly chosen Thermostat
selection:
Service settings – Mixer settings 1-5 –
Mixer room thermostat
Example on connection and configuration of
Room Control is shown on Pic.21.
12.12 BOILER ROOM THERMOSTAT
CONNECTION
Room thermostat for boiler circuit can switch
off the burner operation or switch off the CH
boiler pump. In order to thermostat switch
off boiler operation select Thermostat
selection for universal or ecoSTERT1 (if room
panel Room Control/ Room Control TOUCH is
connected)
Service settings → Boiler settings →
Thermostat selection.
For thermostat switch on the CH boiler pump
(without switching off the boiler) set the
parameter Thermostat pump deactivating on
YES
Service settings → Boiler settings →
Pump off by thermostat
12.13 RESERVE BOILER CONNECTION
The controller can control work of additional
(gas or oil) boiler. It is not necessary then to
manually activate or deactivate this boiler.
Additional boiler will be activated when boiler
for pellet loses temperature and will
deactivate when pellet boiler reaches its
proper temperature. Connection to additional
boiler should be done by a qualified installer,
according to technical data of this boiler. The
additional (spare) boiler should be connected
by relay with terminals 39-40.

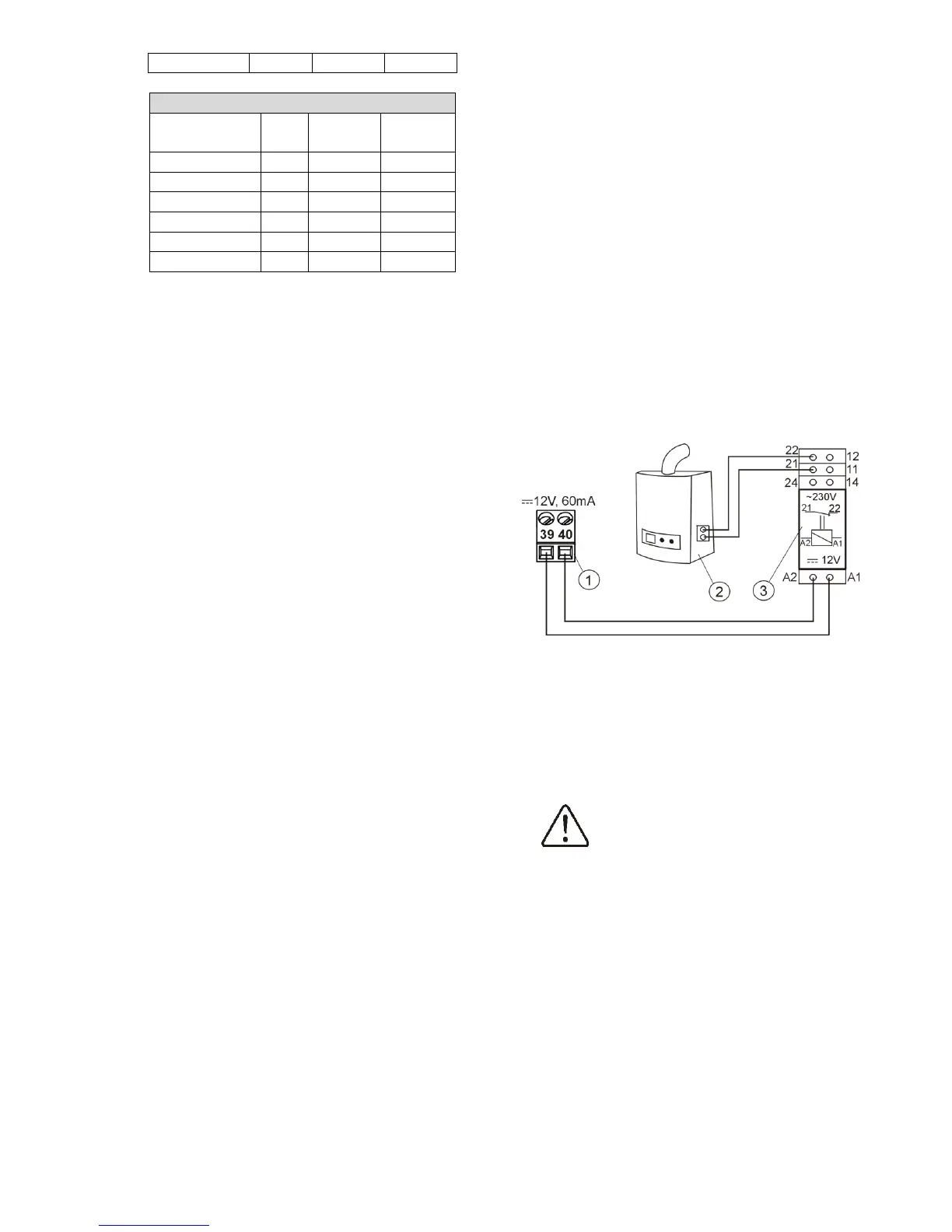

Pic. 23 Sample scheme of system for additional boiler
connection to the controller, where: 1 – controller, 2 –
additional boiler (for oil or gas), 3 – relay RM 84-2012-
35-1012 and holder GZT80 RELPOL
The controller is not equipped with
transmitter as standard option.
Assembly of relay should be
done by a person with proper
qualifications. According to valid
norms and regulations.
Control of reserve boiler by setting the
Output H mod A on Reserve boiler.
Menu → Service settings → Output H
mode A
Additionally to activate control over reserve
boiler set the parameter on value different
than zero in:
Service settings → Boiler settings →
Reserve boiler
Deactivating control over additional boiler is
done after setting zero value of switching off
for this parameter.
