TYING MACHINE FIXION 2
29_133084-G

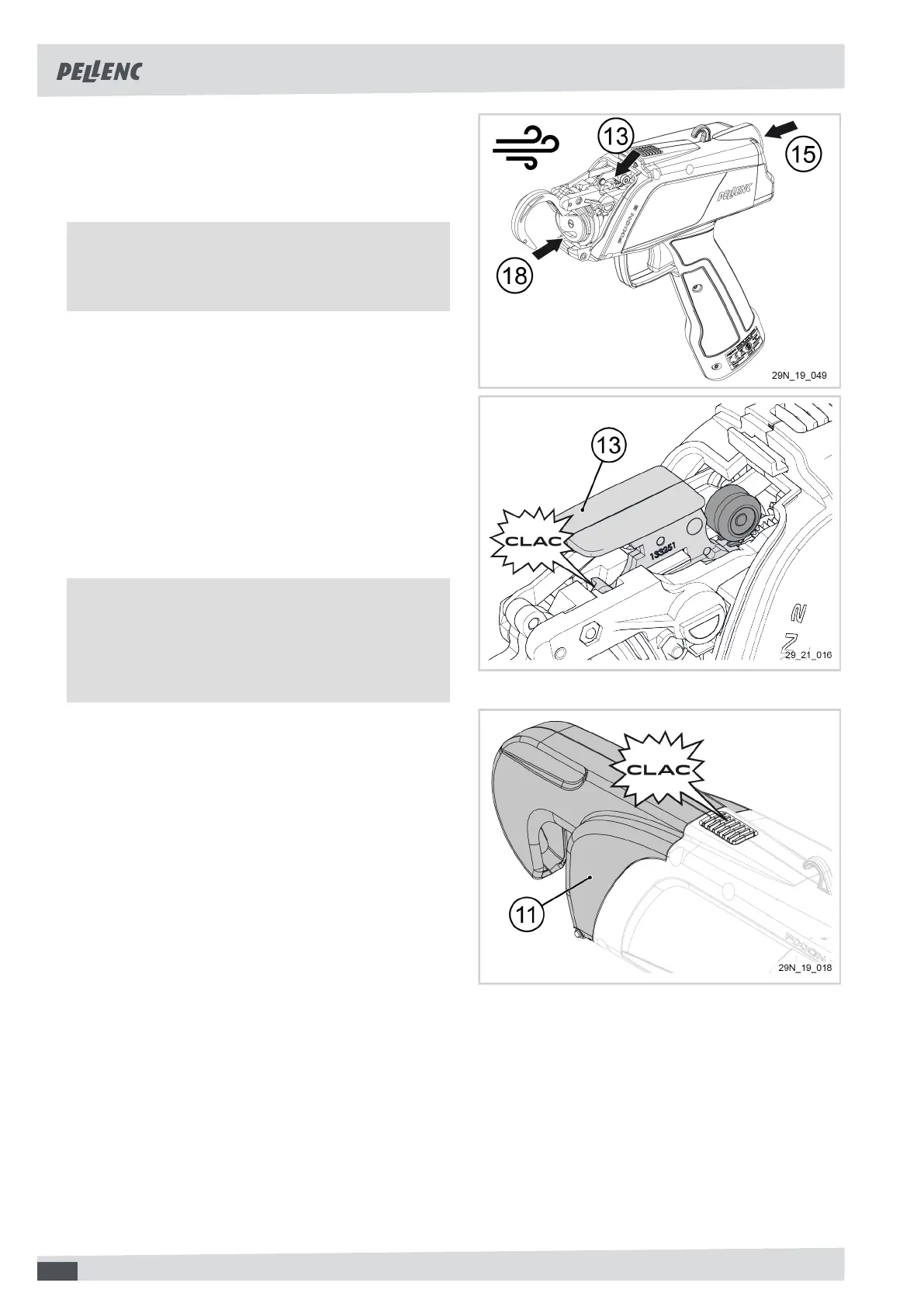

7. Using an air compressor, blow:
a. In front of the twister (18)
b. Interior of the tie cord inlet (15)
c. At the upper guide (13), towards the front.
8. Refit the support roller (31).
Important
Place the flat side of the support roller (31) against
the connecting rod.
9. Turn on the tying machine (on/off button (20), see
Section 5.1, “Tying machine on/off”).
10. Press the trigger to return the support roller to its
original position.
11. Turn off the tying machine (start/stop button (20),
see Section 5.1, “Tying machine on/off”).
12. Insert the upper guide (13) to the end stop, under
the support roller.
13. Clip the upper guide (13) into position.
Important
The top guide (13) should be slid all the way back
and then clipped to the front of the tool.
You should hear a "click".
14. Close the swivel dispenser (11).
30
