PRUNING SHEARS AND 150 BATTERY VINION & PRUNION
26_116772-H

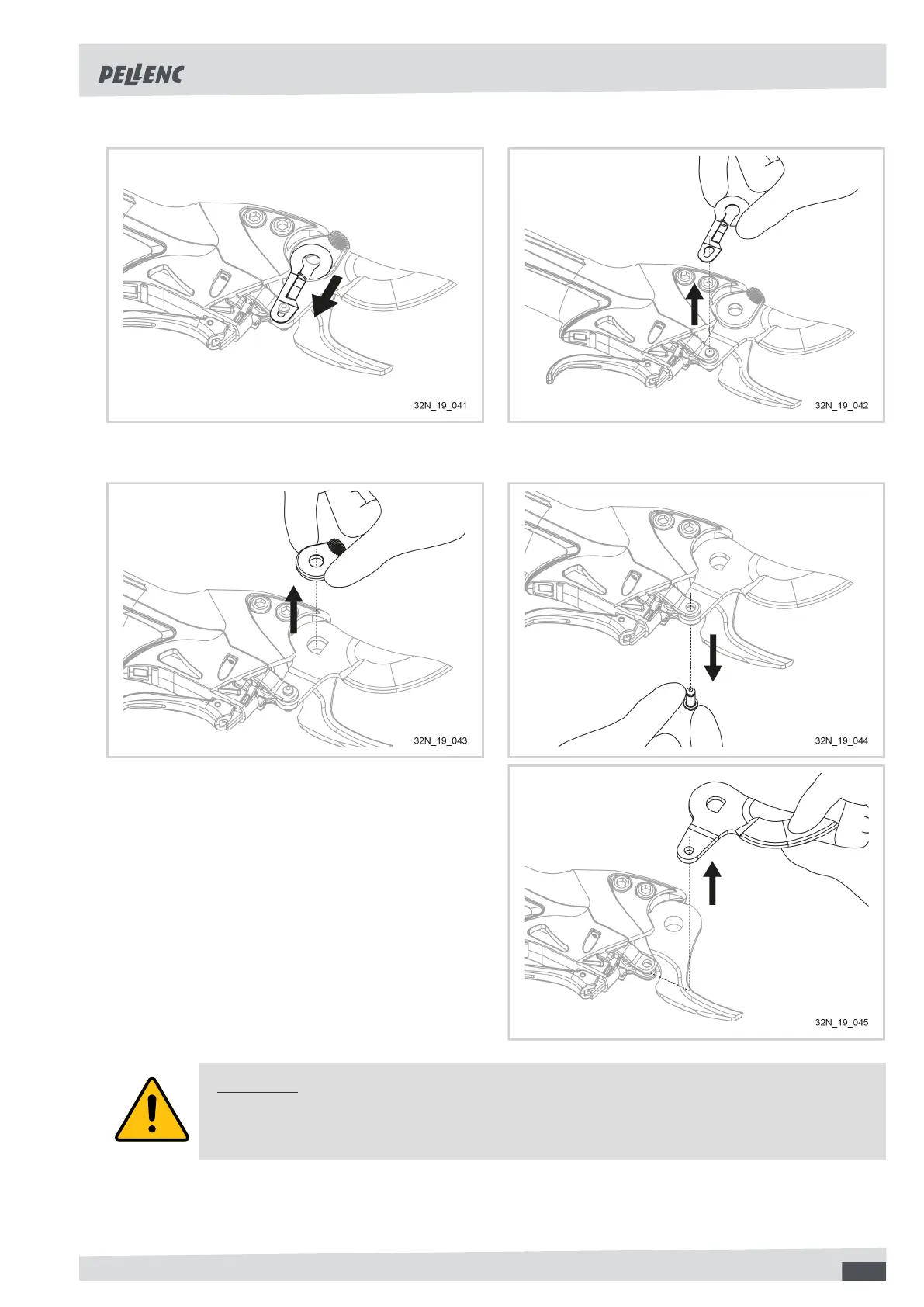

7. Remove the locking plate.
8. Remove the adjustment washer
9. Remove the shoulder pin and replace the worn
parts
10. Replace the blade on the hook after greasing the
seating, then replace the blade shaft and the clevis
pin.
11. Replace the adjustment washer and locking blade.
12. Tighten the wheel on the blade shaft.
13. Clip the guard in place again by pressing on its cen-
tre.
14. Tighten the blade shaft, as instructed in the previ-
ous section.
15. Reconnect the pruning shears.
Caution
Never operate the pruning shears without the blade and shafts, as this will cause damage to the
ball screw and the body of the shears.
29
