Table 10: System 450 web UI Analog Output Configuration page user actions, descriptions, and references
Callout Identifier item name User actions, descriptions, references
14 (Output) name Assign a 16-character or less web UI name for the analog output.
You are not required to assign an output name. When you assign an output name, the
assigned name is displayed on the Overview page, the System Configuration page, the
Output Configuration pages and the Sensor Configuration page.
In this example, the assigned name is Cond Fan 2.
15 Ok button Click Ok to save any changes you made on this web page and go to the System Configuration
page.
If you leave a web page before clicking Ok, any changes made on the page are not saved, and
the page reverts to the previous values.
16 Cancel button Click Cancel to cancel any changes you made on this web page, revert to the previous values
on the web page, and go to the System Configuration page.
Relay Output Configuration page
Figure 67 shows an example Relay Output Configuration Page for a System 450 control system that is set up and
operating. Table 11 provides descriptions, user actions, and references for the items called out in Figure 67.

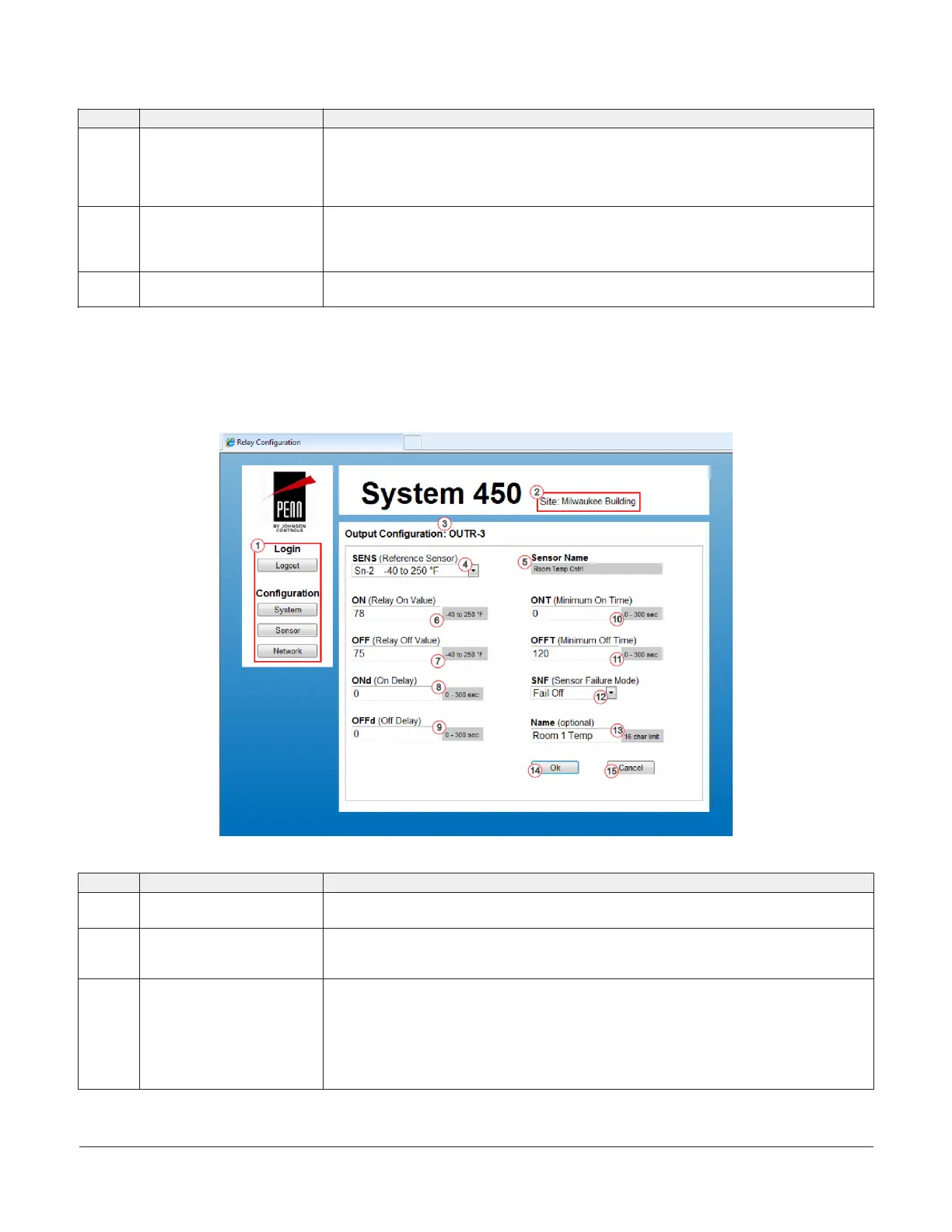

Figure 67: System 450 Relay Output Configuration page example
Table 11: System 450 web UI Relay Output Configuration page user actions, descriptions, and references
Callout Identifier item name User actions, descriptions, references
1 Logout and Configuration
buttons
See System Configuration page for descriptions and user actions regarding the System,
Sensor, and Network buttons.
2 Site name Displays the assigned site name. You can assign a website name on the Network
Configuration page.
See Network Configuration page for more information on assigning a site name.
3 Output configuration: OUTR-3 Displays the output type (OUTA or OUTR) and output number (-n), which are assigned by the
control module.
When you first power on a System 450 module assembly, the control module automatically
detects the connected outputs and assigns an output type and number for each connected
output.
In this example, a relay output is detected and identified in the number 3 position in the
module assembly (OUTR-3).
System 450 Series Control Module with Ethernet Communications Installation Guide 33
