Table 12: System 450 web UI Relay Output Configuration page user actions, descriptions, and references
Callout Identifier item name User actions, descriptions, references
17 Ok button Click Ok to save any changes you made on this web page.
Changing the network configuration values initiates a reset of the System 450
communications module, which overwrites the direct connection values and the new network
configuration values take effect. Therefore the direct connection is broken and you must
use the new network settings to establish connection with the control module or initiate a
manual reset of the control module (in the control modules local UI) to re-establish the direct
connection values.
If you leave a web page before clicking Ok, any changes made on the page are not saved, and
the page reverts to the previous values.
18 Cancel button Click Cancel to cancel any changes you made on this web page, revert to the previous values
on the web page, and go to the System Configuration page.
Network Settings Reset page
When you change the IP Address mode, Static IP Address, Subnet Mask, Default Gateway, or HTTP Port value and click
Ok, the communication controls module initiates a control reset and the Network Configuration Reset page (Figure 69)
appears while the control resets the network settings for the new values.

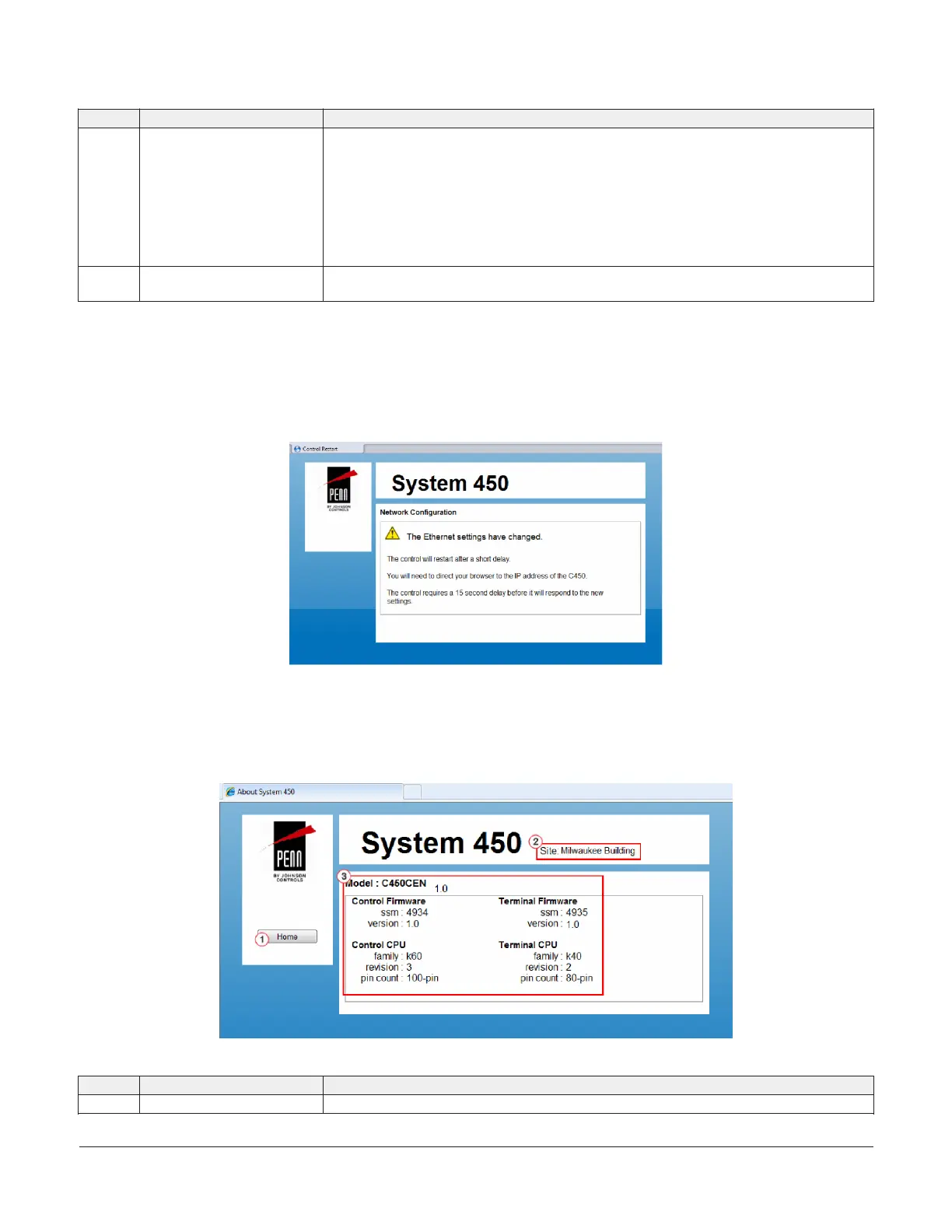

Figure 69: Network Configuration Settings Reset page
About page
Figure 70 shows an example About Page for a System 450 control module. Table 13 provides descriptions, user actions,
and references for the items called out in Figure 70.
Figure 70: System 450 About Page example
Table 13: System 450 web UI Relay Output Configuration page user actions, descriptions, and references
Callout Identifier item name User actions, descriptions, references
1 Home button Click Home to go to the System Overview page.
System 450 Series Control Module with Ethernet Communications Installation Guide 37
