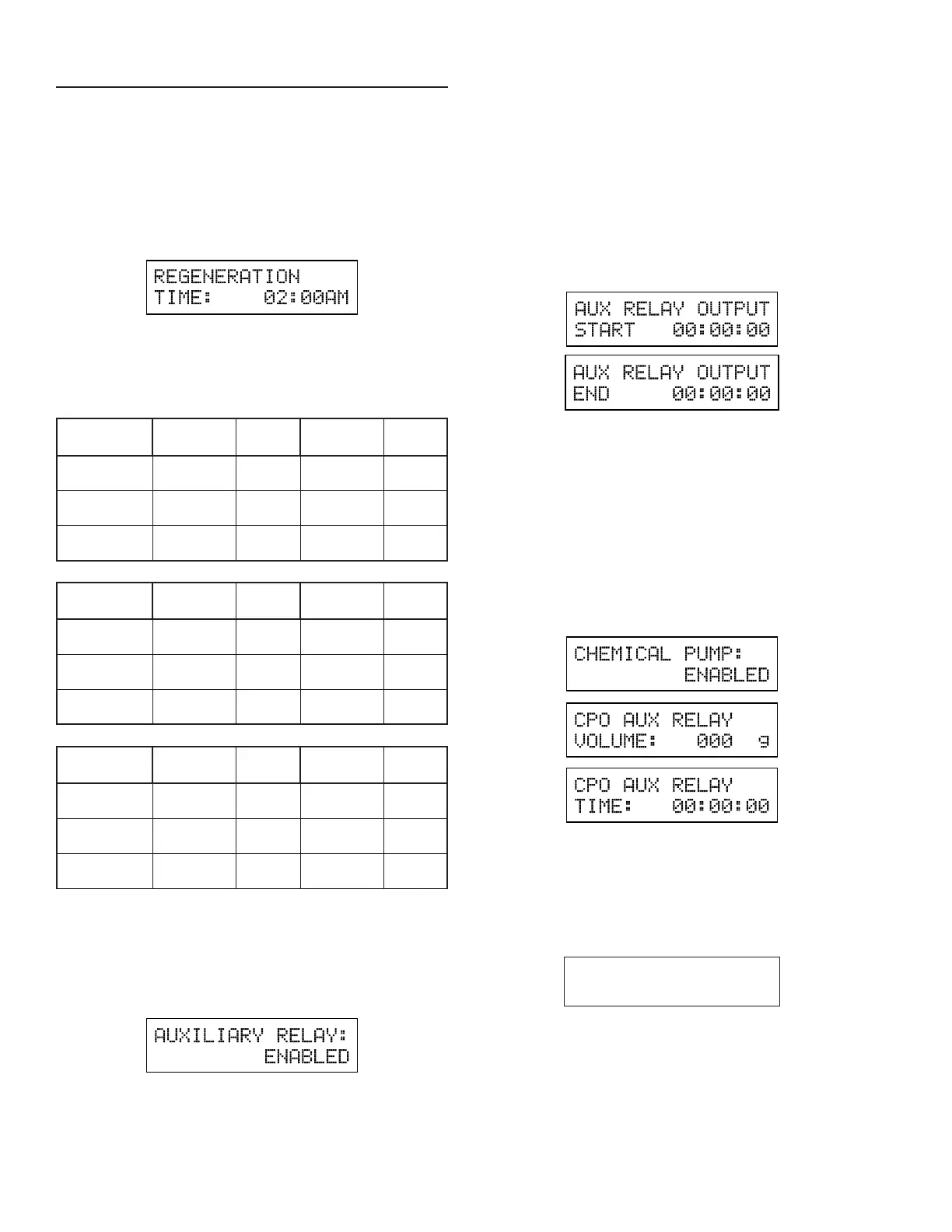

13. Regeneration Time
This program step sets time of day for a delayed regeneration
to occur, or regeneration day override.
Default U.S.: 02:00 AM
Default Metric: 02:00 HR
1. Use the Shift button to select the digit you want to modify.
2. Use Up or Down buttons to adjust this value.
3. Press the Extra Cycle button.
14. Regeneration Cycle Steps
This program step programs the Regeneration Cycle step times
1 through 5. Please refer to the chart below for regenerant flow
default cycle steps and times.
Regenerant
Flow
Cycle 1 Time Cycle 2 Time
Downflow Backwash
10
Minutes
Brine Draw/
Slow Rinse
60
Minutes
DF Fill First
Brine Tank
Fill
10
Minutes
Brine
Making
60
Minutes
Filter Backwash
10
Minutes
Rapid Rinse
10
Minutes
Regenerant
Flow
Cycle 3 Time Cycle 4 Time
Downflow
2nd
Backwash
10
Minutes
Rapid Rinse
12
Minutes
DF Fill First Backwash
10
Minutes
Brine Draw/
Slow Rinse
10
Minutes
Filter NA NA NA NA
Regenerant
Flow
Cycle 5 Time Cycle 6 Time
Downflow Brine Fill
12
Minutes
NA NA
DF Fill First
2nd
Backwash
5
Minutes
Rapid Rinse
10
Minutes
Filter NA NA NA NA
15. Auxiliary Relay Output
The next two displays are part of a series of settings used to
program the optional relay output. The first setting turns the
output On/Off during Regeneration only. The second turns the
output On during Service only, every time a set volume of water
used has accumulated.
MASTER PROGRAMMING GUIDE
continued
16. Timed Auxiliary Relay Output Window (Start & End
Time Setting, If Auxiliary Relay is Enabled)
This option setting consists of two displays. The first display
sets the turn-on time of the output, referenced to the start
of the first Regeneration Cycle. The second display sets the
output turn-off time, referenced again to the start of first
Regeneration Cycle.
Start Time: Anytime during Regeneration (Except Last Minute
of the Regeneration Time)
End Time: At start time, and anytime during the regeneration
cycle.
17. Chemical Pump Auxiliary Relay Output Window
This option setting consists of two displays. The first display
sets the volume of water flow at which the output turns On. The
second display sets the time of the output.
U.S. Range: 0 – 999 Gallons (1 – 999 Seconds)
Metric Range: 0.00 – 9.99 m
3
(1 – 999 Seconds)
1. Activate Output After Volume Set is Reached.
2. Use the Shift button to move one space to the left for each
number entered.
3. Use Up or Down buttons to adjust this value.
4. Press the Extra Cycle button.
18. Flow Meter Size (Default to Valve Type)
This program step sets the size of the flow meter.
1.2” Turbine
Generic Flow Meter
1. Use Up or Down buttons to adjust this value.
2. Press the Extra Cycle button.
FLOW METER:
1.2 TURBINE
12 • FLECK 7000 NXT Service Manual
