12 • FLECK 7000XTR Service Manual

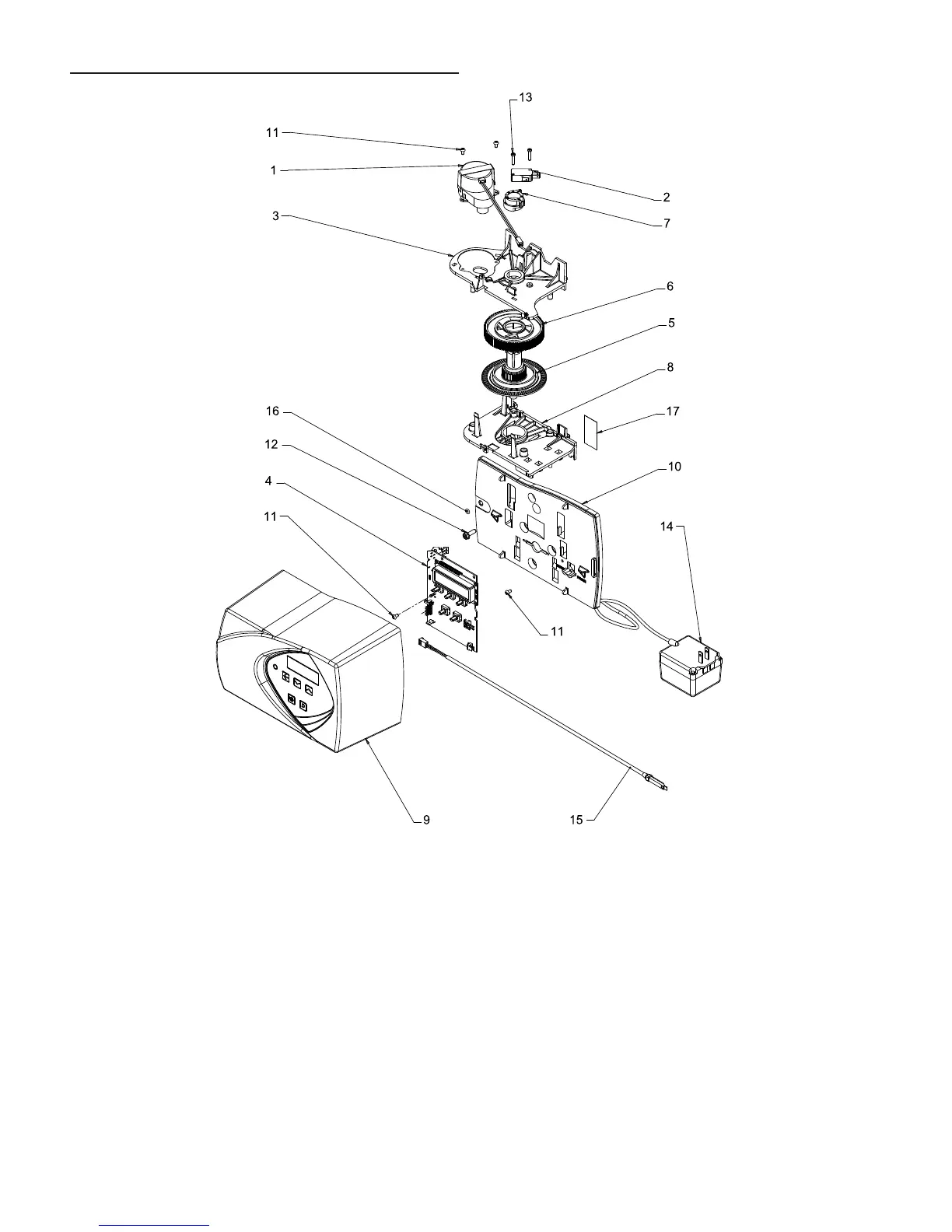

POWER HEAD ASSEMBLY
61501-7000XT REV A
Item No. QTY Part No. Description
1 ..............1 ...... 42349 ..............Motor, 24V, 2 RPM, 7000
2 ..............1 ...... 10218 ..............Switch, Micro
3 ..............1 ...... 40978 ..............Plate, Upper Support
4 ..............1 ...... 42356 ..............Circuit Board Assy, XTR7000
5 ..............1 ...... 40702 ..............Shaft, Encoder, 7000
6 ..............1 ...... 40703 ..............Gear, Main
7 ..............1 ...... 40704 ..............Cam, Brine, Downflow
8 ..............1 ...... 40979 ..............Plate, Lower Support
9 ..............1 ...... 61635-01 .........Cover Assy, 7000-II, Black
1 ...... 61634-01 .........Cover Assy, 7000-II, Gray
10 ............1 ...... 40980 ..............Backplate, 7000
11 ............4 ...... 13602 ..............Screw, Phil Rd Hd, 6-32 x
5/16
12 ............1 ...... 12473 ..............Screw, Hex Wsh, 10-24 x 5/8
13 ............2 ...... 11805 ..............Scerw, Rd Hd, 4-40 x 5/8
Type 1
14 ............1 ...... 40981 ..............Transformer, US 24V, 9.6VA,
7000
15 ............1 ...... 19791-01 .........Meter Cable Assy, Turbine/
SE
16 ............1 ...... 41122 ..............O-ring, -007
17 ............1 ...... 40960-03 .........Label, UL Nameplate, 7000,
US/24
Item No. QTY Part No. Description
